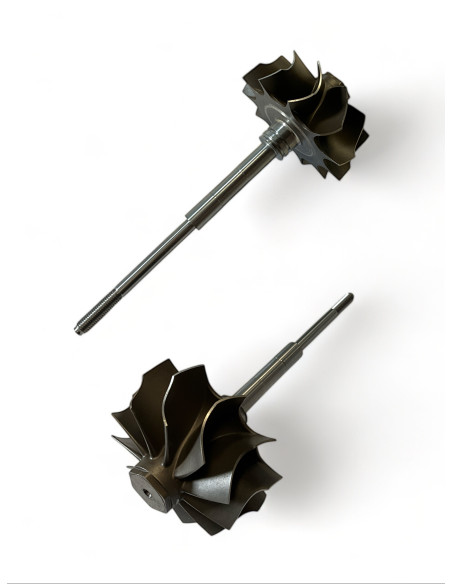

Shaft and wheel SW-G140
Shaft and wheel SW-G140

Shaft and wheel SW-G140

SW-G140
New
Last items in stock (3 Items)
€81.80
Tax included

451309-0002, 451309-0003, SW-G140

Shaft and wheel SW-G140 for turbos 408851-0001, 409080-0001, 409080-0002, 409080-0003, 409080-0004, 409080-0005, 409080-0009, 409080-0010, 409080-0011, 409200-0004.



SW-G140 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G140

SW-G140 - Alternative numbers

GHO (Garrett original part number): 451309-0002

GHO (Garrett original part number): 451309-0003

SW-G140 - Compatibility table

Shaft and wheel SW-G140 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettT04408851-0001--
GarrettT04409080-0001--
GarrettT04409080-0002--
GarrettT04409080-0003--
GarrettT04409080-0004--
GarrettT04409080-0005--
GarrettT04409080-0009--
GarrettT04409080-0010--
GarrettT04409080-0011--
GarrettT04409200-0004--
GarrettT04409200-0006--
GarrettT04409200-0007--
GarrettT04409200-0008--
GarrettT04409200-0010--
GarrettT04409200-0012--
GarrettT04409200-0014--
GarrettT04409200-0015--
GarrettT04409200-0016--
GarrettT04B21409220-0003--
GarrettT04B91409410-0002--
GarrettT04B91409410-0006--
GarrettT04E66-2452003-0001--
GarrettT04B69465124-0003--
GarrettT04B98465242-0001--
GarrettT04E66-2465283-0001--
GarrettT04E66-2465283-0002--
GarrettT04E66-2465283-0003--
GarrettT04B94465288-0003--
GarrettT04E66-2465443-0003--
GarrettT04B82465472-0002--
GarrettT04B82465472-0003--
GarrettT04B82465472-0004--
GarrettT04B82465472-0007--
GarrettT04B82465472-0008--
GarrettT04B82465472-0013--
GarrettT04E66-2465523-0001--
GarrettT04B465800-0008--
GarrettTB41466060-0001--
GarrettTW4104466210-0002--
GarrettT04E66-2466588-0002--
GarrettT04E66-2466588-0005--
GarrettT04E66-2466704-0203--
GarrettT04E66-2466742-0003--
GarrettT04E66-2466780-0001--
GarrettT04709730-0001--
GarrettT04709730-0002--
GarrettT04709730-0003--
GarrettT04709730-0004--
GarrettT04709730-0005--
GarrettT04709840-0005--
GarrettT04709840-0006--
GarrettT04709840-0007--
GarrettT04709840-0008--
GarrettT04709840-0009--
GarrettT04709840-0010--

SW-G140 - Part Properties

Blades (Shaft blades count): 11

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 74.5

Exducer Diameter B (Exducer Diameter B): 64.7

Tip Height C (Tip Height C): 11.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 10.2

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 6.3

Shaft Length (mm) (Shaft Length (mm)): 134.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): T3/T04

408851-0001, 409080-0001, 409080-0002, 409080-0003, 409080-0004, 409080-0005, 409080-0009, 409080-0010, 409080-0011, 409200-0004, 409200-0006, 409200-0007, 409200-0008, 409200-0010, 409200-0012, 409200-0014, 409200-0015, 409200-0016, 409220-0003, 409410-0002, 409410-0006, 452003-0001, 465124-0003, 465242-0001, 465283-0001, 465283-0002, 465283-0003, 465288-0003, 465443-0003, 465472-0002, 465472-0003, 465472-0004, 465472-0007, 465472-0008, 465472-0013, 465523-0001, 465800-0008, 466060-0001, 466210-0002, 466588-0002, 466588-0005, 466704-0203, 466742-0003, 466780-0001, 709730-0001, 709730-0002, 709730-0003, 709730-0004, 709730-0005, 709840-0005, 709840-0006, 709840-0007, 709840-0008, 709840-0009, 709840-0010

Data updated: 2024-10-29 18:55:54
