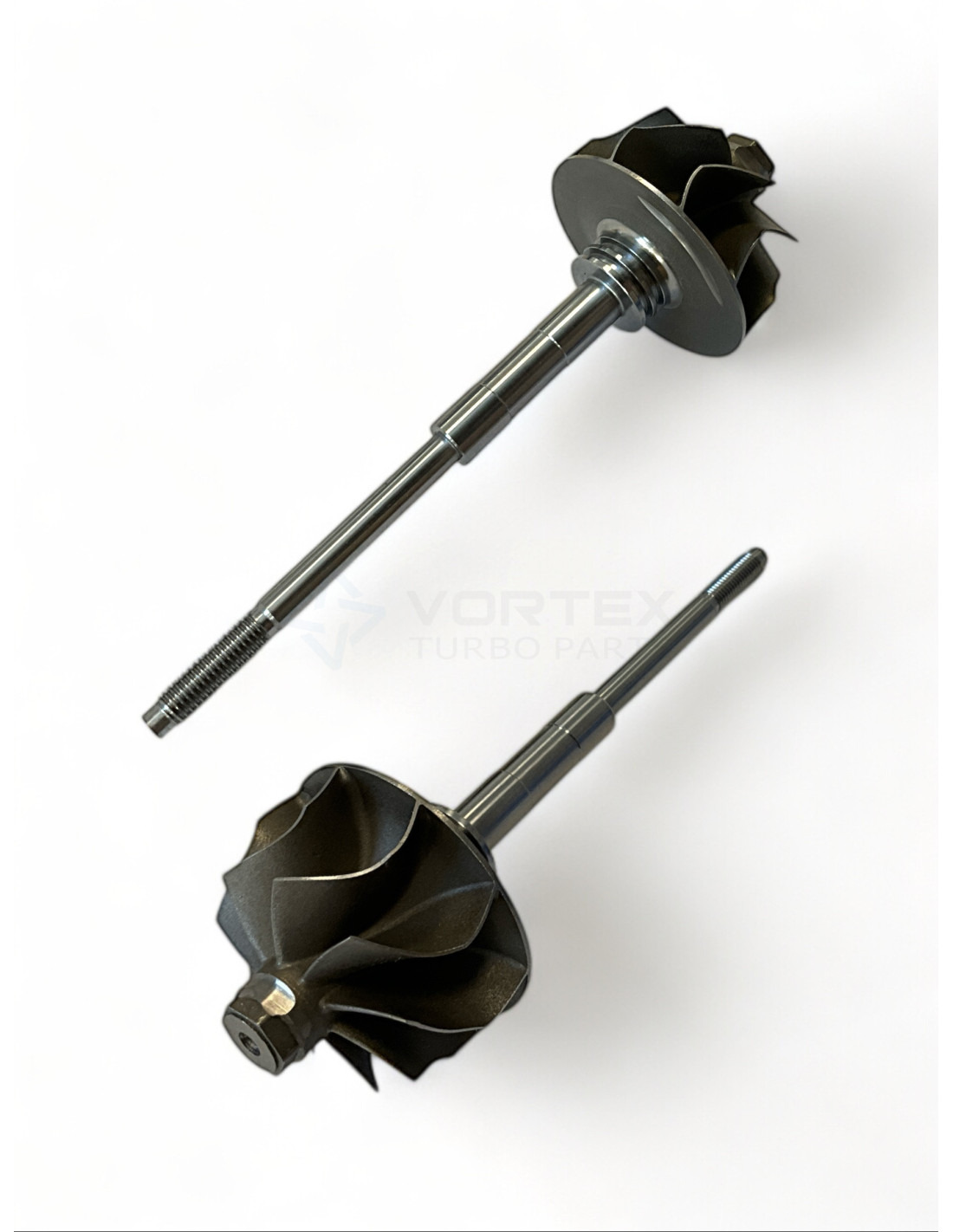

Shaft and wheel SW-G148
SW-G148
New
In Stock
(9 Items)
€37.75
Tax included
Shaft and wheel SW-G148 for turbos 821942-0007, 821942-0009, 821942-0010, 821942-0011, 883861-0001, 883861-0002.
See below for more info.
SW-G148 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-G148
SW-G148 - Compatibility table
| Shaft and wheel SW-G148 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | GT1549S | 821942-0007 | -- |
| Garrett | GT1549S | 821942-0009 | -- |
| Garrett | GT1549S | 821942-0010 | -- |
| Garrett | GT1549S | 821942-0011 | -- |
| Garrett | GT1549S | 883861-0001 | -- |
| Garrett | GT1549S | 883861-0002 | -- |
SW-G148 - Part Properties
Blades (Shaft blades count): 9
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 41.0
Exducer Diameter B (Exducer Diameter B): 35.2
Tip Height C (Tip Height C): 8.7
Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1
Shaft Length (mm) (Shaft Length (mm)): 91.5
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Rotation (Rotation): Reverse
Model (Model): GT15-25
Data updated: 2023-01-17 16:58:42
