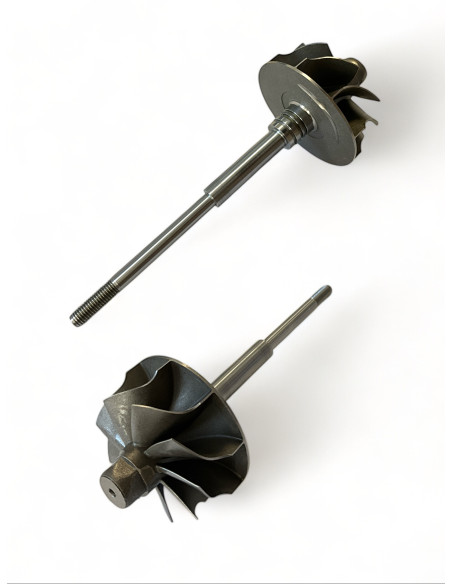

Shaft and wheel SW-B019R

SW-B019R
New
In Stock (16 Items)
€84.94
Tax included

Shaft and wheel SW-B019R for turbos 10009700130(B03), 10009700131(B03), 10009700210(B03), 10009700268(B03), 10009700284(B03), 10009700324(B03), 10009700366(B03), 10009700431(B03), 10009700451(B03).



SW-B019R - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-B019R

SW-B019R - Compatibility table

Shaft and wheel SW-B019R - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
BorgWarnerB0310009700130(B03)--
BorgWarnerB0310009700131(B03)--
BorgWarnerB01+ B0310009700210(B03)--
BorgWarnerB01+ B0310009700268(B03)--
BorgWarnerB01+ B0310009700284(B03)--
BorgWarnerB01+ B0310009700324(B03)--
BorgWarnerB01+ B0310009700366(B03)--
BorgWarnerB01+ B0310009700431(B03)--
BorgWarnerB01+ B0310009700451(B03)--

SW-B019R - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 53.0

Exducer Diameter B (Exducer Diameter B): 47.0

Tip Height C (Tip Height C): 7.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 8.5

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.5

Shaft Length (mm) (Shaft Length (mm)): 108.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): B03

10009700451(B03), 10009700431(B03), 10009700366(B03), 10009700324(B03), 10009700284(B03), 10009700268(B03), 10009700210(B03), 10009700131(B03), 10009700130(B03), 10009700130 (B03), 10009700131 (B03), 10009700210 (B03), 10009700268 (B03), 10009700284 (B03), 10009700324 (B03), 10009700366 (B03), 10009700431 (B03), 10009700451 (B03)

Data updated: 2025-02-13 18:00:41
