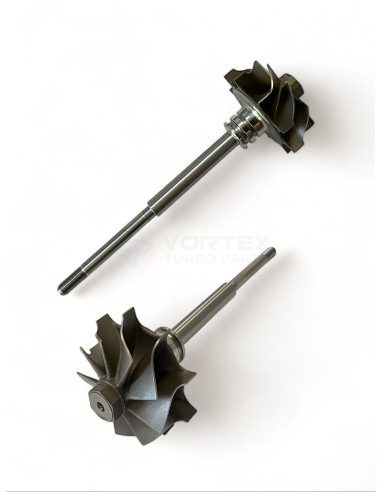

Shaft and wheel SW-T009
SW-T009
New
1100-016-300, SW-T009, TB4287, TW-406
Shaft and wheel SW-T009 for turbos 17201-54090, 17201-64040.
See below for more info.
SW-T009 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-T009
SW-T009 - Alternative numbers
Jrone (Jrone): 1100-016-300
TB (TB): TB4287
KD (KODE): TW-406
SW-T009 - Compatibility table
| Shaft and wheel SW-T009 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Toyota | CT9 | 17201-54090 | -- |
| Toyota | CT9 | 17201-64040 | -- |

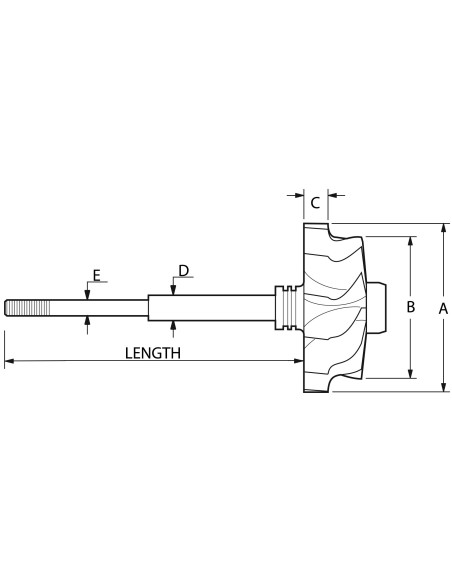

SW-T009 - Part Properties
Blades (Shaft blades count): 9
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 45.7
Exducer Diameter B (Exducer Diameter B): 38.0
Tip Height C (Tip Height C): 5.7
Journal Bearing Diameter D (Journal Bearing Diameter D): 7.5
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1
Shaft Length (mm) (Shaft Length (mm)): 95.0
Back (Back): Open
Piston Ring Type (Piston Ring Type): Single
Model (Model): CT9
Data updated: 2022-12-22 15:25:10
