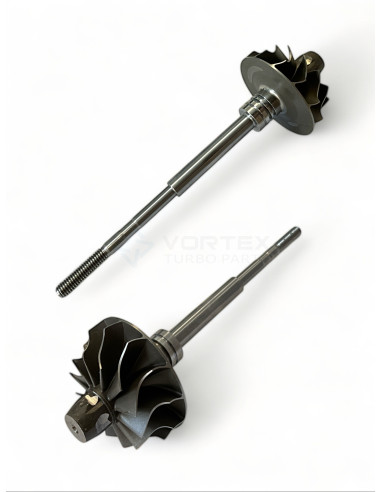

Shaft and wheel SW-B009
SW-B009
New
Please login to see prices and stock
Shaft length - 130mm
Shaft and wheel SW-B009 for turbos 11509700000, 11509700008, 11509700012.
SW-B009 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-B009
SW-B009 - Compatibility table
| Shaft and wheel SW-B009 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| BorgWarner | (R2S) B1UG | 11509700000 | -- |
| BorgWarner | (R2S) B1UG | 11509700008 | -- |
| BorgWarner | (R2S) B1UG | 11509700012 | -- |
SW-B009 - Part Properties
Blades (Shaft blades count): 12
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 50.0
Exducer Diameter B (Exducer Diameter B): 40.0
Tip Height C (Tip Height C): 7.5
Journal Bearing Diameter D (Journal Bearing Diameter D): 8.6
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 6.0
Shaft Length (mm) (Shaft Length (mm)): 130.0
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Model (Model): B1
11509700012, 11509700008, 11509700000, 1150 970 0000, 1150 970 0008, 1150 970 0012
Data updated: 2025-08-27 15:45:34
