Shaft and wheel SW-G023
Shaft and wheel SW-G023
Shaft and wheel SW-G023
Shaft and wheel SW-G023

Shaft and wheel SW-G023

SW-G023
New
Last items in stock (2 Items)
€45.62
Tax included

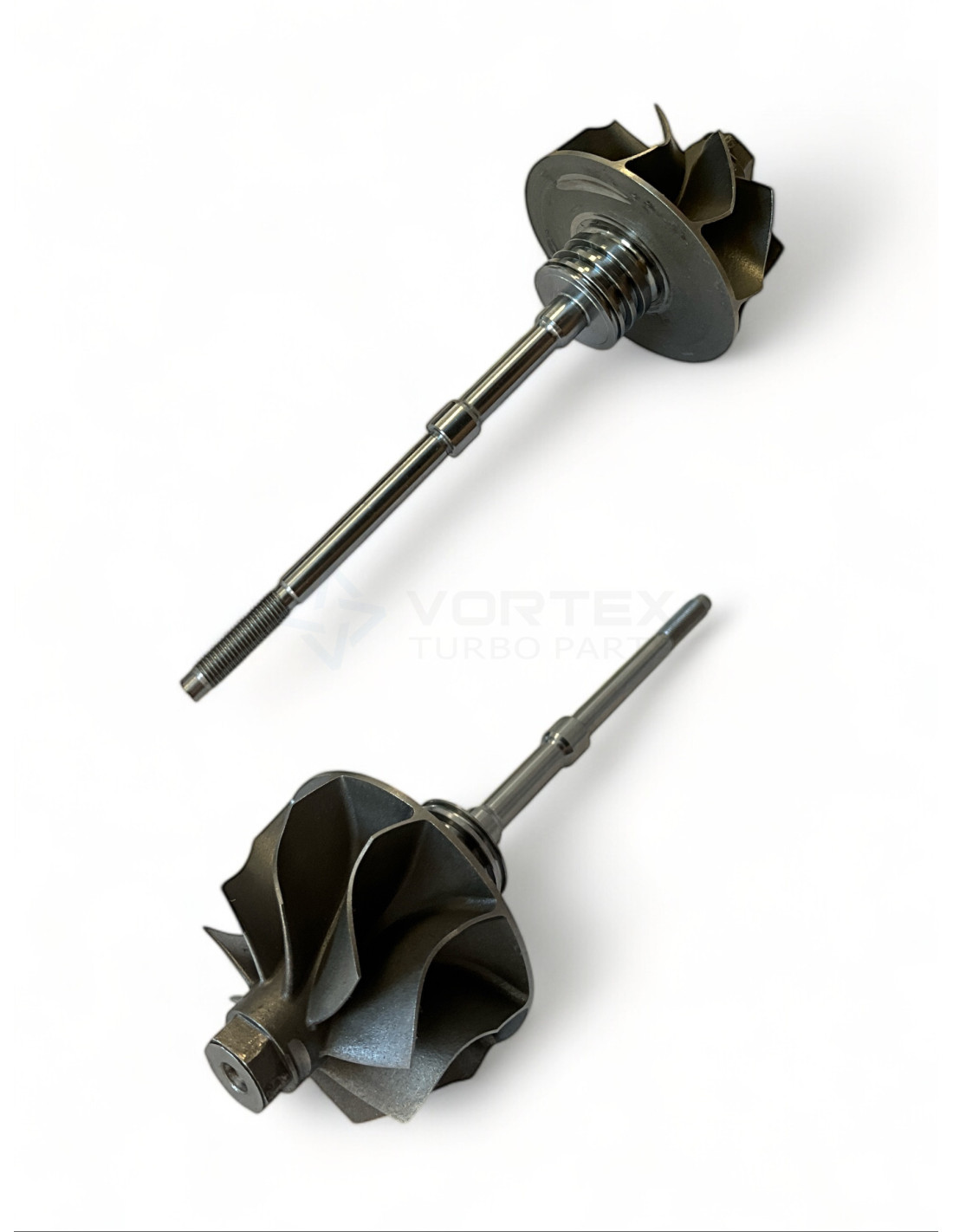

Shaft and wheel SW-G023 for turbos 795680-0003.



SW-G023 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G023

SW-G023 - Compatibility table

Shaft and wheel SW-G023 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGTC1444VZ795680-000331312713

SW-G023 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 40.0

Exducer Diameter B (Exducer Diameter B): 33.0

Tip Height C (Tip Height C): 7.3

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0

Shaft Length (mm) (Shaft Length (mm)): 80.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT14

31312713, 795680-0003

Data updated: 2024-02-19 13:06:19
