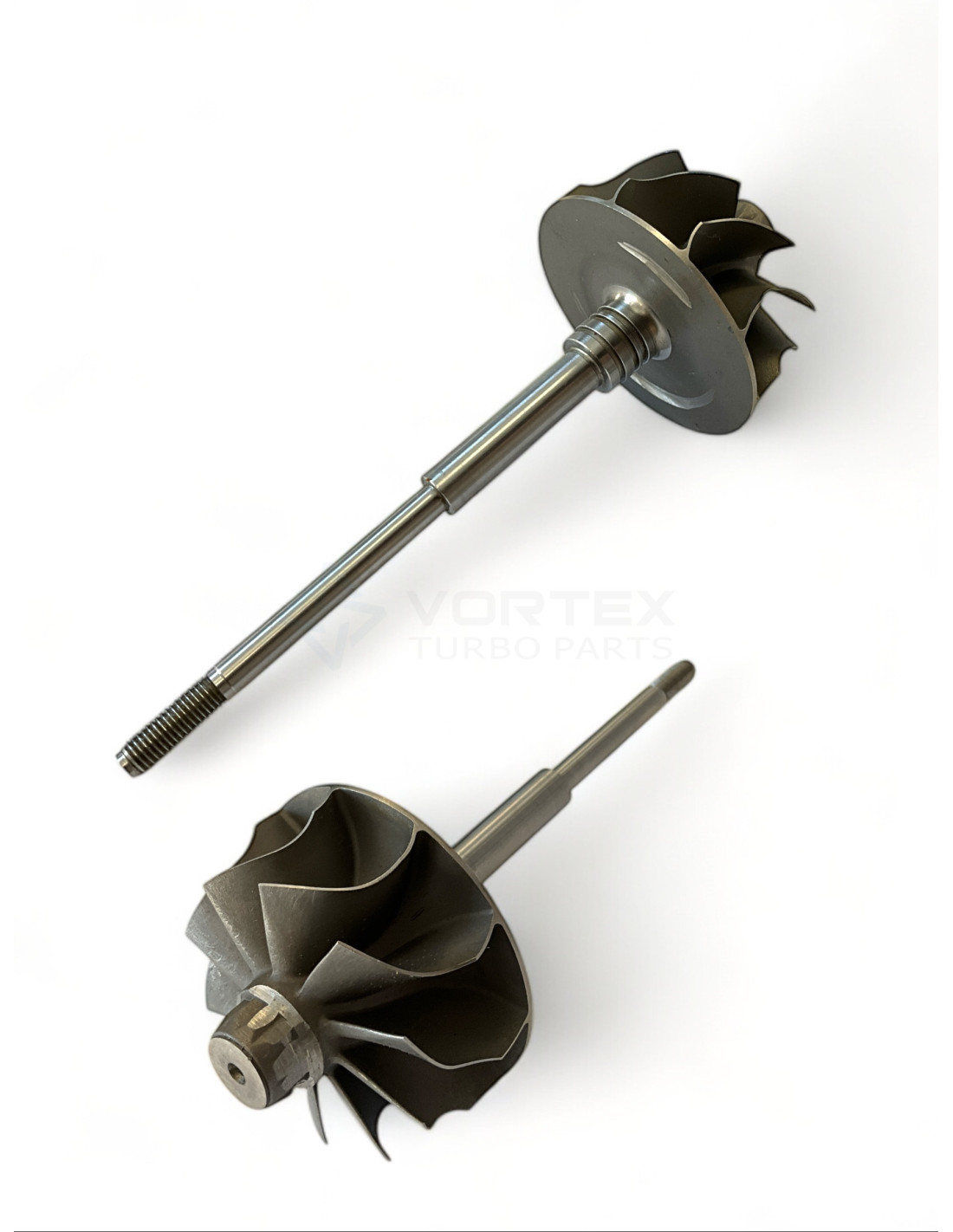

Shaft and wheel SW-B024
Shaft and wheel SW-B024
Shaft and wheel SW-B024
Shaft and wheel SW-B024

Shaft and wheel SW-B024

SW-B024
New
Last items in stock (2 Items)
€84.94
Tax included

Shaft and wheel SW-B024 for turbos 18559700024, 18559700025, 18559700029, 18559700030, 18559700041, 18559700042, 18559700043, 18559700062, 18559700064, 18559700093.



SW-B024 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-B024

SW-B024 - Compatibility table

Shaft and wheel SW-B024 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
BorgWarnerB03G18559700024--
BorgWarnerB03G18559700025--
BorgWarnerB0318559700029--
BorgWarnerB03G18559700030--
BorgWarnerB03G18559700041--
BorgWarnerB03G18559700042--
BorgWarnerB03G18559700043--
BorgWarnerB03G18559700062--
BorgWarnerB0318559700064--
BorgWarnerB0318559700093--
BorgWarnerB0318559700095--
BorgWarnerB0318559700098--
BorgWarnerB0318559700100--
BorgWarnerB0318559700115--
BorgWarnerB0318559700117--

SW-B024 - Part Properties

Blades (Shaft blades count): 10

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 55.0

Exducer Diameter B (Exducer Diameter B): 49.0

Tip Height C (Tip Height C): 8.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 8.5

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.5

Shaft Length (mm) (Shaft Length (mm)): 108.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Rotation (Rotation): Reverse

Model (Model): B03

18559700024, 18559700025, 18559700029, 18559700030, 18559700041, 18559700042, 18559700043, 18559700062, 18559700064, 18559700093, 18559700095, 18559700098, 18559700100, 18559700115, 18559700117

Data updated: 2025-02-12 11:28:40
