Shaft and wheel SW-G005
Shaft and wheel SW-G005
Shaft and wheel SW-G005
Shaft and wheel SW-G005

Shaft and wheel SW-G005

SW-G005
New
In Stock (5 Items)
€40.90
Tax included

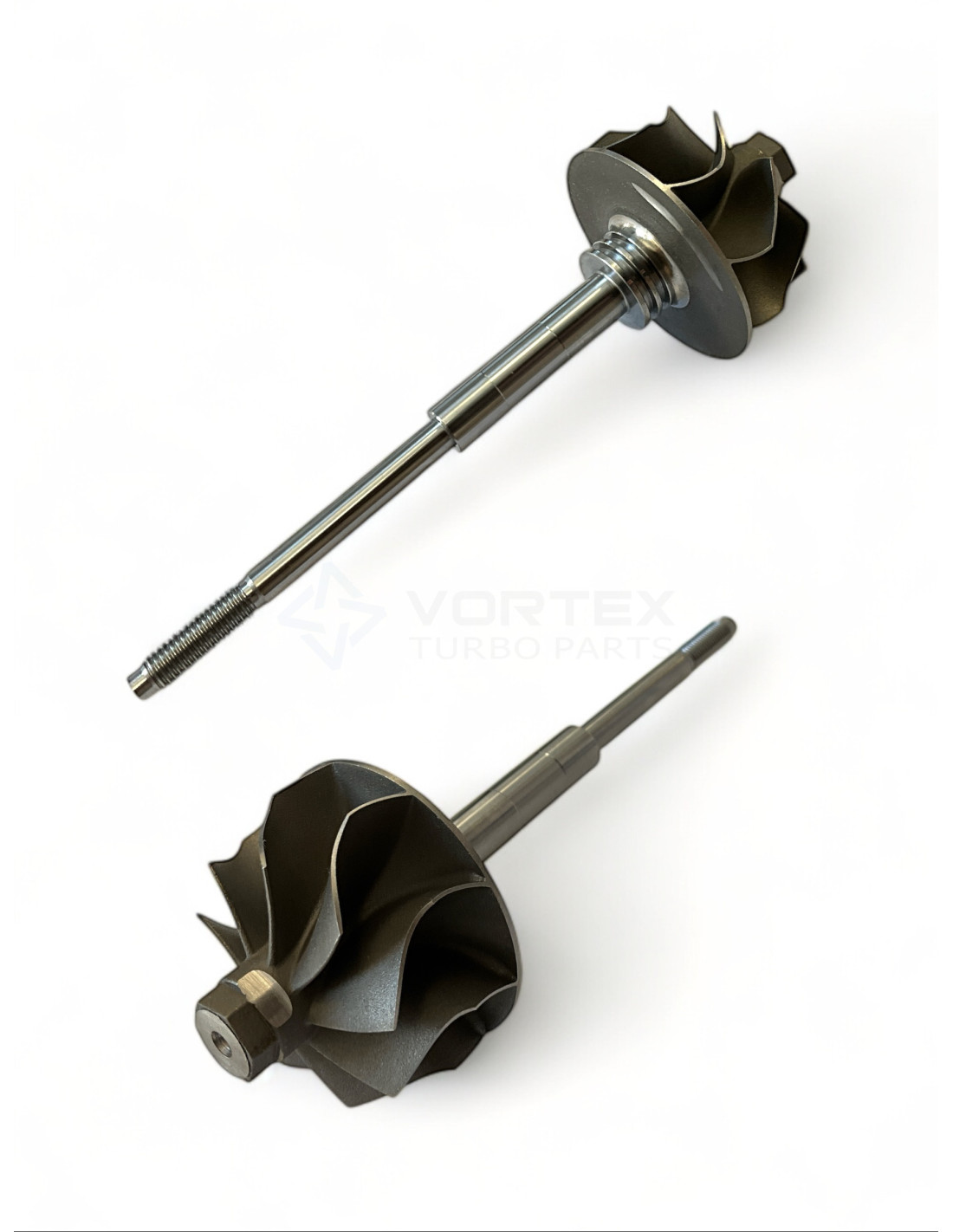

Shaft and wheel SW-G005 for turbos 832636-0003(GT1549S), 832637-0003(GT1549S).



SW-G005 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G005

SW-G005 - Compatibility table

Shaft and wheel SW-G005 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1549S832636-0003(GT1549S)--
GarrettGT1549S832637-0003(GT1549S)--

SW-G005 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 41.0

Exducer Diameter B (Exducer Diameter B): 35.3

Tip Height C (Tip Height C): 8.8

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

832636-0003, 832637-0003

Data updated: 2024-09-11 21:44:18
