Shaft and wheel SW-B025
SW-B025
New
Please login to see prices and stock

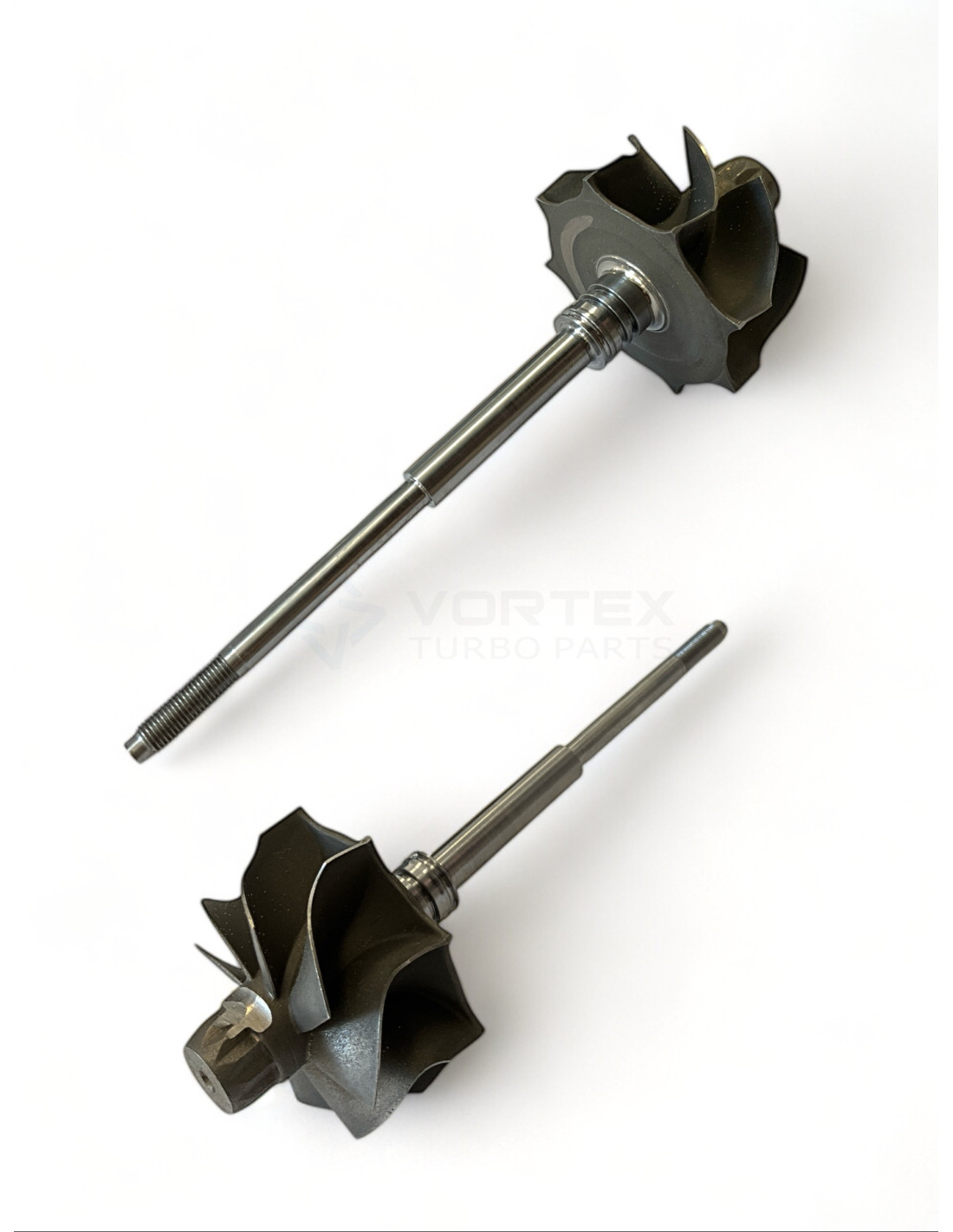

Shaft and wheel SW-B025 for turbos 16399700010, 16399700013, 16399700016, 16399700023, 16399700028.
SW-B025 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-B025
SW-B025 - Compatibility table
| Shaft and wheel SW-B025 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| BorgWarner | B01 | 16399700010 | -- |
| BorgWarner | B01 | 16399700013 | -- |
| BorgWarner | B01 | 16399700016 | -- |
| BorgWarner | B01 | 16399700023 | -- |
| BorgWarner | B01 | 16399700028 | -- |
SW-B025 - Part Properties
Blades (Shaft blades count): 8
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 39.1
Exducer Diameter B (Exducer Diameter B): 34.7
Tip Height C (Tip Height C): 6.1
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.1
Shaft Length (mm) (Shaft Length (mm)): 83.5
Back (Back): Open
Piston Ring Type (Piston Ring Type): Twin
Model (Model): B01
16399700010, 16399700013, 16399700016, 16399700023, 16399700028
Data updated: 2025-08-27 14:56:41
