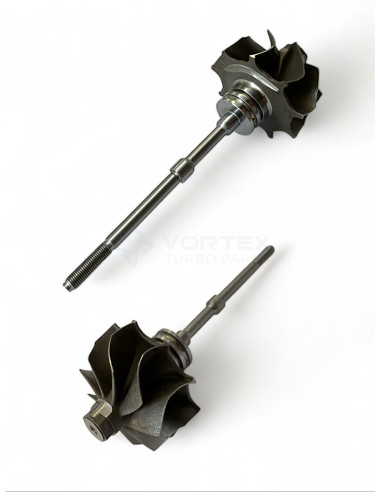

Shaft and wheel SW-G033
Shaft and wheel SW-G033
Shaft and wheel SW-G033
Shaft and wheel SW-G033

Shaft and wheel SW-G033

SW-G033
New
Last items in stock (4 Items)
€44.04
Tax included

Shaft and wheel SW-G033 for turbos 799502-0001, 799502-0002, 810944-0004, 810944-0005, 810944-0006, 810944-0009, 810944-0011, 811311-0001, 811311-0005, 811311-0009.



SW-G033 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G033

SW-G033 - Compatibility table

Shaft and wheel SW-G033 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettMGT1446Z799502-000155231115
GarrettMGT1446Z799502-000255231115
GarrettGT1446GLSZ810944-0004--
GarrettGT1446GLSZ810944-0005--
GarrettGT1446GLSZ810944-0006--
GarrettGT1446GLSZ810944-0009--
GarrettGT1446GLSZ810944-0011--
GarrettMGT1446Z811311-0001811311-0001, 811311-0002
GarrettMGT1446Z811311-0005811311-0005
GarrettMGT1446Z811311-0009811311-0009
GarrettMGT1446Z811311-0011811311-0011
GarrettMGT1446LSZ812812-0006--
GarrettMGT1446SZ814999-0001814999-0001
GarrettMGT1446SZ814999-0002814999-0002
GarrettMGT1446SZ814999-0003814999-0003
GarrettMGT1446SZ814999-0004814999-0004
GarrettMGT1446LSZ815000-0003--

SW-G033 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 39.0

Exducer Diameter B (Exducer Diameter B): 34.0

Tip Height C (Tip Height C): 8.1

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0

Shaft Length (mm) (Shaft Length (mm)): 80.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT14

55231115, 799502-0001, 55231115, 799502-0002, 810944-0004, 810944-0005, 810944-0006, 810944-0009, 810944-0011, 811311-0001, 811311-0002, 811311-0005, 811311-0009, 811311-0011, 812812-0006, 814999-0001, 814999-0002, 814999-0003, 814999-0004, 815000-0003

Data updated: 2025-02-19 16:29:09
