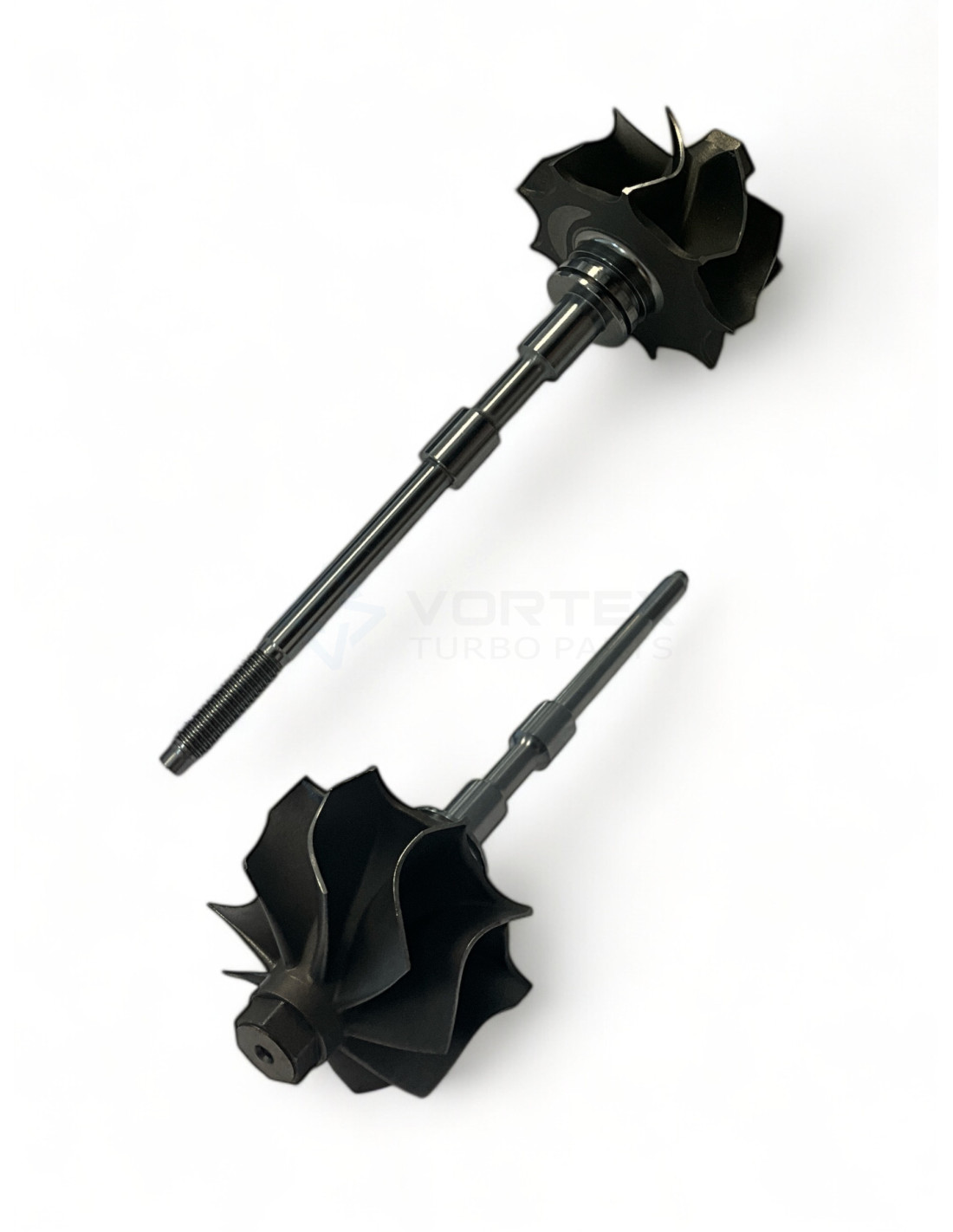

Shaft and wheel SW-G158
Shaft and wheel SW-G158
Shaft and wheel SW-G158
Shaft and wheel SW-G158

Shaft and wheel SW-G158

SW-G158
New
In Stock (7 Items)
€31.46
Tax included

Shaft and wheel SW-G158 for turbos 717383-0002, 717384-0002, 724495-0002, 724495-0004, 724496-0002, 724496-0004, 729853-0001.



SW-G158 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G158

SW-G158 - Compatibility table

Shaft and wheel SW-G158 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1749B717383-0002--
GarrettGT174717384-0002--
GarrettGT174724495-0002--
GarrettGT17724495-0004--
GarrettGT174724496-0002--
GarrettGT17724496-0004--
GarrettGT1749V729853-0001--

SW-G158 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 42.5

Exducer Diameter B (Exducer Diameter B): 37.5

Tip Height C (Tip Height C): 6.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

717383-0002, 717384-0002, 724495-0002, 724495-0004, 724496-0002, 724496-0004, 729853-0001

Data updated: 2024-02-19 10:36:10
