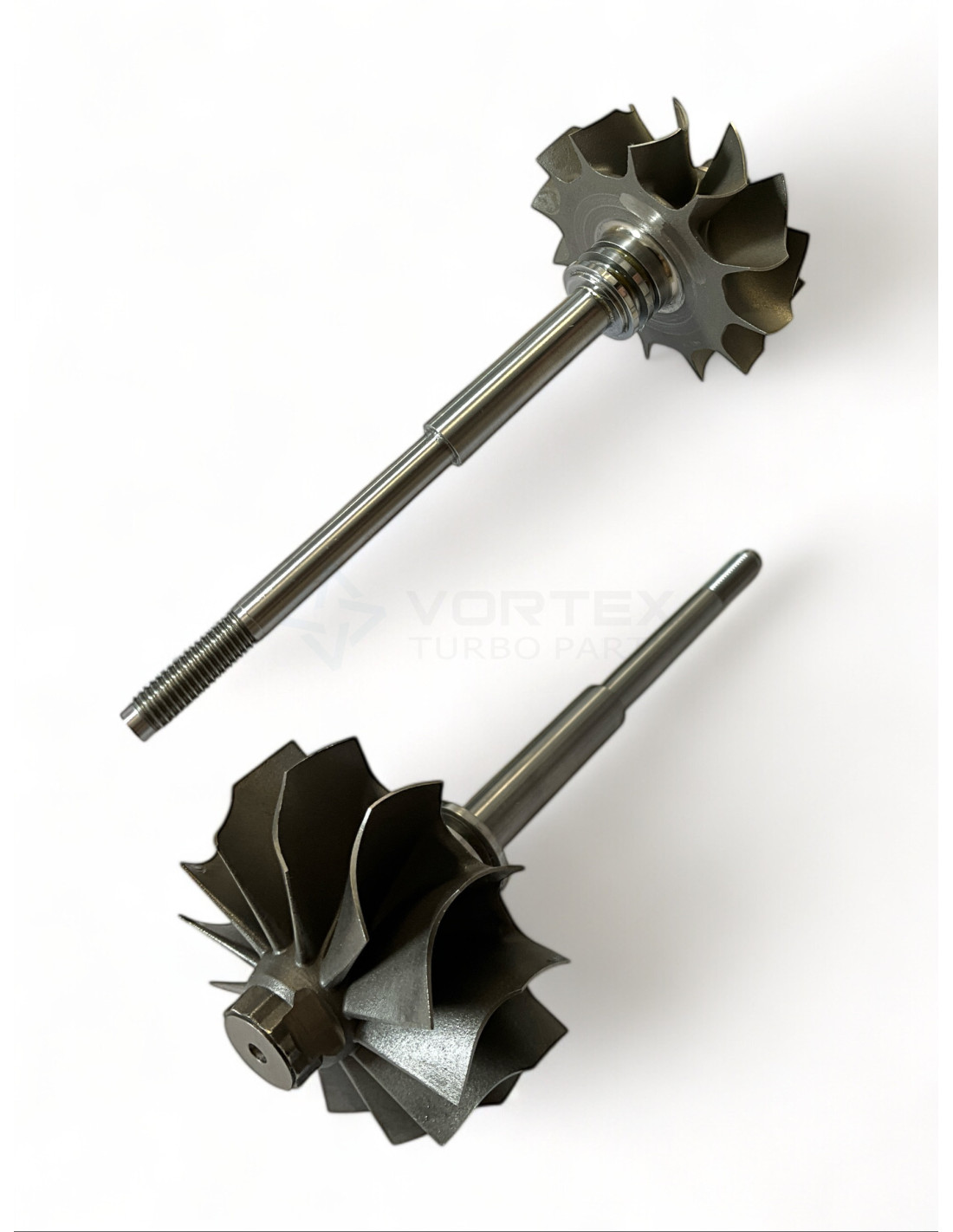

Shaft and wheel SW-M017
Shaft and wheel SW-M017

Shaft and wheel SW-M017

SW-M017
New
In Stock (5 Items)
€72.36
Tax included

Shaft and wheel SW-M017 for turbos 49178-01010, 49178-01030, 49178-01400, 49178-01410, 49178-01420, 49178-01450, 49178-01460, 49178-01470, 49178-01750, 49178-01760.



SW-M017 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-M017

SW-M017 - Compatibility table

Shaft and wheel SW-M017 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
MitsubishiTD0449178-01010--
MitsubishiTD05H49178-01030--
MitsubishiTD0549178-01400--
MitsubishiTD05H49178-01410--
MitsubishiTD0549178-01420--
MitsubishiTD0549178-01450--
MitsubishiTD0549178-01460--
MitsubishiTD0549178-01470--
MitsubishiTD0549178-01750--
MitsubishiTD0549178-01760--
MitsubishiTD0549178-02123--
MitsubishiTD0549178-02130--
MitsubishiTD0549178-02135--
MitsubishiTD0549178-02136--
MitsubishiTD0549178-02150--
MitsubishiTD0549178-02155--
MitsubishiTD0549178-02170--
MitsubishiTD0549178-02190--
MitsubishiTD0549178-02300--
MitsubishiTD0549178-02315--
MitsubishiTD0549178-02325--
MitsubishiTD0549178-02335--
MitsubishiTD0549178-03200--
MitsubishiTD0549178-04310--
MitsubishiTD0549178-04330--
MitsubishiTD0549178-04340--
MitsubishiTD0549178-04400--
MitsubishiTD0549178-04410--
MitsubishiTD0549178-04500--
MitsubishiTD0549178-04510--
MitsubishiTD0549178-06200--
MitsubishiTD0549178-06290--
MitsubishiTD05H49178-06300--
MitsubishiTD05H-16G49178-06310--
MitsubishiTD0549178-06380--
MitsubishiTD0549178-06390--
MitsubishiTD05H-12B-649178-07200--
MitsubishiTD0549178-91450--

SW-M017 - Part Properties

Blades (Shaft blades count): 12

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 56.0

Exducer Diameter B (Exducer Diameter B): 49.0

Tip Height C (Tip Height C): 9.2

Journal Bearing Diameter D (Journal Bearing Diameter D): 9.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 6.5

Shaft Length (mm) (Shaft Length (mm)): 106.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): TD05

49178-01010, 49178-01030, 49178-01400, 49178-01410, 49178-01420, 49178-01450, 49178-01460, 49178-01470, 49178-01750, 49178-01760, 49178-02123, 49178-02130, 49178-02135, 49178-02136, 49178-02150, 49178-02155, 49178-02170, 49178-02190, 49178-02300, 49178-02315, 49178-02325, 49178-02335, 49178-03200, 49178-04310, 49178-04330, 49178-04340, 49178-04400, 49178-04410, 49178-04500, 49178-04510, 49178-06200, 49178-06290, 49178-06300, 49178-06310, 49178-06380, 49178-06390, 49178-07200, 49178-91450

Data updated: 2024-12-18 14:55:41
