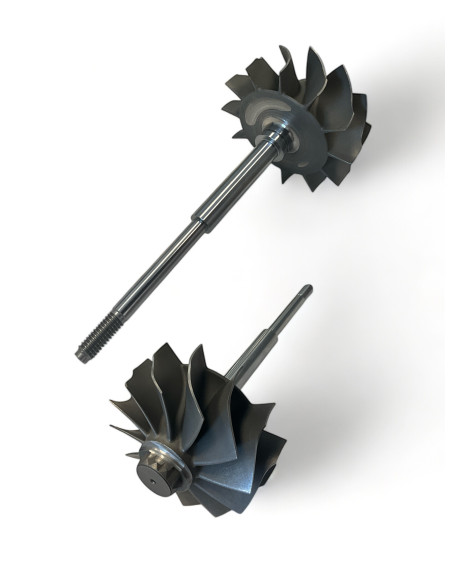

Shaft and wheel SW-H017
SW-H017
New
Please login to see prices and stock
3535161, SW-H017
Shaft and wheel SW-H017 for turbos 3538496, 3591167, 3591985.
SW-H017 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-H017
SW-H017 - Alternative numbers
HSP (Holset original part number): 3535161
SW-H017 - Compatibility table
| Shaft and wheel SW-H017 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Holset | HX50 | 3538496 | -- |
| Holset | HX50 | 3591167 | -- |
| Holset | HX50 | 3591985 | -- |
SW-H017 - Part Properties
Blades (Shaft blades count): 12
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 86.0
Exducer Diameter B (Exducer Diameter B): 80.0
Tip Height C (Tip Height C): 13.1
Journal Bearing Diameter D (Journal Bearing Diameter D): 12.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 8.0
Shaft Length (mm) (Shaft Length (mm)): 144.0
Back (Back): Open
Piston Ring Type (Piston Ring Type): Single
Model (Model): HX50
3538496, 3591167, 3591985
Data updated: 2025-09-02 16:38:30
