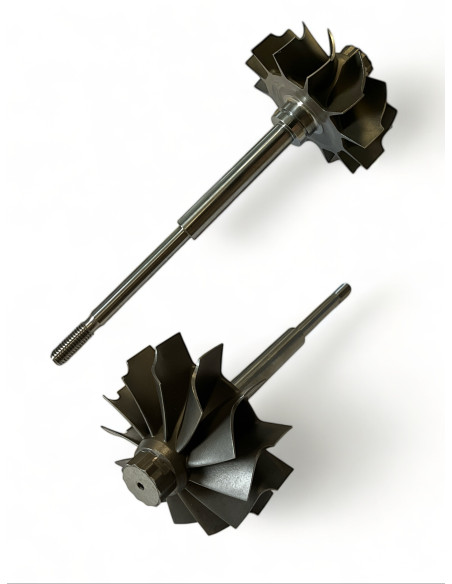

Shaft and wheel SW-H003
SW-H003
New
Last items in stock
(2 Items)
€69.21
Tax included
3522880, SW-H003
Shaft and wheel SW-H003 for turbos 2837438, 3523360, 3524034, 3525038, 3525127, 3525488, 3525710, 3525810, 3526368, 3527370.
See below for more info.
SW-H003 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-H003
SW-H003 - Alternative numbers
HSP (Holset original part number): 3522880
SW-H003 - Compatibility table
| Shaft and wheel SW-H003 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Holset | HX40 | 2837438 | -- |
| Holset | HX40 | 3523360 | -- |
| Holset | H1E | 3524034 | -- |
| Holset | HX40 | 3525038 | -- |
| Holset | HX40 | 3525127 | -- |
| Holset | H1E | 3525488 | -- |
| Holset | HX40 | 3525710 | -- |
| Holset | HX40 | 3525810 | -- |
| Holset | H1E | 3526368 | -- |
| Holset | HX40 | 3527370 | -- |
| Holset | HX40 | 3528568 | -- |
| Holset | HX40 | 3528775 | -- |
| Holset | H1E | 3528777 | -- |
| Holset | HX40 | 3528779 | -- |
| Holset | HX40 | 3528785 | -- |
| Holset | HX40 | 3528793 | -- |
| Holset | HX40 | 3530528 | -- |
| Holset | HX40 | 3530628 | -- |
| Holset | HX40 | 3531665 | -- |
| Holset | HX40 | 3531721 | -- |
| Holset | HX40 | 3532065 | -- |
| Holset | HX40 | 3532067 | -- |
| Holset | HX40 | 3532204 | -- |
| Holset | HX40 | 3532516 | -- |
| Holset | HX40 | 3532748 | -- |
| Holset | HX40 | 3533477 | -- |
| Holset | HX40 | 3533964 | -- |
| Holset | HX40 | 3535749 | -- |
| Holset | HX40 | 3536156 | -- |
| Holset | HX40 | 3536359 | -- |
| Holset | HX40 | 3536528 | -- |
| Holset | HX40 | 3536531 | -- |
| Holset | HX40 | 3536719 | -- |
| Holset | HX40 | 3538099 | -- |
| Holset | HX40 | 3539148 | -- |
| Holset | HX40 | 3539502 | -- |
| Holset | HX40 | 3539506 | -- |
| Holset | HX40 | 3539556 | -- |
| Holset | HX40 | 3580177 | -- |
| Holset | HX40 | 3580178 | -- |
| Holset | HX40 | 3590898 | -- |
| Holset | HX40 | 3596929 | -- |
| Holset | HX40 | 3596987 | -- |
| Holset | HX40 | 3599465 | -- |
| Holset | HX40 | 3599467 | -- |
| Holset | HX40 | 3773731 | -- |
| Holset | HX40 | 4039264 | -- |
| Holset | HX40 | 4040250 | -- |
| Holset | HX40 | 4047913 | -- |
| Holset | HX40 | 4047914 | -- |
SW-H003 - Part Properties
Blades (Shaft blades count): 12
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 76.0
Exducer Diameter B (Exducer Diameter B): 67.0
Tip Height C (Tip Height C): 12.3
Journal Bearing Diameter D (Journal Bearing Diameter D): 11.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 7.0
Shaft Length (mm) (Shaft Length (mm)): 140.0
Back (Back): Open
Piston Ring Type (Piston Ring Type): Single
Model (Model): H1
2837438, 3523360, 3524034, 3525038, 3525127, 3525488, 3525710, 3525810, 3526368, 3527370, 3528568, 3528775, 3528777, 3528779, 3528785, 3528793, 3530528, 3530628, 3531665, 3531721, 3532065, 3532067, 3532204, 3532516, 3532748, 3533477, 3533964, 3535749, 3536156, 3536359, 3536528, 3536531, 3536719, 3538099, 3539148, 3539502, 3539506, 3539556, 3580177, 3580178, 3590898, 3596929, 3596987, 3599465, 3599467, 3773731, 4039264, 4040250, 4047913, 4047914
Data updated: 2023-01-26 17:58:00
