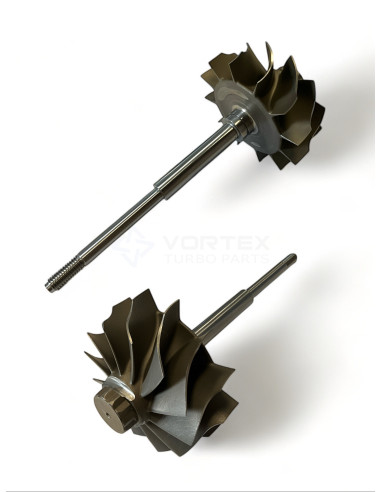

Shaft and wheel SW-H005
SW-H005
New
Last items in stock
(3 Items)
€100.67
Tax included
3522773, SW-H005
Shaft and wheel SW-H005 for turbos 3522064, 3522131, 3522950, 3522951, 3523134, 3523228, 3523410, 3524824, 3524825, 3525237.
See below for more info.
SW-H005 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-H005
SW-H005 - Alternative numbers
HSP (Holset original part number): 3522773
SW-H005 - Compatibility table
| Shaft and wheel SW-H005 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Holset | H2D | 3522064 | -- |
| Holset | H2C | 3522131 | -- |
| Holset | H2D | 3522950 | -- |
| Holset | H2C | 3522951 | -- |
| Holset | H2C | 3523134 | -- |
| Holset | H2C | 3523228 | -- |
| Holset | H2D | 3523410 | -- |
| Holset | H2C | 3524824 | -- |
| Holset | H2C | 3524825 | -- |
| Holset | H2D | 3525237 | -- |
| Holset | H2C | 3525278 | -- |
| Holset | H2C | 3525408 | -- |
| Holset | H2D | 3525517 | -- |
| Holset | H2D | 3525518 | -- |
| Holset | H2D | 3525743 | -- |
| Holset | H2D | 3526008 | -- |
| Holset | H2D | 3526009 | -- |
| Holset | H2D | 3526401 | -- |
| Holset | H2D | 3526963 | -- |
| Holset | H2D | 3526964 | -- |
| Holset | H2D | 3527017 | -- |
| Holset | H2D | 3527997 | -- |
| Holset | H2D | 3527998 | -- |
| Holset | H2D | 3528016 | -- |
| Holset | H2D | 3528017 | -- |
| Holset | H2D | 3528018 | -- |
| Holset | H2D | 3528650 | -- |
| Holset | H2D | 3529190 | -- |
| Holset | H2D | 3529236 | -- |
| Holset | H2D | 3531652 | -- |
| Holset | H2D | 3531772 | -- |
| Holset | H2D | 3531836 | -- |
| Holset | H2D | 3532476 | -- |
| Holset | H2D | 3533086 | -- |
| Holset | H2D | 3533088 | -- |
| Holset | H2D | 3536271 | -- |
| Holset | H2D | 3545915 | -- |

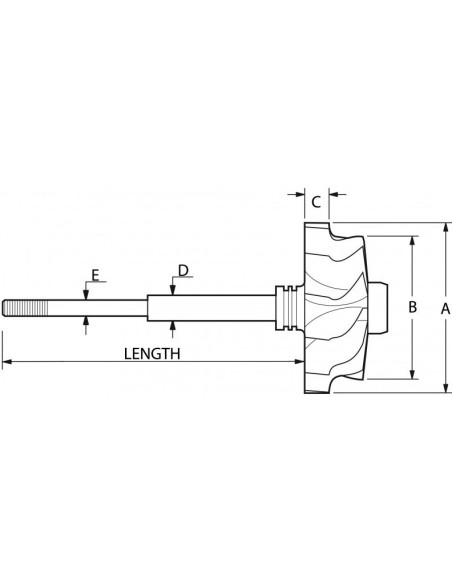

SW-H005 - Part Properties
Blades (Shaft blades count): 11
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 86.0
Exducer Diameter B (Exducer Diameter B): 77.0
Tip Height C (Tip Height C): 13.3
Journal Bearing Diameter D (Journal Bearing Diameter D): 12.2
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 8
Shaft Length (mm) (Shaft Length (mm)): 141.5
Back (Back): Open
Piston Ring Type (Piston Ring Type): Single
Model (Model): H2C
3522064, 3522131, 3522950, 3522951, 3523134, 3523228, 3523410, 3524824, 3524825, 3525237, 3525278, 3525408, 3525517, 3525518, 3525743, 3526008, 3526009, 3526401, 3526963, 3526964, 3527017, 3527997, 3527998, 3528016, 3528017, 3528018, 3528650, 3529190, 3529236, 3531652, 3531772, 3531836, 3532476, 3533086, 3533088, 3536271, 3545915
Data updated: 2023-01-26 17:58:05
