SW-H012
New
Last items in stock (3 Items)
€100.67
Tax included

3533543, SW-H012

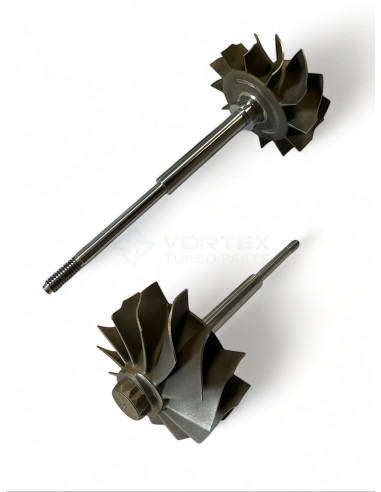

Shaft and wheel SW-H012 for turbos 3537840, 3590273, 3594232, 3594236, 3597728, 4036903, 4037181, 4037899.

See below for more info.



SW-H012 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-H012

SW-H012 - Alternative numbers

HSP (Holset original part number): 3533543

SW-H012 - Compatibility table

Shaft and wheel SW-H012 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
HolsetHX553537840--
HolsetHX553590273--
HolsetHX553594232--
HolsetHX553594236--
HolsetHX553597728--
HolsetHX554036903--
HolsetHX554037181--
HolsetHX554037899--

SW-H012 - Part Properties

Blades (Shaft blades count): 12

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 86.0

Exducer Diameter B (Exducer Diameter B): 80.0

Tip Height C (Tip Height C): 13.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 12.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 8.0

Shaft Length (mm) (Shaft Length (mm)): 157.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): HX55

3537840, 3590273, 3594232, 3594236, 3597728, 4036903, 4037181, 4037899

Data updated: 2023-01-26 17:58:19
