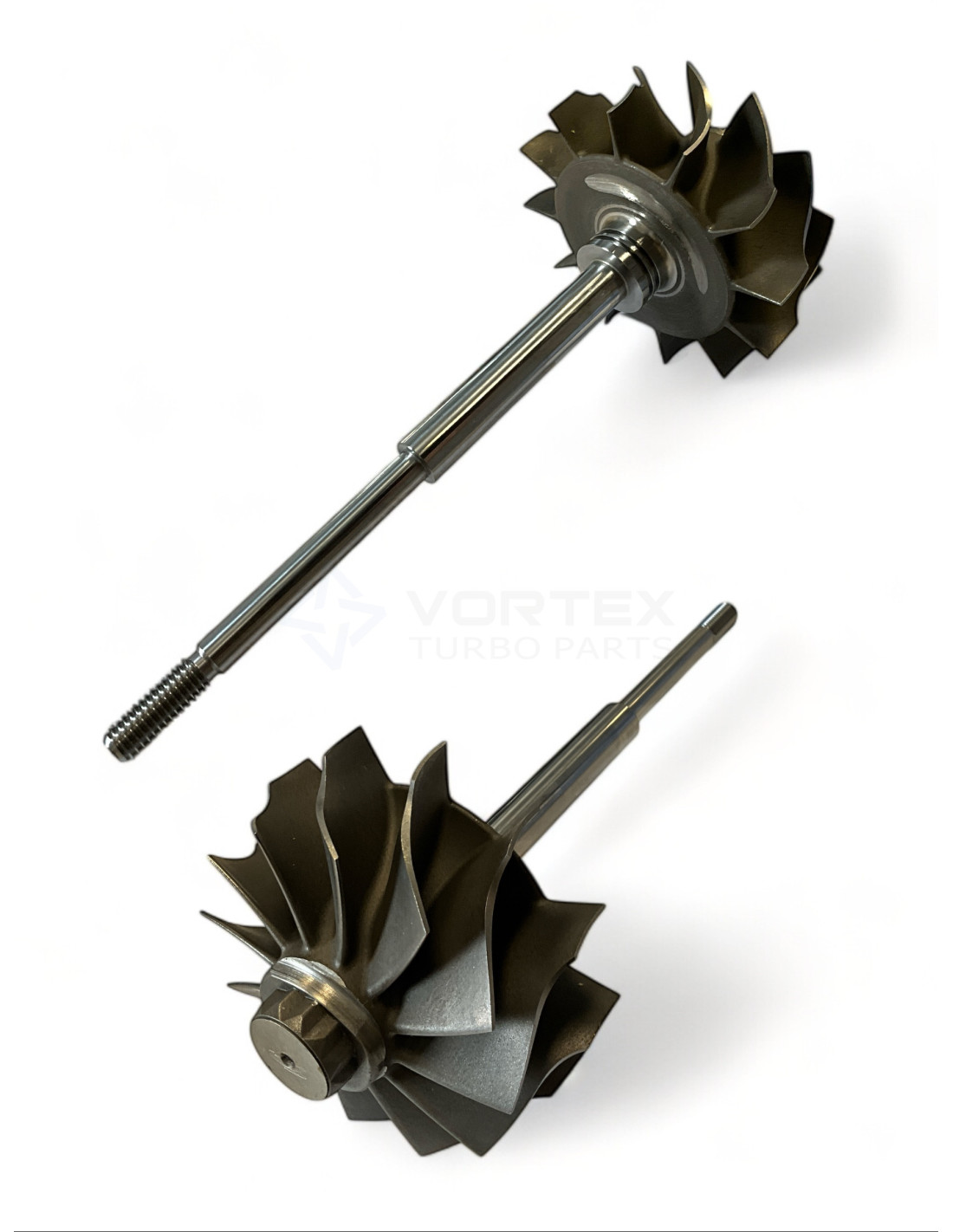

Shaft and wheel SW-H013
SW-H013
New
Last items in stock
(4 Items)
€100.67
Tax included
Shaft and wheel SW-H013 for turbos 2841020, 2842519, 3771285, 3771811, 3779274, 3779302, 3781348, 3782236, 3782237, 3782535.
See below for more info.
SW-H013 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-H013
SW-H013 - Compatibility table
| Shaft and wheel SW-H013 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Holset | HX50 | 2841020 | -- |
| Holset | HX50 | 2842519 | -- |
| Holset | HX55 | 3771285 | -- |
| Holset | HX55 | 3771811 | -- |
| Holset | HX55 | 3779274 | -- |
| Holset | HX55 | 3779302 | -- |
| Holset | HX55 | 3781348 | -- |
| Holset | HX55 | 3782236 | -- |
| Holset | HX55 | 3782237 | -- |
| Holset | HX55 | 3782535 | -- |
| Holset | HX55 | 3782537 | -- |
| Holset | HX55 | 3782538 | -- |
| Holset | HX55 | 3782539 | -- |
| Holset | HX55 | 3782541 | -- |
| Holset | HX55 | 3790510 | -- |
| Holset | HX55 | 3790512 | -- |
| Holset | HX55 | 3790523 | -- |
| Holset | HX55 | 3790525 | -- |
| Holset | HX55 | 4040091 | -- |
| Holset | HX55 | 4040743 | -- |
| Holset | HX55 | 4041172 | -- |
| Holset | HX55 | 4042154 | -- |
| Holset | HX55 | 4042156 | -- |
| Holset | HX55 | 4042686 | -- |
| Holset | HX55 | 4042893 | -- |
| Holset | HX55 | 4042978 | -- |
| Holset | HX55 | 4043047 | -- |
| Holset | HX55 | 4043049 | -- |
| Holset | HX55 | 4044320 | -- |
| Holset | HX55 | 4045791 | -- |
| Holset | HX55 | 4047074 | -- |
| Holset | HX55 | 4047216 | -- |
| Holset | HX55 | 4047217 | -- |
SW-H013 - Part Properties
Blades (Shaft blades count): 12
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 86.0
Exducer Diameter B (Exducer Diameter B): 77.0
Tip Height C (Tip Height C): 13.3
Journal Bearing Diameter D (Journal Bearing Diameter D): 12.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 8.0
Shaft Length (mm) (Shaft Length (mm)): 157.0
Back (Back): Open
Piston Ring Type (Piston Ring Type): Twin
Model (Model): HX55
2841020, 2842519, 3771285, 3771811, 3779274, 3779302, 3781348, 3782236, 3782237, 3782535, 3782537, 3782538, 3782539, 3782541, 3790510, 3790512, 3790523, 3790525, 4040091, 4040743, 4041172, 4042154, 4042156, 4042686, 4042893, 4042978, 4043047, 4043049, 4044320, 4045791, 4047074, 4047216, 4047217
Data updated: 2023-01-26 17:58:24
