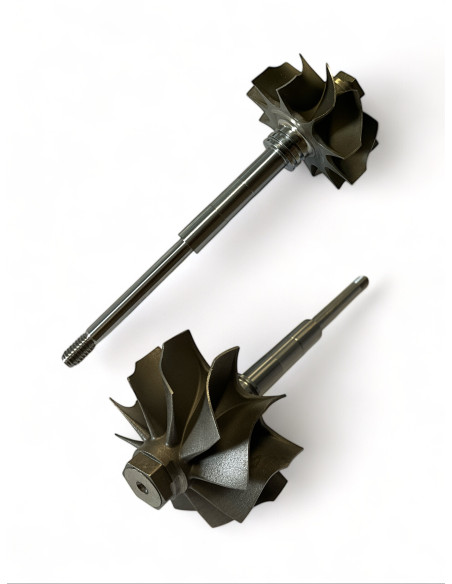

Shaft and wheel SW-G133
Shaft and wheel SW-G133
Shaft and wheel SW-G133
Shaft and wheel SW-G133

Shaft and wheel SW-G133

SW-G133
New
Last items in stock (3 Items)
€34.61
Tax included

435406-0004, SW-G133

Shaft and wheel SW-G133 for turbos 452062-0002, 452062-0003, 452065-0003, 452129-0001, 452129-0002, 452129-0003, 454054-0002, 454163-0001, 465153-0003, 465153-0004.



SW-G133 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G133

SW-G133 - Alternative numbers

GHO (Garrett original part number): 435406-0004

SW-G133 - Compatibility table

Shaft and wheel SW-G133 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettTB280452062-0002--
GarrettTB28452062-0003--
GarrettTB2558452065-0003--
GarrettTB25452129-0001--
GarrettTB25452129-0002--
GarrettTB25452129-0003--
GarrettTB2538454054-000260607750
GarrettTA2505454163-0001--
GarrettT250465153-0003--
GarrettT250-01465153-0004--
GarrettTB2518466898-0006--

SW-G133 - Part Properties

Blades (Shaft blades count): 10

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 53.0

Exducer Diameter B (Exducer Diameter B): 46.0

Tip Height C (Tip Height C): 8.2

Journal Bearing Diameter D (Journal Bearing Diameter D): 9.2

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 6.0

Shaft Length (mm) (Shaft Length (mm)): 102.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): T25

452062-0002, 452062-0003, 452065-0003, 452129-0001, 452129-0002, 452129-0003, 454054-0002, 60607750, 454163-0001, 465153-0003, 465153-0004, 466898-0006

Data updated: 2024-10-03 17:37:59
