SW-G136
New
Last items in stock (1 Item)
€51.91
Tax included

409392-0029, 443861-0007, 446494-0001, 446694-0001

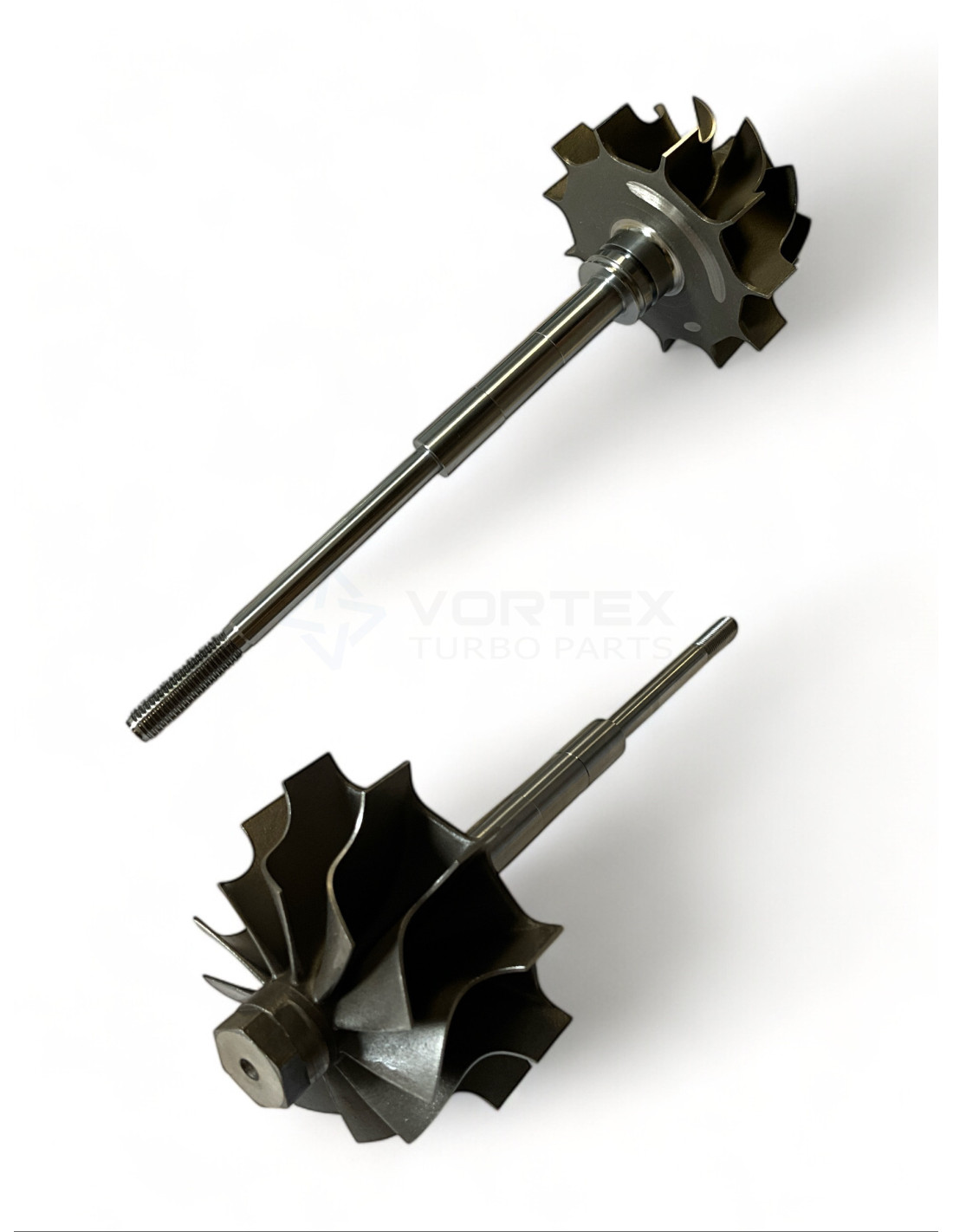

Shaft and wheel SW-G136 for turbos 465245-0001, 465379-0001, 465379-0003, 465506-0001, 465518-0001, 465752-0001, 465752-0002, 465776-0005, 465776-0008, 465778-0001.



SW-G136 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G136

SW-G136 - Alternative numbers

GHO (Garrett original part number): 409392-0029

GHO (Garrett original part number): 443861-0007

GHO (Garrett original part number): 446494-0001

GHO (Garrett original part number): 446694-0001

GHO (Garrett original part number): 451310-0003

SW-G136 - Compatibility table

Shaft and wheel SW-G136 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettTA3124465245-0001403095325
GarrettTA0318465379-00014848601
GarrettTA0318465379-00034848601
GarrettTA3102465506-0001--
GarrettTB0305465518-0001--
GarrettTA3108465752-0001--
GarrettTA3108465752-0002--
GarrettTA3106465776-0005--
GarrettTA3106465776-0008--
GarrettTA3107465778-0001--
GarrettTA3107465778-0018--
GarrettTA03466088-0001--
GarrettTA03466088-0002--
GarrettTA3117466346-0003--
GarrettTA3119466746-0010--
GarrettTA3112466932-0001--

SW-G136 - Part Properties

Blades (Shaft blades count): 11

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 65.5

Exducer Diameter B (Exducer Diameter B): 49.3

Tip Height C (Tip Height C): 10.3

Journal Bearing Diameter D (Journal Bearing Diameter D): 10.2

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 6.3

Shaft Length (mm) (Shaft Length (mm)): 134.0

Back (Back): Cutback

Piston Ring Type (Piston Ring Type): Single

Model (Model): T3/T04

403095325, 465245-0001, 465379-0001, 4848601, 465379-0003, 4848601, 465506-0001, 465518-0001, 465752-0001, 465752-0002, 465776-0005, 465776-0008, 465778-0001, 465778-0018, 466088-0001, 466088-0002, 466346-0003, 466746-0010, 466932-0001
