Shaft and wheel SW-G137
SW-G137
New
In Stock
(14 Items)
€56.63
Tax included
451311-0002, 451314-0002, SW-G137, TW-238
Shaft and wheel SW-G137 for turbos 466575-0003.
See below for more info.

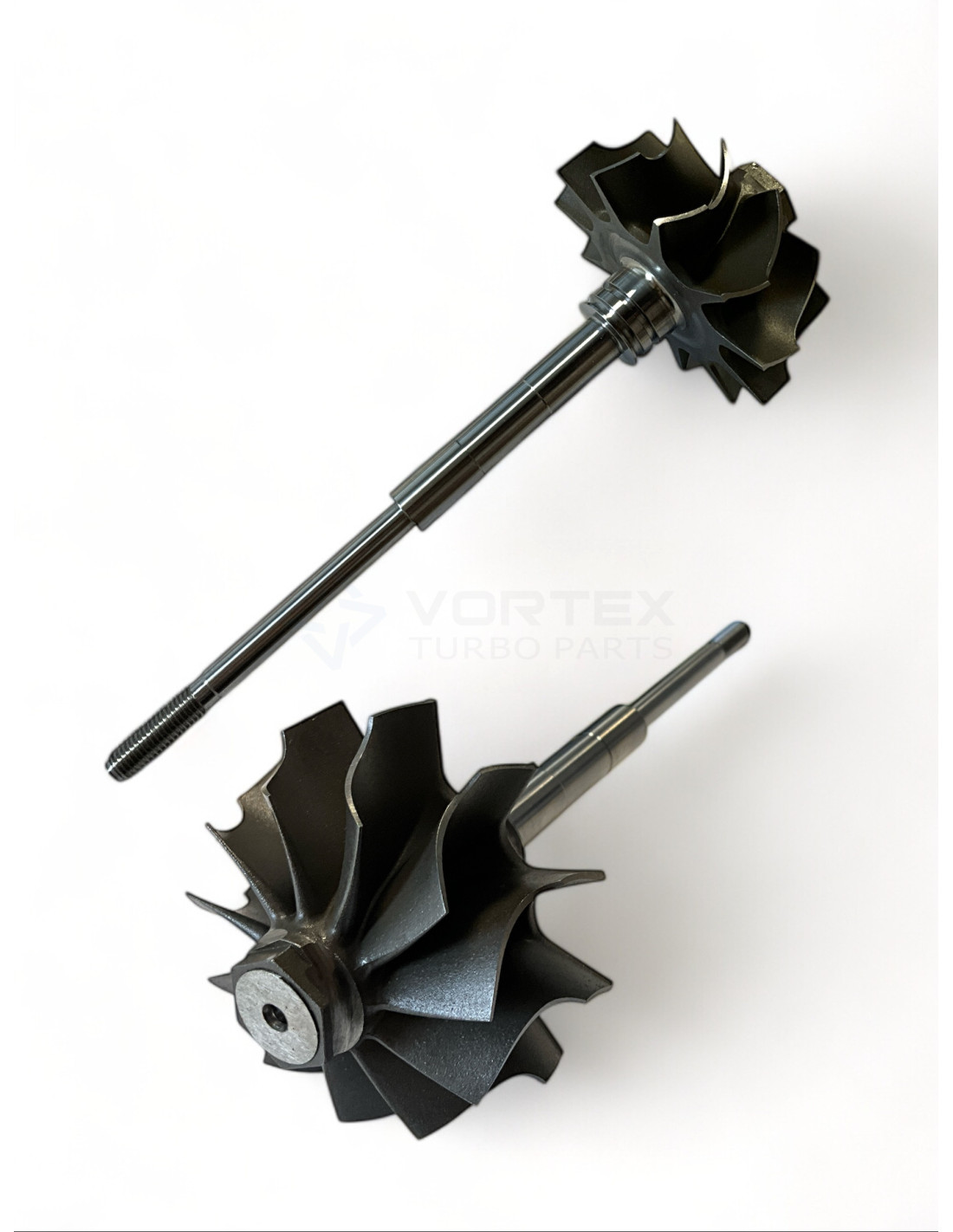

SW-G137 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-G137
SW-G137 - Alternative numbers
GHO (Garrett original part number): 451311-0002
GHO (Garrett original part number): 451314-0002
KD (KODE): TW-238
SW-G137 - Compatibility table
| Shaft and wheel SW-G137 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | TA3408 | 466575-0003 | 3590092 |
SW-G137 - Part Properties
Blades (Shaft blades count): 11
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 65.5
Exducer Diameter B (Exducer Diameter B): 54.0
Tip Height C (Tip Height C): 9.5
Journal Bearing Diameter D (Journal Bearing Diameter D): 10.2
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 6.3
Shaft Length (mm) (Shaft Length (mm)): 134.0
Back (Back): Cutback
Piston Ring Type (Piston Ring Type): Single
Model (Model): T3/T04
3590092, 466575-0003
Data updated: 2023-01-26 17:55:48
