Shaft and wheel SW-G162
Shaft and wheel SW-G162
Shaft and wheel SW-G162
Shaft and wheel SW-G162

Shaft and wheel SW-G162

SW-G162
New
In Stock (5 Items)
€47.19
Tax included

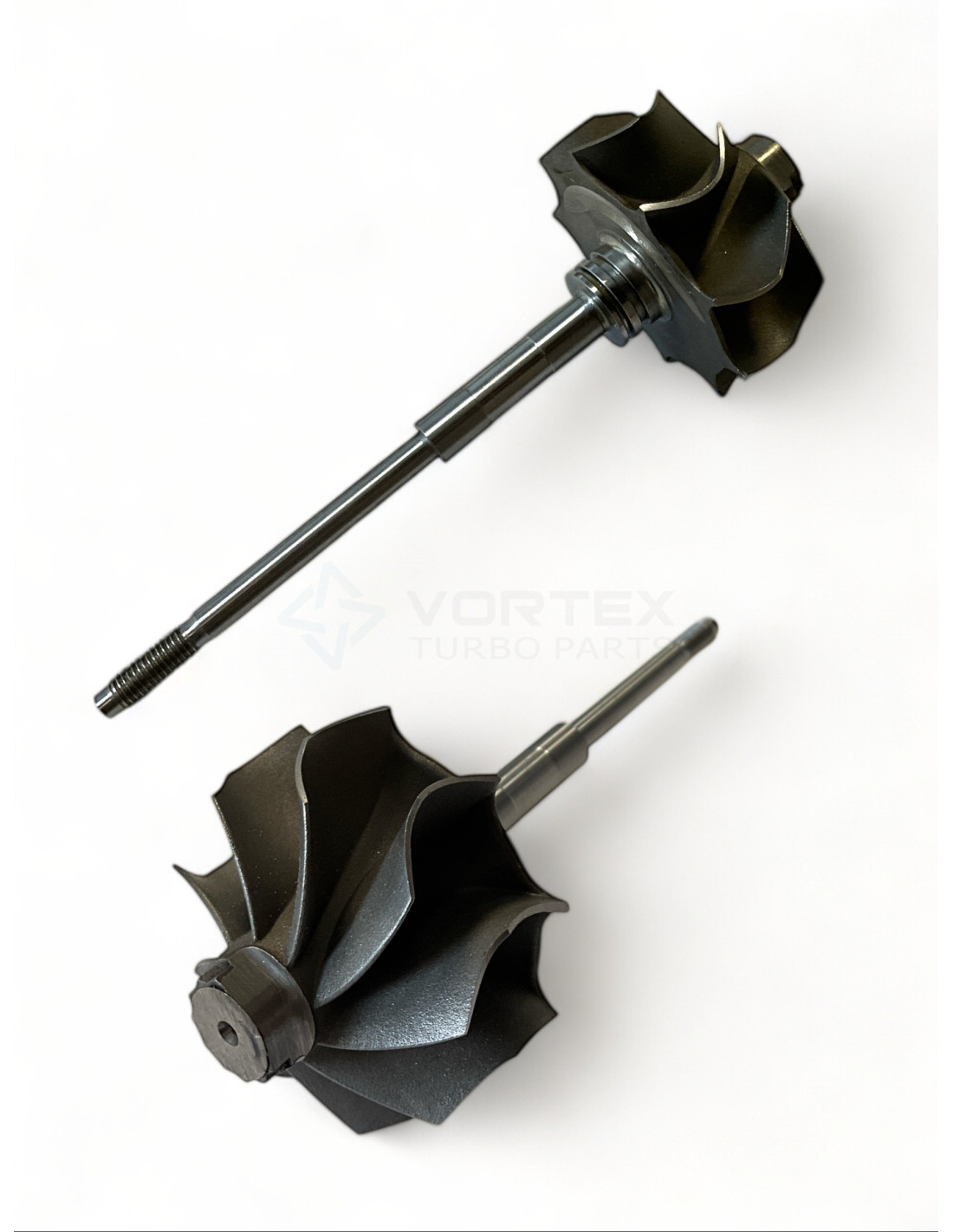

Shaft and wheel SW-G162 for turbos 724483-0005, 724483-0008, 724483-0009.



SW-G162 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G162

SW-G162 - Compatibility table

Shaft and wheel SW-G162 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT2359V724483-000517201-17050, 1720117050
GarrettGTA2359LV724483-000817201-17070A, 1720117070A
GarrettGTA2359LV724483-000917201-17070B, 1720117070B

SW-G162 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 51.2

Exducer Diameter B (Exducer Diameter B): 47.0

Tip Height C (Tip Height C): 11.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 99.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

17201-17050, 1720117050, 724483-0005, 17201-17070A, 1720117070A, 724483-0008, 17201-17070B, 1720117070B, 724483-0009

Data updated: 2023-11-09 14:42:50
