Shaft and wheel SW-M026R
SW-M026R
New
Please login to see prices and stock
Shaft and wheel SW-M026R for turbos 49130-01900, 49130-01910, 49130-01920, 49130-01930, 49130-01940.
SW-M026R - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-M026R
SW-M026R - Alternative numbers
VTX (Vortex original part number): SW-M026
SW-M026R - Compatibility table
| Shaft and wheel SW-M026R - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Mitsubishi | TD025 | 49130-01900 | -- |
| Mitsubishi | TD025 | 49130-01910 | -- |
| Mitsubishi | TD025 | 49130-01920 | -- |
| Mitsubishi | TD025 | 49130-01930 | -- |
| Mitsubishi | TD025 | 49130-01940 | -- |

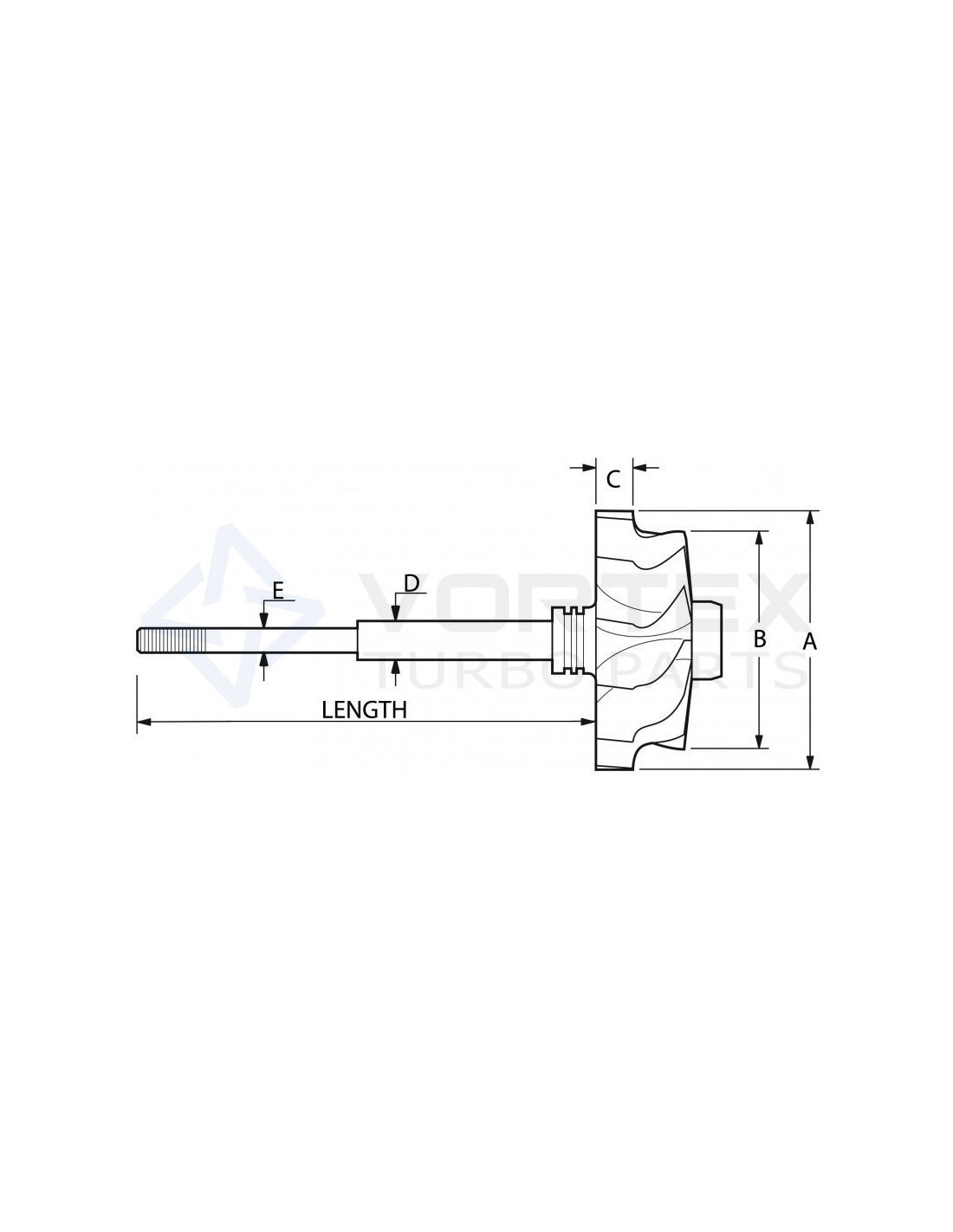

SW-M026R - Part Properties
Blades (Shaft blades count): 11
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 34.0
Exducer Diameter B (Exducer Diameter B): 29.8
Tip Height C (Tip Height C): 6.1
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0
Shaft Length (mm) (Shaft Length (mm)): 82.5
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Single
Rotation (Rotation): Reverse
Model (Model): TD025
49130-01900, 49130-01910, 49130-01920, 49130-01930, 49130-01940
