Shaft and wheel SW-G164
Shaft and wheel SW-G164
Shaft and wheel SW-G164
Shaft and wheel SW-G164

Shaft and wheel SW-G164

SW-G164
New
Last items in stock (1 Item)
€44.04
Tax included

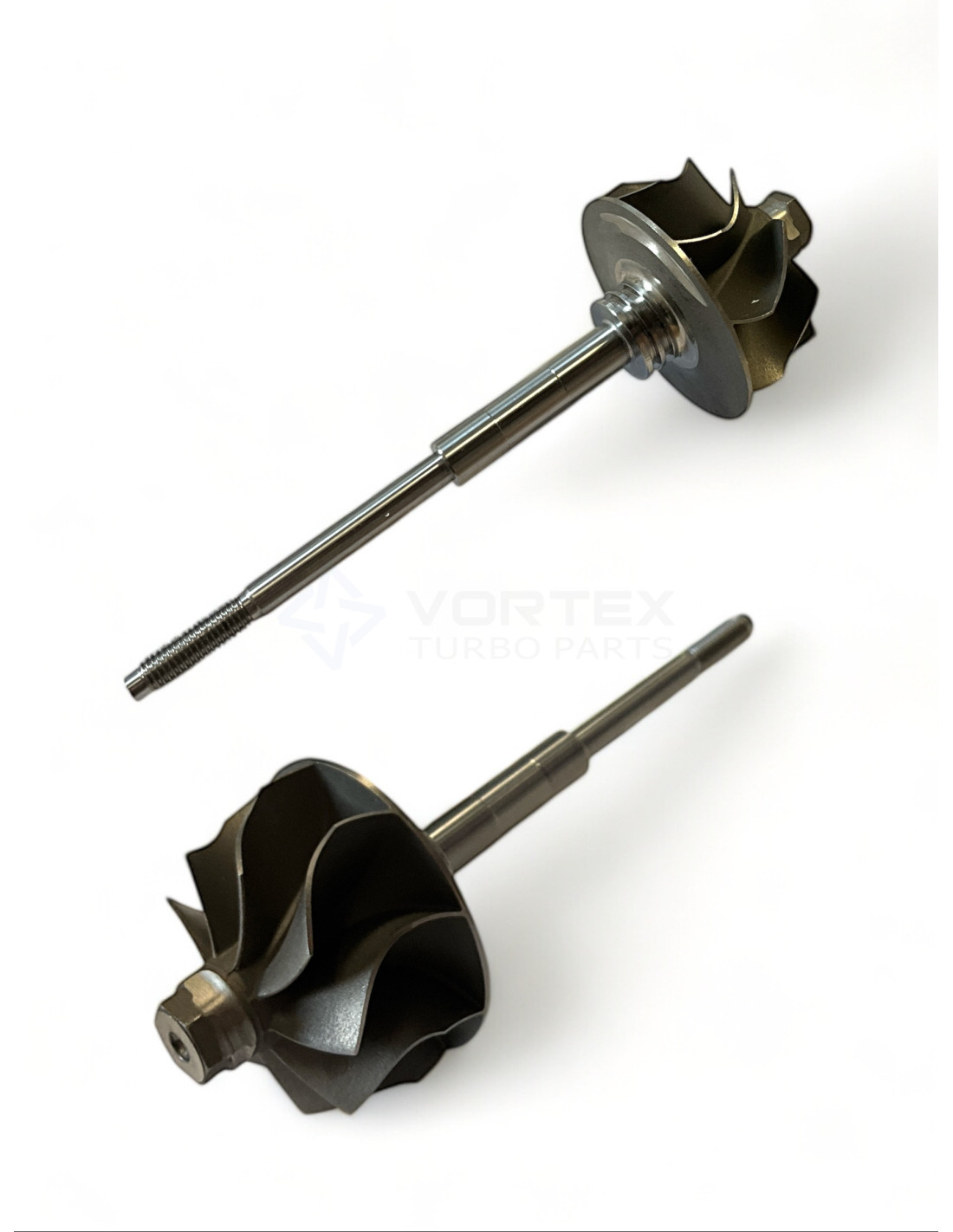

Shaft and wheel SW-G164 for turbos 760698-0002, 760698-0003, 760698-0004, 760698-0005, 805716-0001, 805716-0007.

See below for more info.



SW-G164 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G164

SW-G164 - Compatibility table

Shaft and wheel SW-G164 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGTB1749V760698-0002070145701RV204
GarrettGTB1749V760698-0003070145701RV210
GarrettGTB1749V760698-0004070145701RV220
GarrettGTB1749V760698-0005070145701RV220
GarrettGTB17805716-0001--
GarrettGTB17805716-0007--

SW-G164 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 43.0

Exducer Diameter B (Exducer Diameter B): 37.4

Tip Height C (Tip Height C): 7.9

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 91.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT15-25

070145701RV204, 760698-0002, 070145701RV210, 760698-0003, 070145701RV220, 760698-0004, 070145701RV220, 760698-0005, 805716-0001, 805716-0007

Data updated: 2023-03-27 18:01:52
