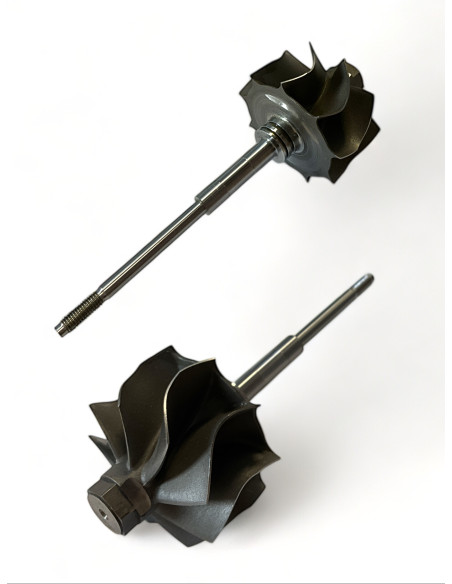

Shaft and wheel SW-G102
SW-G102
New
Last items in stock
(2 Items)
€47.19
Tax included
Shaft and wheel SW-G102 for turbos 729355-0001, 729355-0002, 729355-0003.
SW-G102 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-G102
SW-G102 - Compatibility table
| Shaft and wheel SW-G102 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | GT2359V | 729355-0001 | -- |
| Garrett | GT2359V | 729355-0002 | -- |
| Garrett | GT2359V | 729355-0003 | -- |

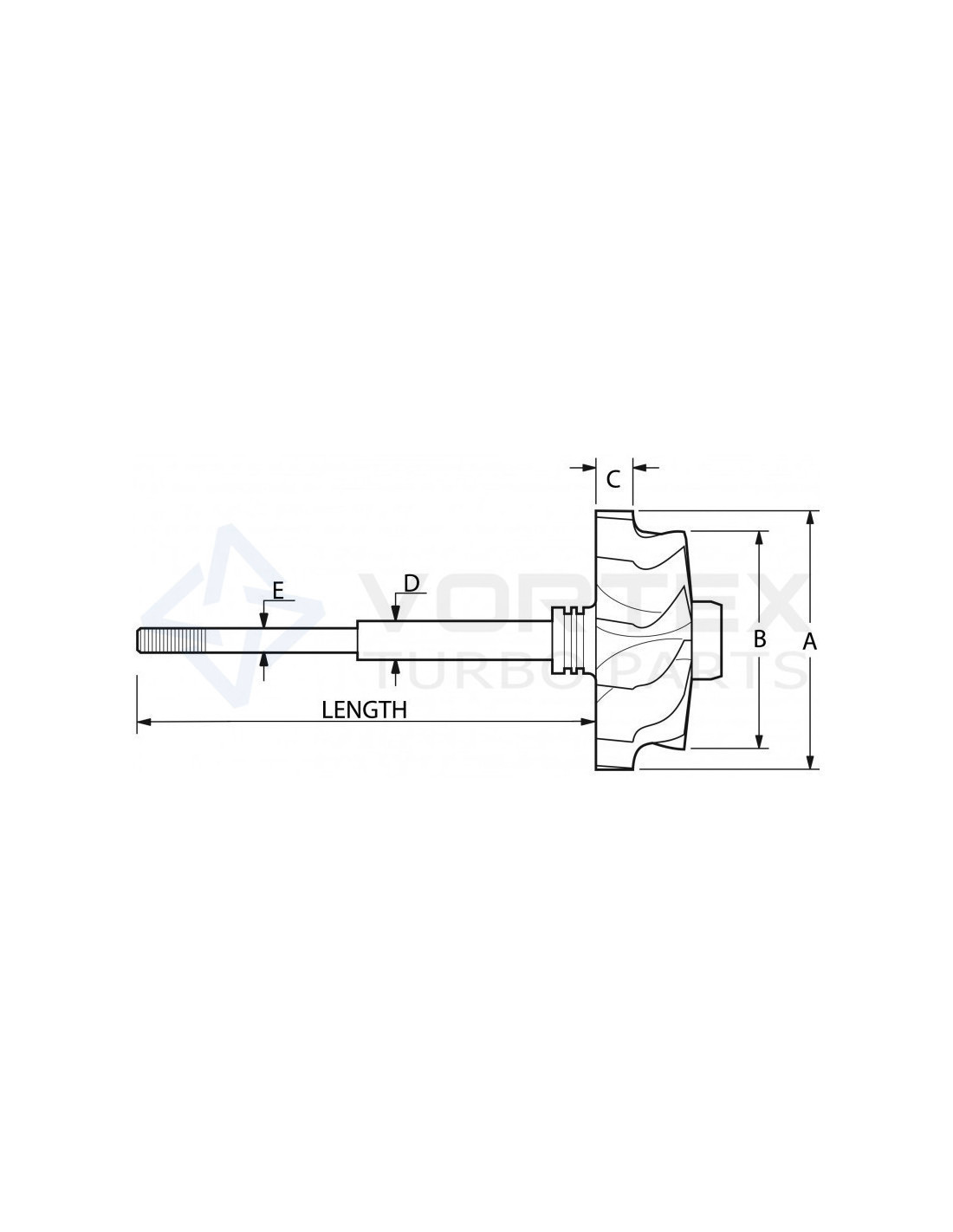

SW-G102 - Part Properties
Blades (Shaft blades count): 9
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 51.0
Exducer Diameter B (Exducer Diameter B): 48.2
Tip Height C (Tip Height C): 10.0
Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1
Shaft Length (mm) (Shaft Length (mm)): 99.0
Back (Back): Open
Piston Ring Type (Piston Ring Type): Single
Model (Model): GT15-25
729355-0001, 729355-0002, 729355-0003
Data updated: 2023-11-09 14:33:39
