Shaft and wheel SW-I049
Shaft and wheel SW-I049

Shaft and wheel SW-I049

SW-I049
New
In Stock (5 Items)
€50.34
Tax included

Shaft and wheel SW-I049 for turbos 28231-2B800.

See below for more info.



SW-I049 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-I049

SW-I049 - Compatibility table

Shaft and wheel SW-I049 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
IHIRHF528231-2B800--

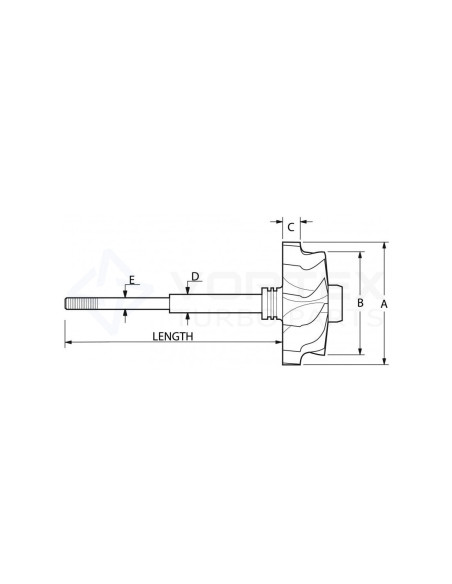

SW-I049 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 41.5

Exducer Diameter B (Exducer Diameter B): 34.2

Tip Height C (Tip Height C): 6.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.5

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.0

Shaft Length (mm) (Shaft Length (mm)): 99.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): RHF5

28231-2B800

Data updated: 2023-05-15 13:29:00
