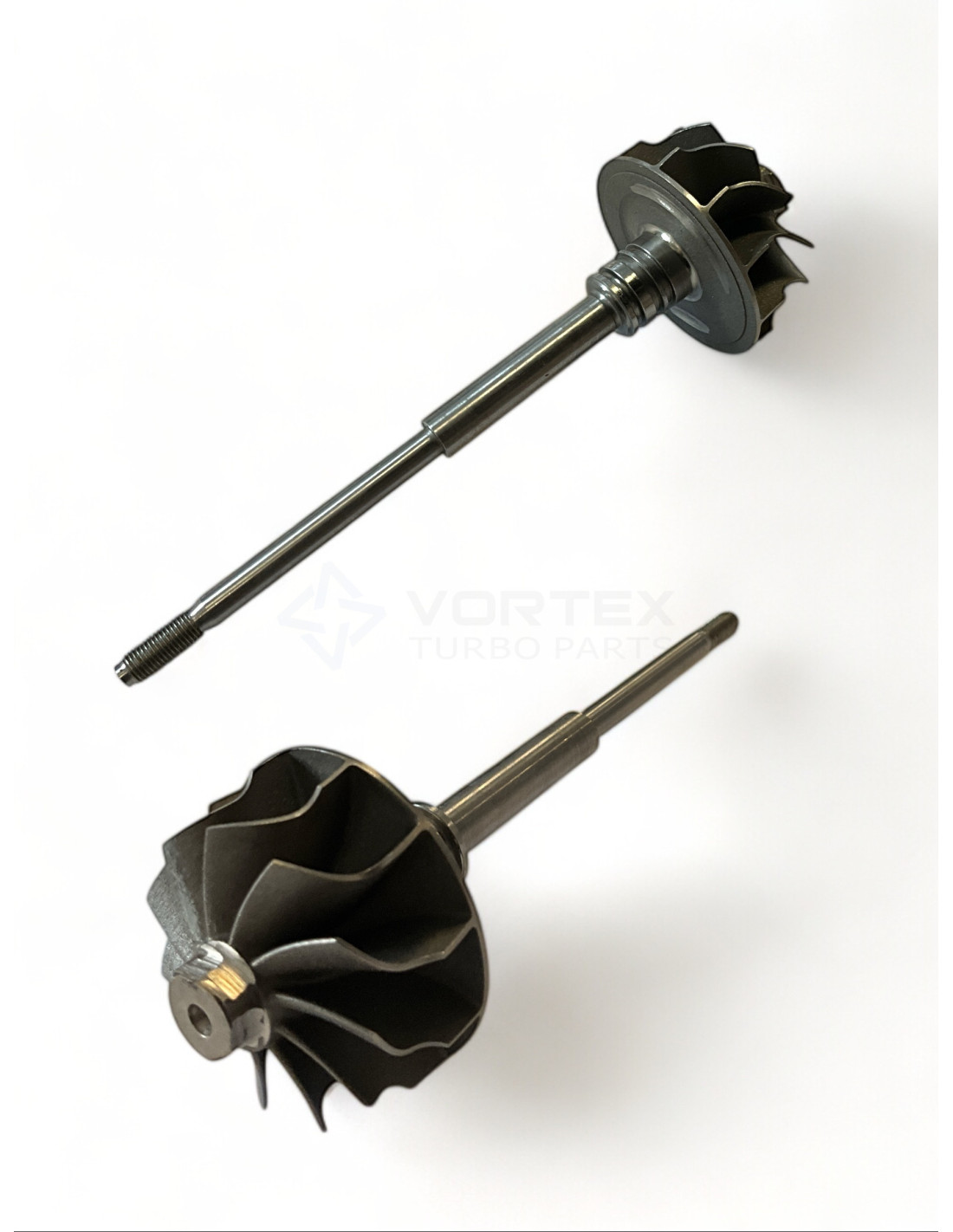

Shaft and wheel SW-BM005R
SW-BM005R
New
Last items in stock
(2 Items)
€50.34
Tax included
Shaft and wheel SW-BM005R for turbos 40003797, 40004364, 40005433, 40005976, 40006199.
See below for more info.
SW-BM005R - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-BM005R
SW-BM005R - Compatibility table
| Shaft and wheel SW-BM005R - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| BMTS | BM65B | 40003797 | -- |
| BMTS | BM65B | 40004364 | -- |
| BMTS | BM65B | 40005433 | -- |
| BMTS | BM65B | 40005976 | -- |
| BMTS | BM65B | 40006199 | -- |

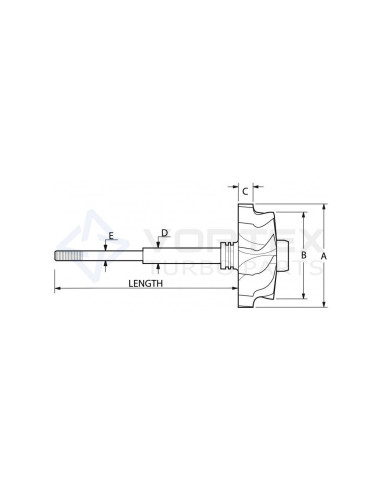

SW-BM005R - Part Properties
Blades (Shaft blades count): 11
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 35.5
Exducer Diameter B (Exducer Diameter B): 31.5
Tip Height C (Tip Height C): 5.8
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.5
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.2
Shaft Length (mm) (Shaft Length (mm)): 90.0
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Rotation (Rotation): Reverse
Model (Model): BM65B
40003797, 8631700, 40004364, 8631897, 40005433, 8651058, 40005976, 9452135, 40006199, 8631700
Data updated: 2023-05-15 13:48:20
