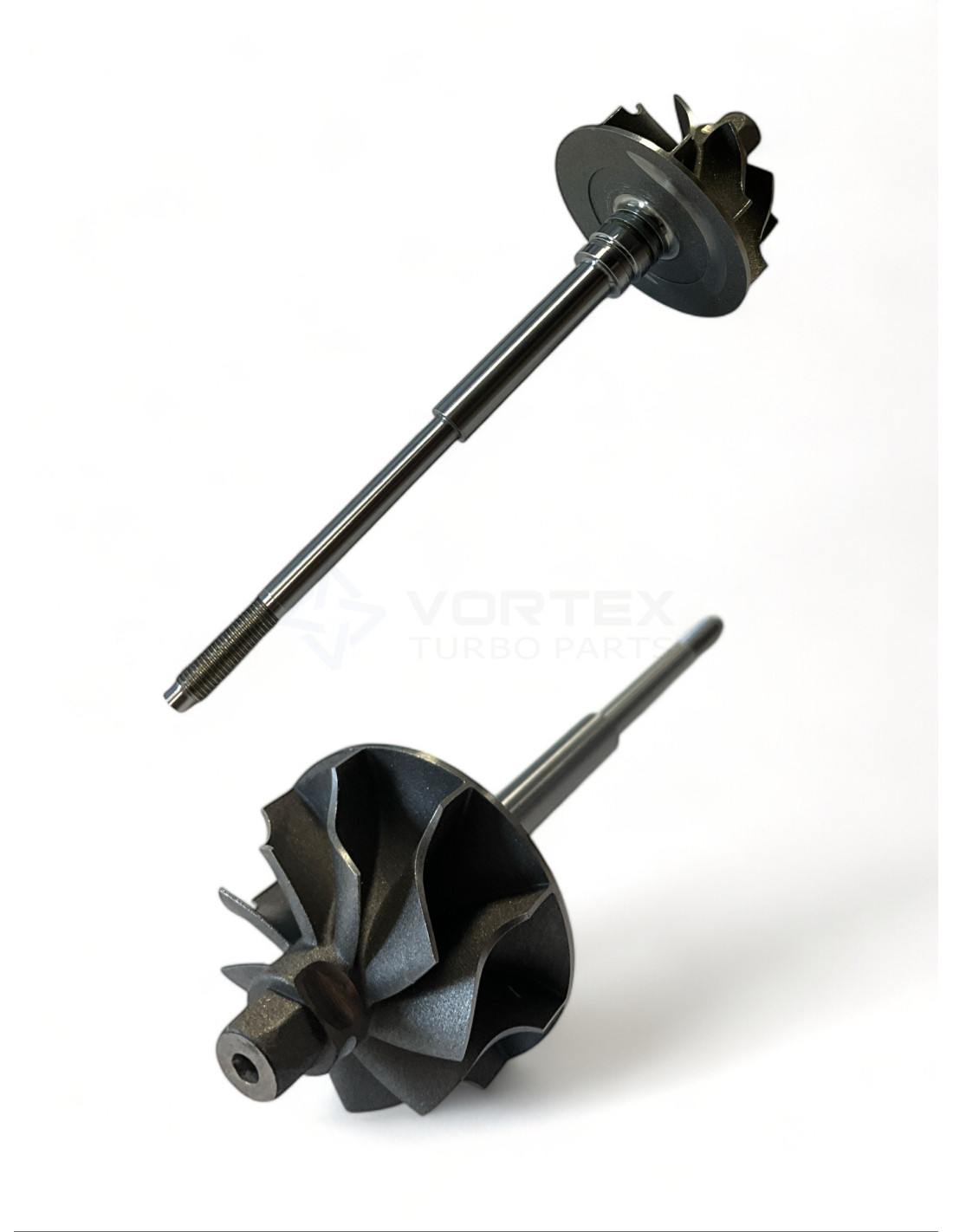

Shaft and wheel SW-K069
SW-K069
New
Last items in stock
(4 Items)
€47.19
Tax included
Shaft and wheel SW-K069 for turbos 54359700026, 54359700030, 54359700036.
SW-K069 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-K069
SW-K069 - Compatibility table
| Shaft and wheel SW-K069 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| BorgWarner | KP35-1672CXA180.15CCAXK | 54359700026 | 7804637 |
| BorgWarner | KP35-1672CXA180.15CCAXK | 54359700030 | 7804637 |
| BorgWarner | KP35-1672CXA180.15CCAXK | 54359700036 | 7804637 |
SW-K069 - Part Properties
Blades (Shaft blades count): 9
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 34.8
Exducer Diameter B (Exducer Diameter B): 27.6
Tip Height C (Tip Height C): 5.4
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.1
Shaft Length (mm) (Shaft Length (mm)): 84.0
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Model (Model): KP/BV39
54359700036, 54359700030, 54359700026, 5435 970 0026, 7804637, 5435 970 0030, 7804637, 5435 970 0036, 7804637
Data updated: 2024-09-16 19:15:05
