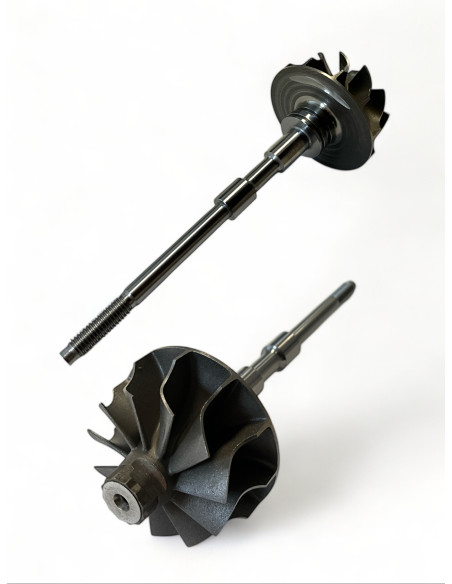

Shaft and wheel SW-G043U
Shaft and wheel SW-G043U
Shaft and wheel SW-G043U
Shaft and wheel SW-G043U

Shaft and wheel SW-G043U

SW-G043U
New
In Stock (16 Items)
€29.89
Tax included

Back is CLOSED, Journal Bearing 7.9 mm

Shaft and wheel SW-G043U for turbos 740821-0001, 740821-0002, 750030-0002, 751418-0002, 753420-0002, 753420-0003, 753420-0004, 753420-0005, 753420-0006, 758870-0001.



SW-G043U - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G043U

SW-G043U - Compatibility table

Shaft and wheel SW-G043U - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1544V740821-00010375J6, 0375J8, 9650764480
GarrettGT1544V740821-00020375J6, 0375J8, 9651839880
GarrettGT1544V750030-00029654128780
GarrettGT1444V751418-0002--
GarrettGT1544V753420-00029656125880
GarrettGT1544V753420-00030375J6, 3M5Q6K682AF, 9657248680
GarrettGT1544V753420-00041373584, 3M5Q6K682AH, 8603746, 9660641380
GarrettGT1544V753420-00050375J6, 1479055, 36002480, 3M5Q6K682AK, 9663199280
GarrettGT1544V753420-00060375J6, 1479055, 3M5Q6K682AK, 9663199280
GarrettGT1444V758870-0001--
GarrettGT1544V762328-00010375J6, 0375J8, 9660493580
GarrettGT1544V762328-00020375J6, 0375J8, 9663199080
GarrettGT1444V766259-0001--

SW-G043U - Part Properties

Blades (Shaft blades count): 11

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 39.0

Exducer Diameter B (Exducer Diameter B): 33.2

Tip Height C (Tip Height C): 5.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

0375J6, 0375J8, 740821-0001, 9650764480, 0375J6, 0375J8, 740821-0002, 9651839880, 750030-0002, 9654128780, 751418-0002, 753420-0002, 9656125880, 0375J6, 3M5Q6K682AF, 753420-0003, 9657248680, 1373584, 3M5Q6K682AH, 753420-0004, 8603746, 9660641380, 0375J6, 1479055, 36002480, 3M5Q6K682AK, 753420-0005, 9663199280, 0375J6, 1479055, 3M5Q6K682AK, 753420-0006, 9663199280, 758870-0001, 0375J6, 0375J8, 762328-0001, 9660493580, 0375J6, 0375J8, 762328-0002, 9663199080, 766259-0001

Data updated: 2024-09-20 16:30:04
