Shaft and wheel SW-K072R
SW-K072R
New
In Stock
(5 Items)
€47.19
Tax included
Shaft and wheel SW-K072R for turbos 53039700277, 53039700470.
SW-K072R - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-K072R
SW-K072R - Compatibility table
| Shaft and wheel SW-K072R - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| BorgWarner | K03 | 53039700277 | -- |
| BorgWarner | K03 | 53039700470 | -- |

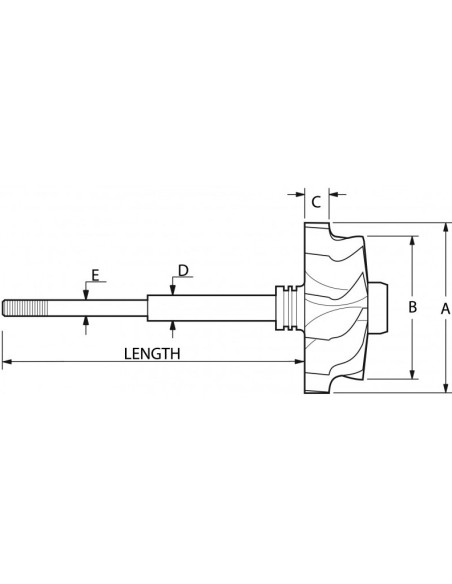

SW-K072R - Part Properties
Blades (Shaft blades count): 9
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 45.0
Exducer Diameter B (Exducer Diameter B): 40.3
Tip Height C (Tip Height C): 7.4
Journal Bearing Diameter D (Journal Bearing Diameter D): 7.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.6
Shaft Length (mm) (Shaft Length (mm)): 99.0
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Single
Rotation (Rotation): Reverse
Model (Model): K03/04
53039700277, 53039700470
