Shaft and wheel SW-K073R
SW-K073R
New
Last items in stock
(1 Item)
€69.21
Tax included

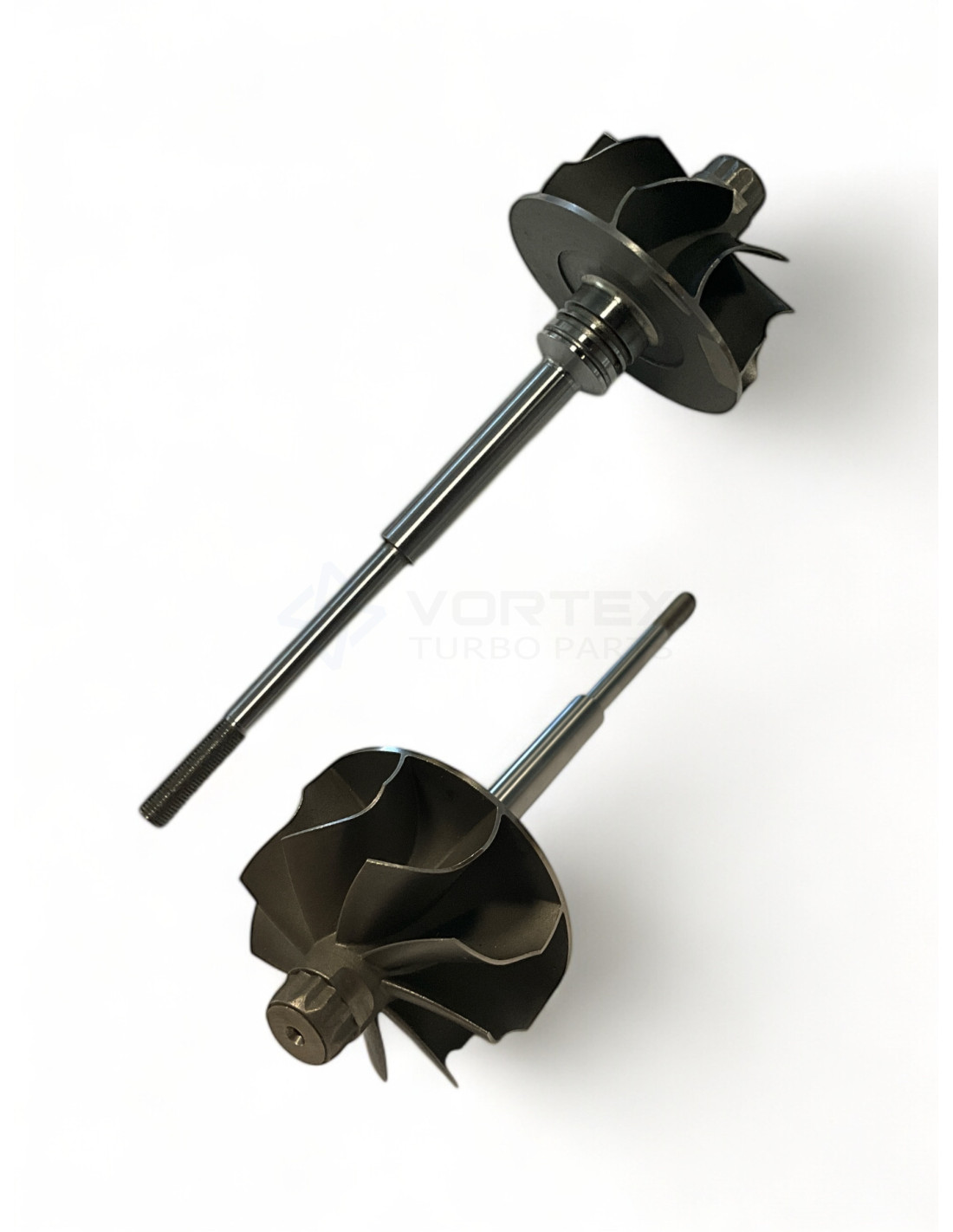

Shaft and wheel SW-K073R for turbos 53039700617, 53039700678.
SW-K073R - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-K073R
SW-K073R - Compatibility table
| Shaft and wheel SW-K073R - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| BorgWarner | K03 | 53039700617 | -- |
| BorgWarner | K03 | 53039700678 | -- |

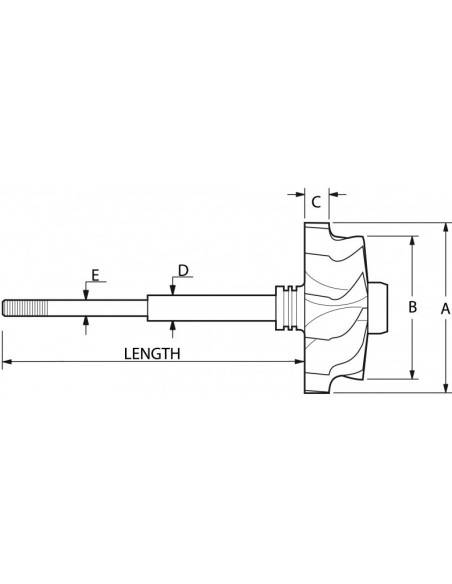

SW-K073R - Part Properties
Blades (Shaft blades count): 9
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 45.0
Exducer Diameter B (Exducer Diameter B): 40.0
Tip Height C (Tip Height C): 7.5
Journal Bearing Diameter D (Journal Bearing Diameter D): 7.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.5
Shaft Length (mm) (Shaft Length (mm)): 99.0
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Rotation (Rotation): Reverse
Model (Model): K03/04
5303-970-0617, 5303-970-0678
Data updated: 2023-11-09 14:59:24
