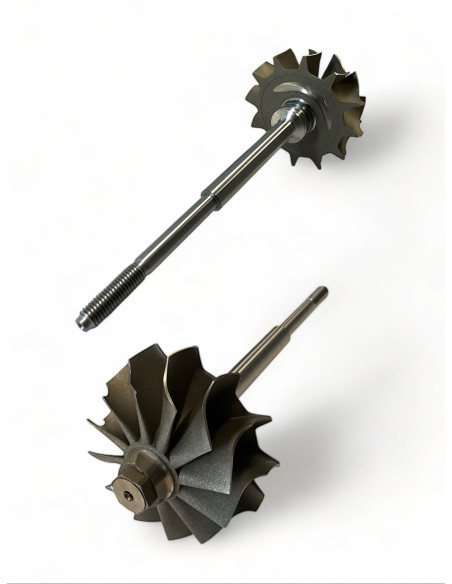

Shaft and wheel SW-K031
(Length 136 mm)
5326 120 5002, SW-K031
Shaft and wheel SW-K031 for turbos 53269701400, 53269701500, 53269701590, 53269706001, 53269706012.
See below for more info.
SW-K031 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-K031
SW-K031 - Alternative numbers
BWO (BorgWarner original part number): 5326 120 5002
SW-K031 - Compatibility table
Shaft and wheel SW-K031 - Compatible turbochargers | |||
---|---|---|---|
TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
BorgWarner | K26-149/6.11 | 53269701400 | 35240003A |
BorgWarner | K26-159/8.11 | 53269701500 | 6.0529.20.0.0045 |
BorgWarner | K26-2470/10.71 | 53269701590 | 3802003, 829368 |
BorgWarner | K26-2460G6.11 | 53269706001 | 411.85.11.0014 |
BorgWarner | K26-2660GA6.11GAAQB | 53269706012 | 04152326 |

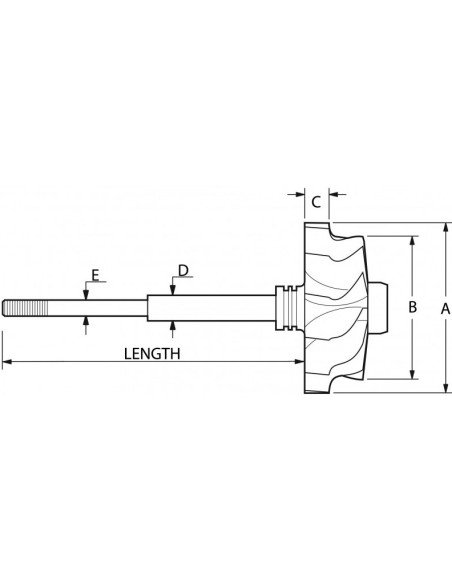

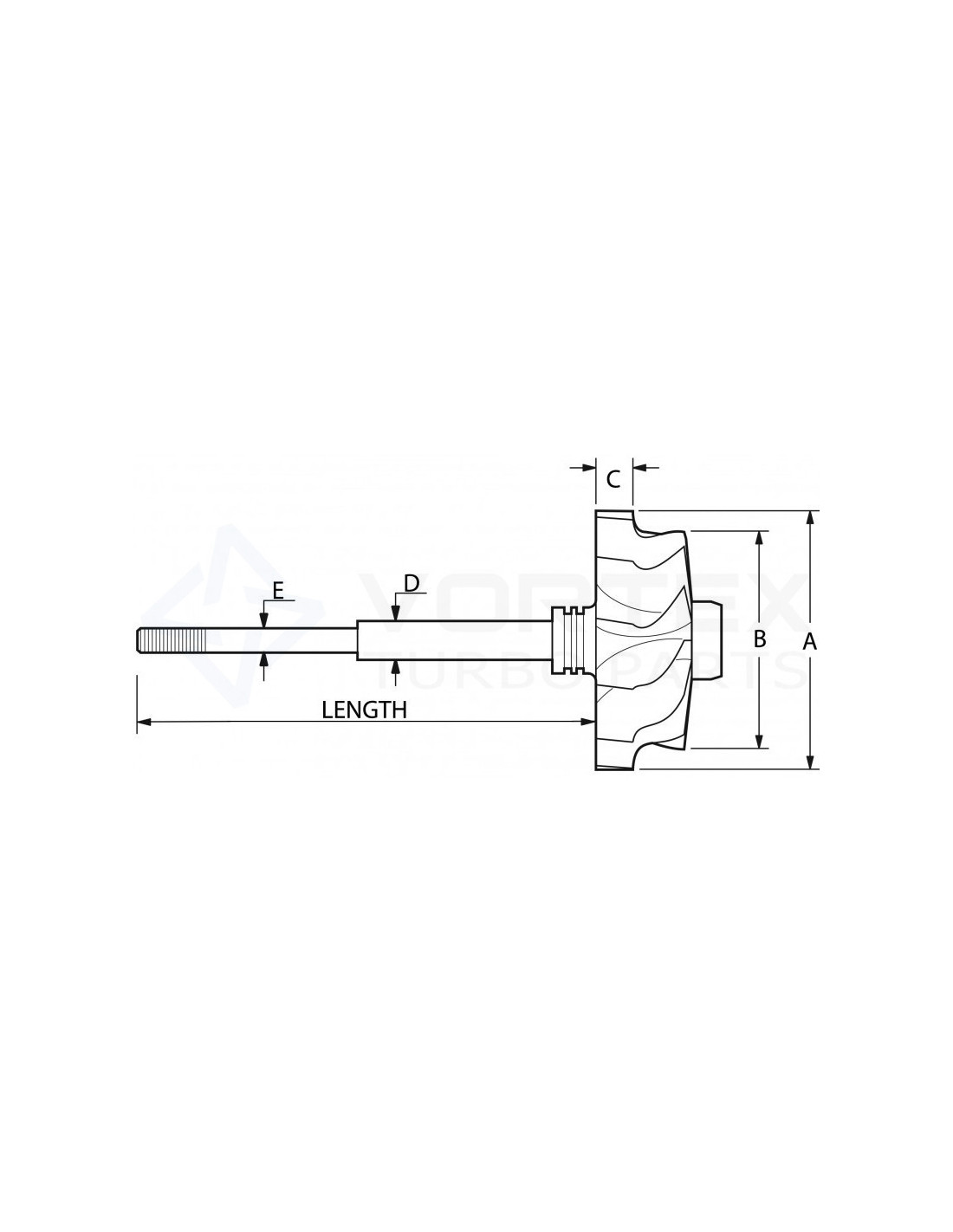

SW-K031 - Part Properties
Blades (Shaft blades count): 12
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 64.0
Exducer Diameter B (Exducer Diameter B): 54.5
Tip Height C (Tip Height C): 10.0
Journal Bearing Diameter D (Journal Bearing Diameter D): 10.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 7.0
Shaft Length (mm) (Shaft Length (mm)): 136.0
Back (Back): Open
Piston Ring Type (Piston Ring Type): Twin
Model (Model): K26
53269706012, 53269706001, 53269701590, 53269701500, 53269701400, 35240003A, 5326 970 1400, 5326 970 1500, 6.0529.20.0.0045, 3802003, 5326 970 1590, 829368, 411.85.11.0014, 5326 970 6001, 04152326, 5326 970 6012
Data updated: 2023-07-29 11:25:55
