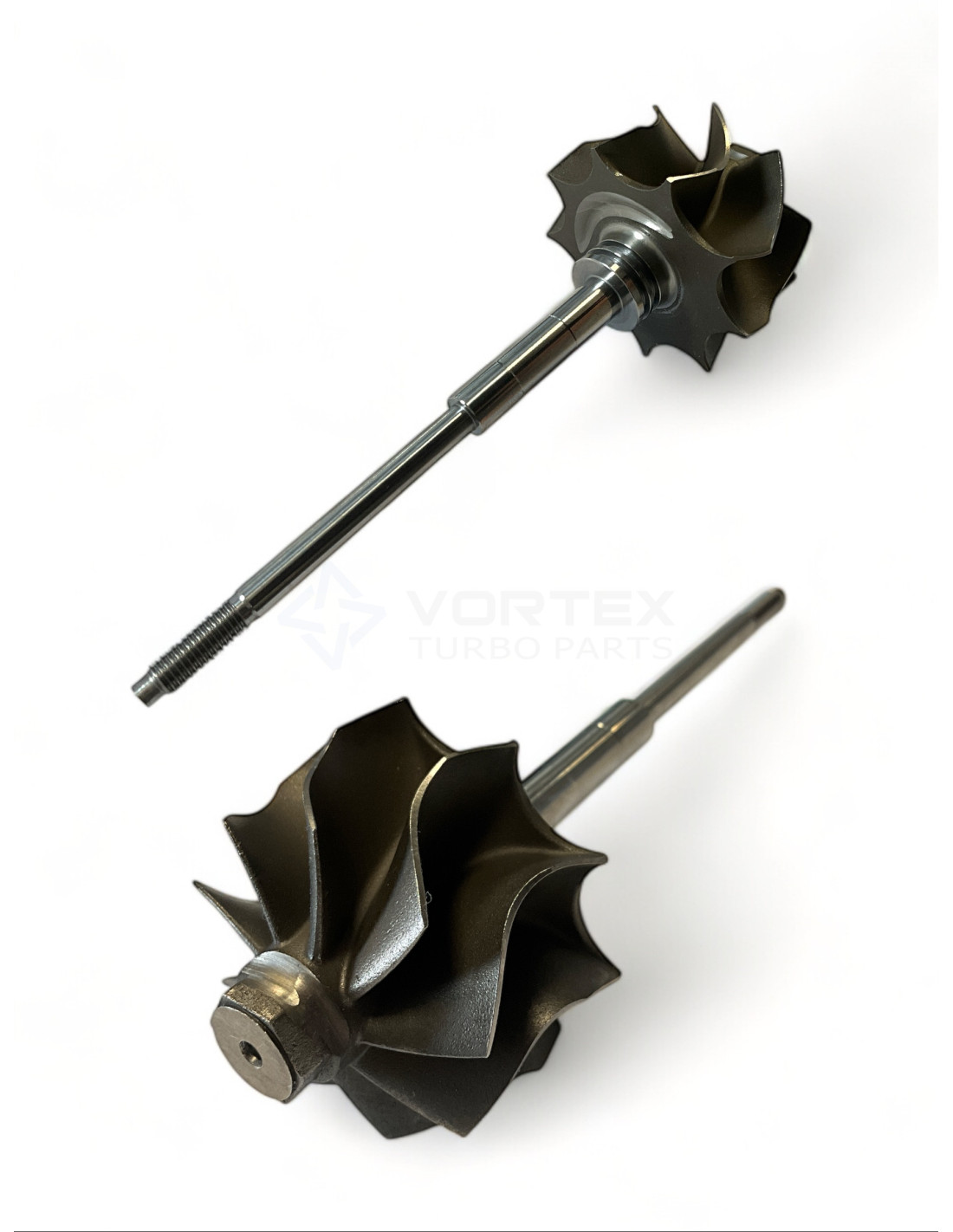

Shaft and wheel SW-G171
SW-G171
New
Shaft and wheel SW-G171 for turbos 761154-0003, 761154-0004, 761154-0007.
SW-G171 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-G171
SW-G171 - Compatibility table
| Shaft and wheel SW-G171 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | GT2056 | 761154-0003 | -- |
| Garrett | GT2056 | 761154-0004 | -- |
| Garrett | GT2056 | 761154-0007 | -- |

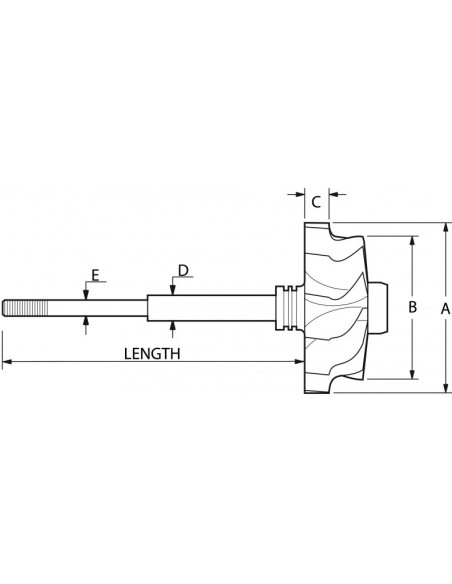

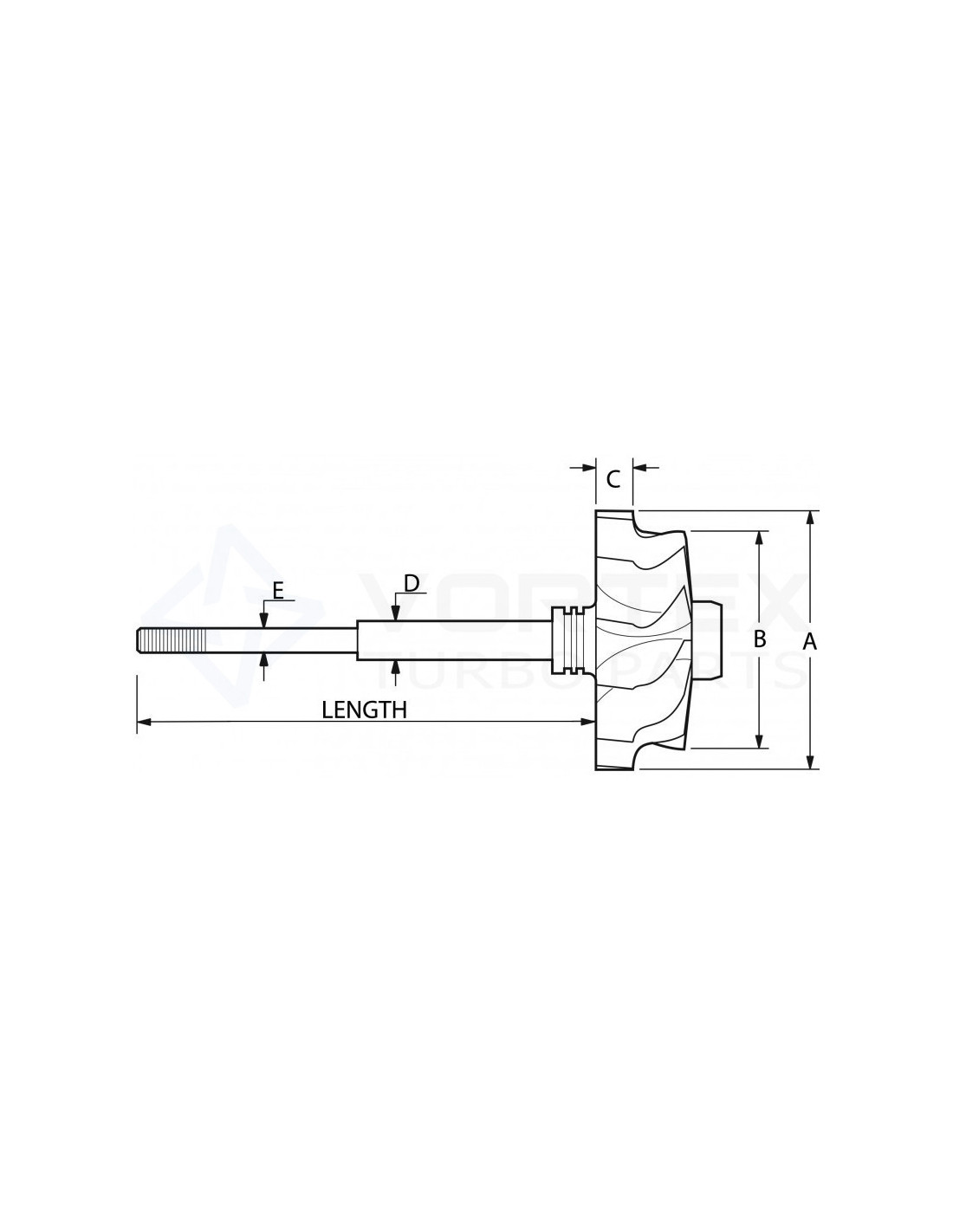

SW-G171 - Part Properties
Blades (Shaft blades count): 9
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 47.0
Exducer Diameter B (Exducer Diameter B): 42.3
Tip Height C (Tip Height C): 8.5
Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1
Shaft Length (mm) (Shaft Length (mm)): 99.0
Back (Back): Open
Piston Ring Type (Piston Ring Type): Twin
Model (Model): GT15-25
761154-0003, 761154-0004, 761154-0007
