Shaft and wheel SW-M028R
SW-M028R
New
In Stock
(7 Items)
€47.19
Tax included

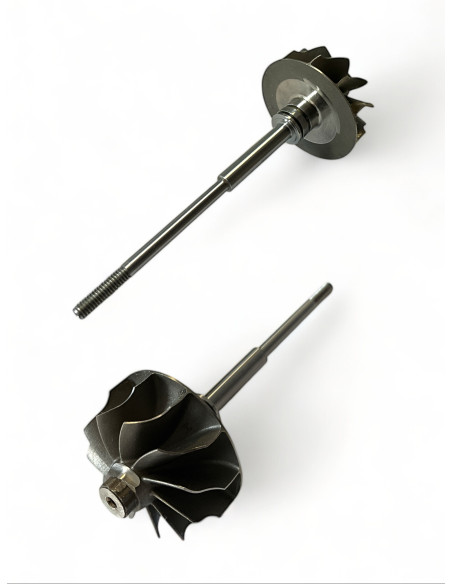

Shaft and wheel SW-M028R for turbos 49131-07400, 49131-07420, 49131-07430.
See below for more info.
SW-M028R - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-M028R
SW-M028R - Compatibility table
| Shaft and wheel SW-M028R - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Mitsubishi | TD03 | 49131-07400 | -- |
| Mitsubishi | TD03 | 49131-07420 | -- |
| Mitsubishi | TD03 | 49131-07430 | -- |

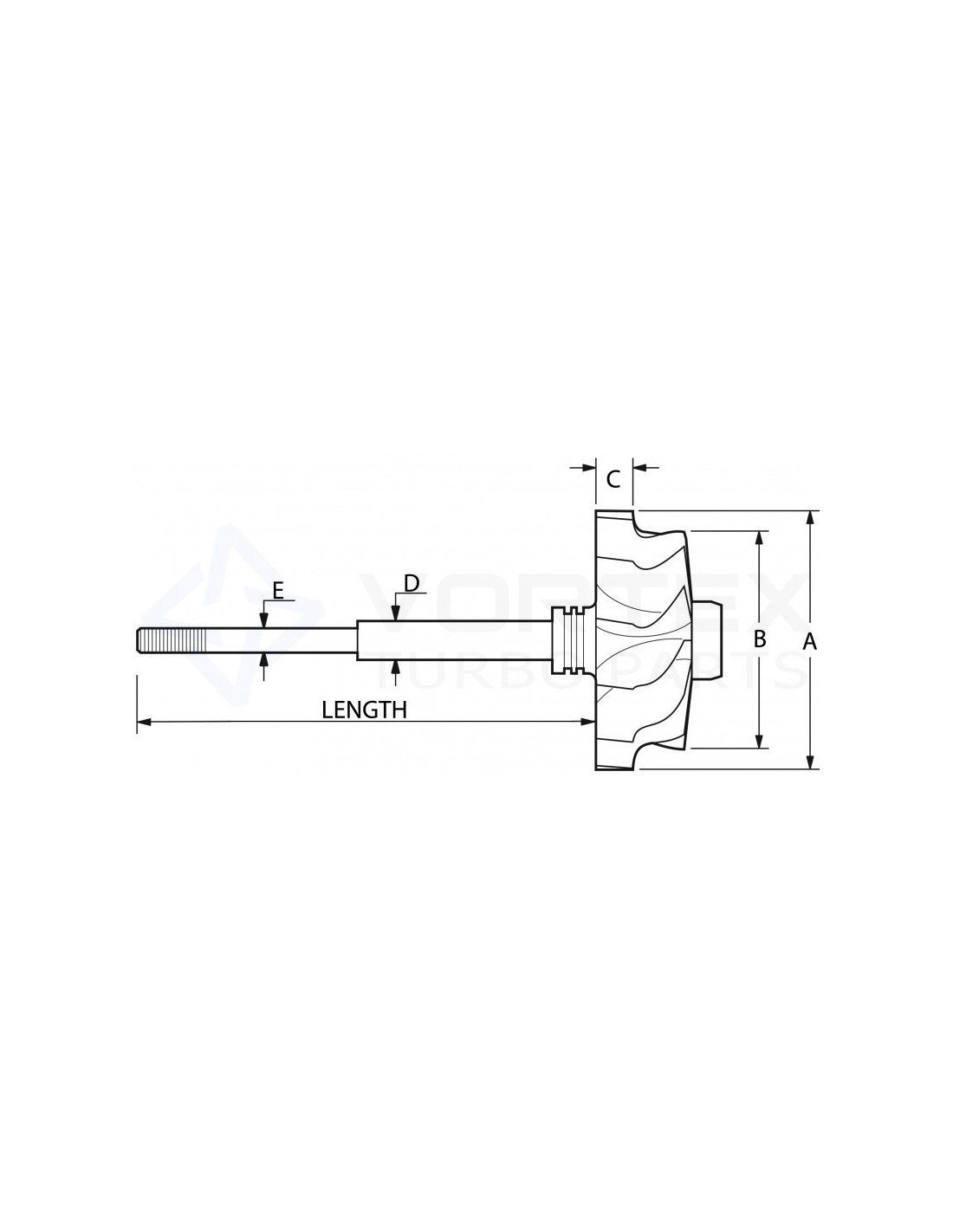

SW-M028R - Part Properties
Blades (Shaft blades count): 11
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 40.1
Exducer Diameter B (Exducer Diameter B): 35.1
Tip Height C (Tip Height C): 6.7
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0
Shaft Length (mm) (Shaft Length (mm)): 89.5
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Single
Rotation (Rotation): Reverse
Model (Model): TD025/TD03
49131-07400, 49131-07420, 49131-07430
Data updated: 2023-08-02 13:25:00
