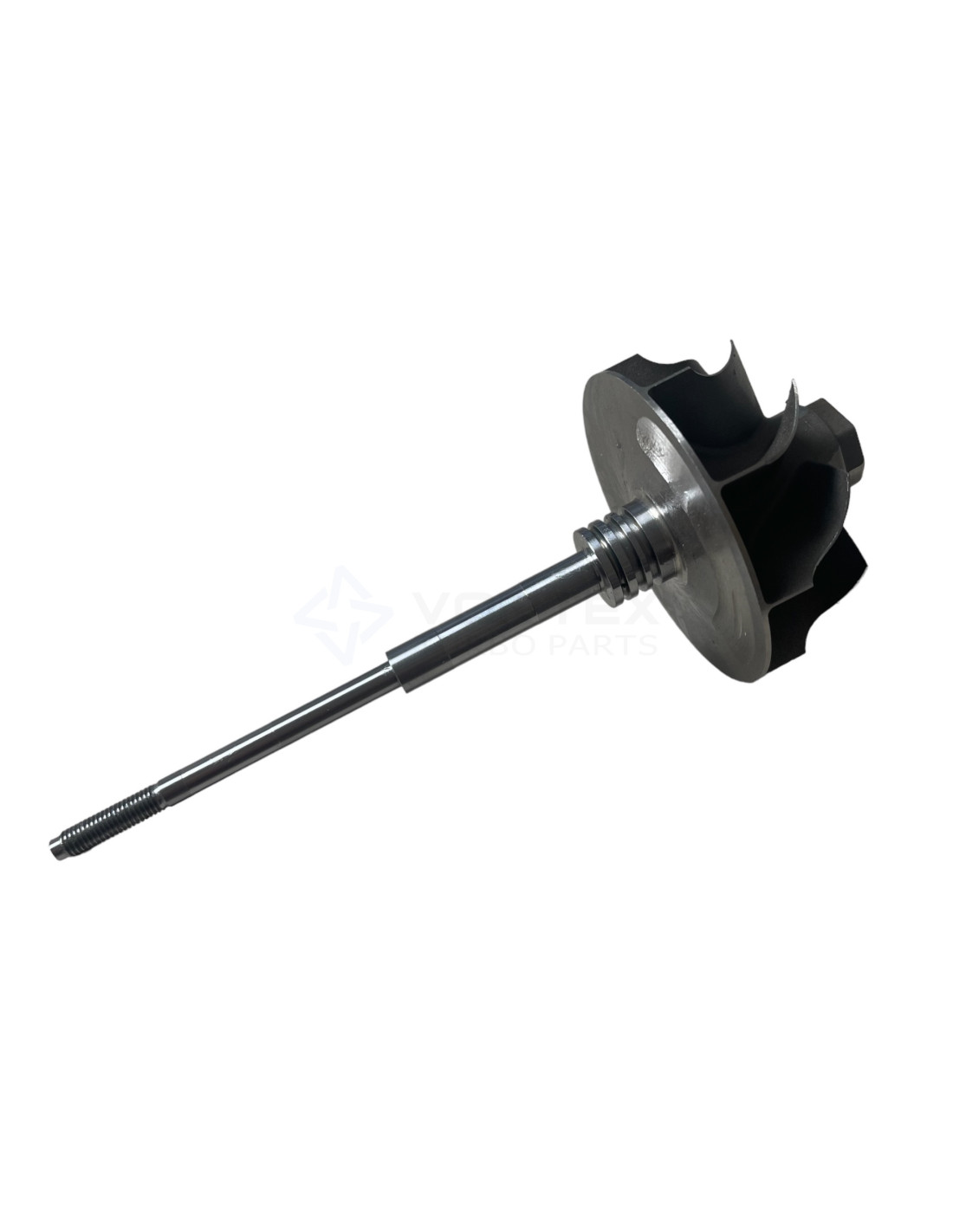

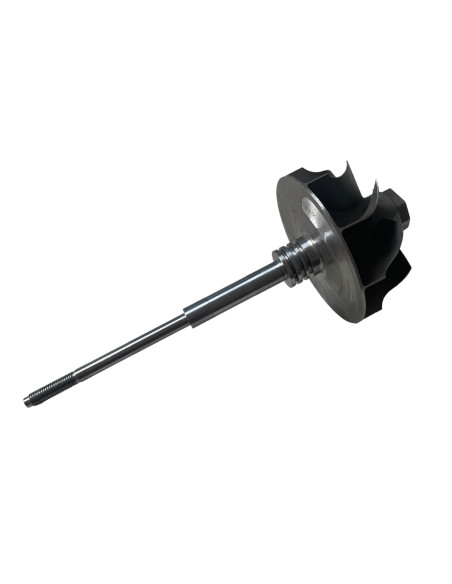

Shaft and wheel SW-G120
Shaft and wheel SW-G120
Shaft and wheel SW-G120
Shaft and wheel SW-G120

Shaft and wheel SW-G120

SW-G120
New
Please login to see prices and stock

Shaft and wheel SW-G120 for turbos 805713-0004-GT30, 805713-0007-GT30, 805713-0008-GT30, 805713-0009-GT30, 805714-0004(GT30), 805714-0007(GT30), 805714-0008(GT30), 805714-0009(GT30), 825965-0001, 830245-0005.



SW-G120 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G120

SW-G120 - Compatibility table

Shaft and wheel SW-G120 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT3067S805713-0004-GT30--
GarrettGT3067S805713-0007-GT30--
GarrettGT3067S805713-0008-GT30--
GarrettGT3067S805713-0009-GT30--
GarrettGT3067S805714-0004(GT30)--
GarrettGT3067S805714-0007(GT30)--
GarrettGT3067S805714-0008(GT30)--
GarrettGT3067S805714-0009(GT30)--
GarrettGT3067S825965-0001--
GarrettGT3067S830245-0005--
GarrettDSGT-GT3067S830245-0007--

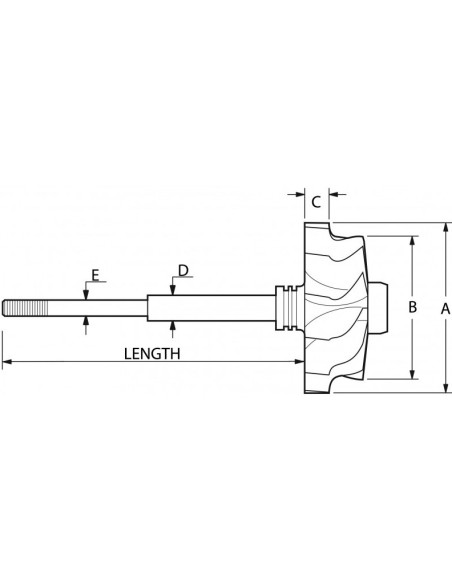

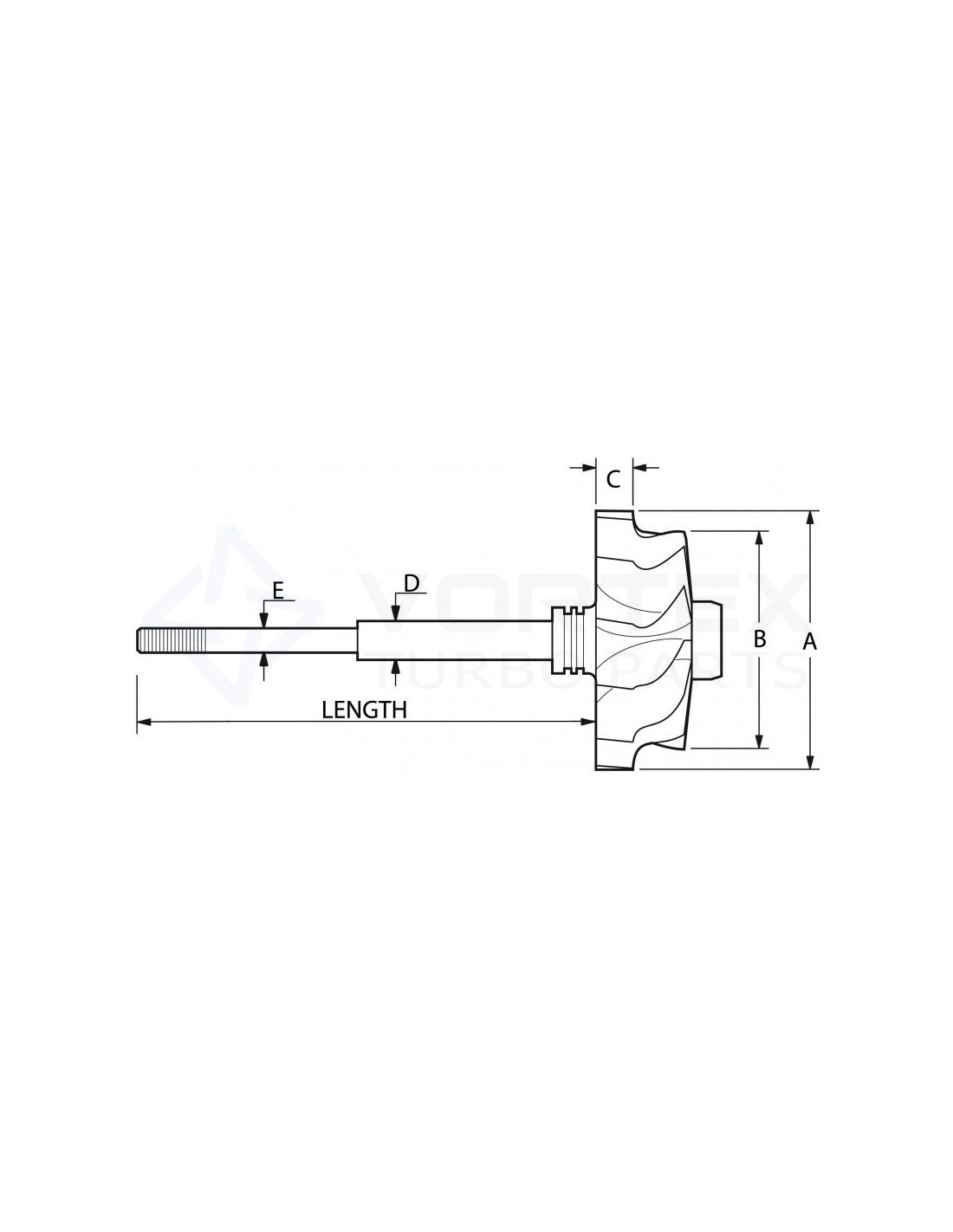

SW-G120 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 60.0

Exducer Diameter B (Exducer Diameter B): 50.5

Tip Height C (Tip Height C): 10.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 8.2

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT30

805713-0004-GT30, 805713-0007-GT30, 805713-0008-GT30, 805713-0009-GT30, 805714-0004(GT30), 805714-0007(GT30), 805714-0008(GT30), 805714-0009(GT30), 825965-0001, 830245-0005, 830245-0007

Data updated: 2025-11-05 15:43:44
