SW-M027R
New
Last items in stock (4 Items)
€44.04
Tax included

Shaft and wheel SW-M027R for turbos 49180-01600, 49180-01605, 49180-01610, 49180-01615, 49180-01620, 49180-01625, 49180-01630, 49180-01635, 49180-01640, 49180-01645.



SW-M027R - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-M027R

SW-M027R - Compatibility table

Shaft and wheel SW-M027R - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
MitsubishiTD02HMF49180-01600--
MitsubishiTD02HMF49180-01605--
MitsubishiTD02HMF49180-01610--
MitsubishiTD02HMF49180-01615--
MitsubishiTD02HMF49180-01620--
MitsubishiTD02HMF49180-01625--
MitsubishiTD02HMF49180-01630--
MitsubishiTD02HMF49180-01635--
MitsubishiTD02HMF49180-01640--
MitsubishiTD02HMF49180-01645--
MitsubishiTD02HMF49180-16200--
MitsubishiTD02HMF49897-70701--

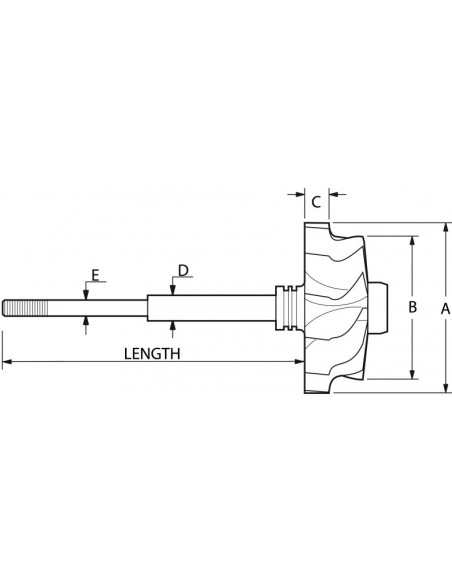

SW-M027R - Part Properties

Blades (Shaft blades count): 11.0

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 38.3

Exducer Diameter B (Exducer Diameter B): 31.3

Tip Height C (Tip Height C): 5.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0

Shaft Length (mm) (Shaft Length (mm)): 84.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Rotation (Rotation): Reverse

Model (Model): TD025/TD03

49180-01600, 49180-01605, 49180-01610, 49180-01615, 49180-01620, 49180-01625, 49180-01630, 49180-01635, 49180-01640, 49180-01645, 49180-16200, 49897-70701
