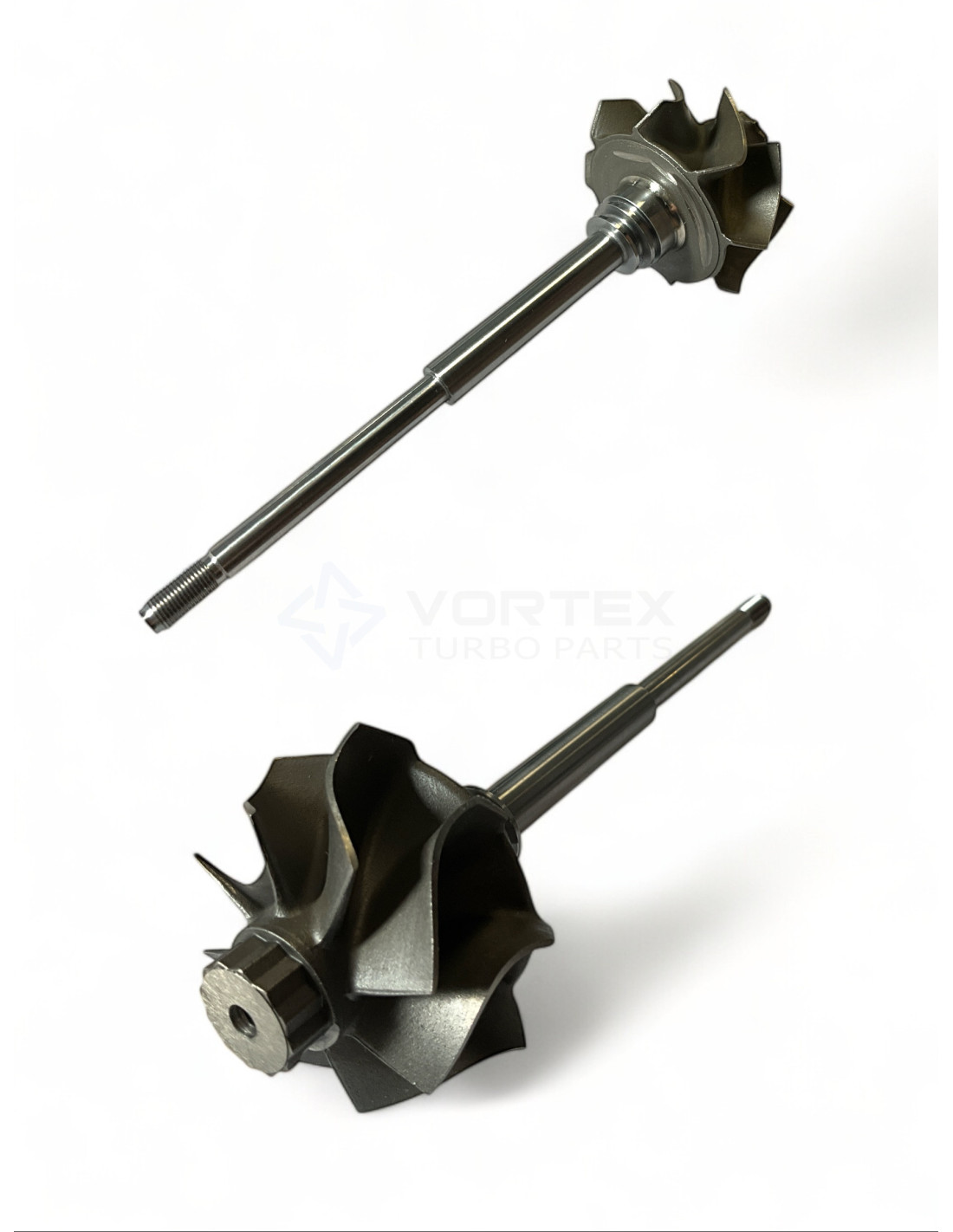

Shaft and wheel SW-I027
SW-I027
New
In Stock
(5 Items)
€40.90
Tax included
Shaft and wheel SW-I027 for turbos A2710903480, A2710903580, A2710903680, AL0065, AL0066.
SW-I027 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-I027
SW-I027 - Compatibility table
| Shaft and wheel SW-I027 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| IHI | RHF4 | A2710903480 | A2710903480 |
| IHI | RHF4 | A2710903580 | A2710903580 |
| IHI | RHF4 | A2710903680 | A2710903680 |
| IHI | RHF4 | AL0065 | -- |
| IHI | RHF4 | AL0066 | -- |
SW-I027 - Part Properties
Blades (Shaft blades count): 8
Type (Shaft & Wheel Type): Straight

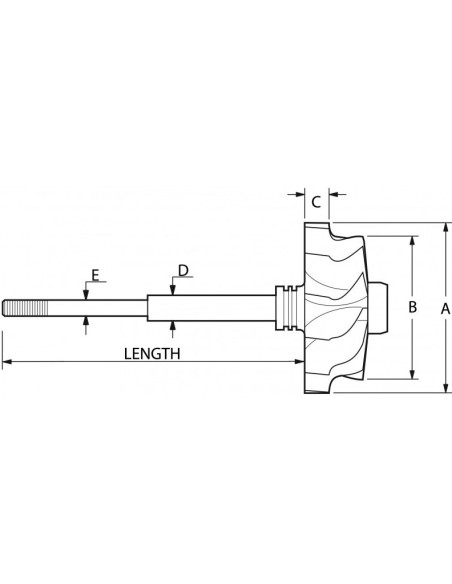

Inducer Diameter A (Inducer Diameter A): 44.0
Exducer Diameter B (Exducer Diameter B): 36.0
Tip Height C (Tip Height C): 6
Journal Bearing Diameter D (Journal Bearing Diameter D): 7.4
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1
Shaft Length (mm) (Shaft Length (mm)): 98.0
Back (Back): Open
Piston Ring Type (Piston Ring Type): Single
Model (Model): RHF4
A2710903480, A2710903580, A2710903680, AL0065, AL0066
Data updated: 2023-09-12 17:39:03
