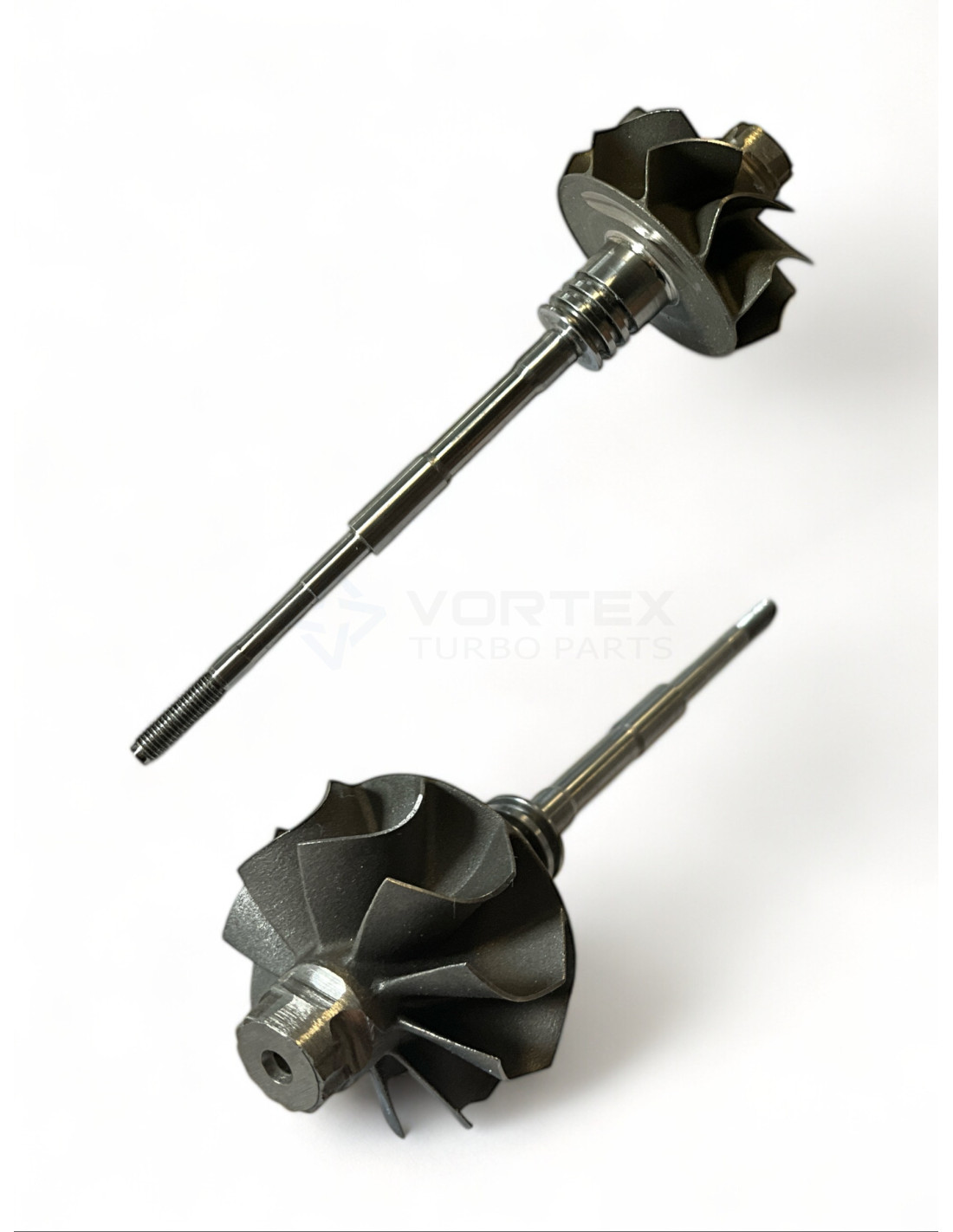

Shaft and wheel SW-G175R
SW-G175R
New
Please login to see prices and stock
Shaft and wheel SW-G175R for turbos 859253-0002, 870248-0001, 870248-0002, 887157-0001, 892092-0001.
SW-G175R - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-G175R
SW-G175R - Compatibility table
| Shaft and wheel SW-G175R - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | MGT1241 | 859253-0002 | -- |
| Garrett | MGT1241 | 870248-0001 | -- |
| Garrett | MGT1241 | 870248-0002 | -- |
| Garrett | MGT1241 | 887157-0001 | -- |
| Garrett | MGT12 | 892092-0001 | -- |
SW-G175R - Part Properties
Blades (Shaft blades count): 10
Type (Shaft & Wheel Type): Z Bearings
Inducer Diameter A (Inducer Diameter A): 31.5
Exducer Diameter B (Exducer Diameter B): 30.4
Tip Height C (Tip Height C): 6.0
Journal Bearing Diameter D (Journal Bearing Diameter D): 5.2
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 3.6
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Rotation (Rotation): Reverse
Model (Model): GT12
859253-0002, 870248-0001, 870248-0002, 887157-0001, 892092-0001
Data updated: 2025-10-15 21:16:03
