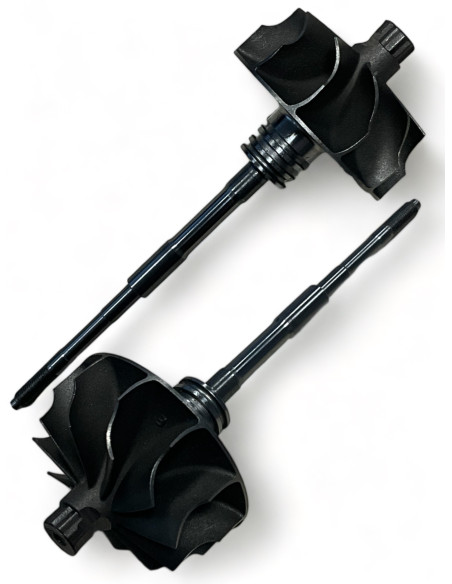

Shaft and wheel SW-G176
SW-G176
New
In Stock
(9 Items)
€47.19
Tax included
Shaft and wheel SW-G176 for turbos 840140-0006, 850229-0004, 850229-0007, 850229-0010, 850229-0011, 850840-0007, 850840-0009, 850841-0006, 850841-0007, 850841-0010.
SW-G176 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-G176
SW-G176 - Compatibility table
| Shaft and wheel SW-G176 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | GTE1449VZ | 840140-0006 | -- |
| Garrett | GTE1446VKZ | 850229-0004 | -- |
| Garrett | GTE1446VKZ | 850229-0007 | -- |
| Garrett | GTE1446VKZ | 850229-0010 | -- |
| Garrett | GTE1446VKZ | 850229-0011 | -- |
| Garrett | GTE1446VKZ | 850840-0007 | -- |
| Garrett | GTE1446VKZ | 850840-0009 | -- |
| Garrett | GTE1446VKZ | 850841-0006 | -- |
| Garrett | GTE1446VKZ | 850841-0007 | -- |
| Garrett | GTE1446VKZ | 850841-0010 | -- |
| Garrett | GTD1446VKZ | 852072-0002 | HG9Q-6K682-LA, HG9Q6K682LA |
| Garrett | GTD1446VKZ | 852072-0007 | HG9Q-6K682-LA, HG9Q6K682LA |
| Garrett | GTE1446VKZ | 860517-0002 | -- |
| Garrett | GTE1446VKZ | 860517-0003 | -- |
| Garrett | GTE1446VKZ | 872869-0001 | -- |
| Garrett | GTE1446VKZ | 872869-0003 | -- |
| Garrett | GTE1446VKZ | 877019-0002 | -- |
| Garrett | GTE1446VKZ | 877019-0003 | -- |
| Garrett | GTE1449KVZ | 877674-0004 | -- |
| Garrett | GTE1449KVZ | 877675-0001 | -- |
| Garrett | GTE1449KVZ | 877675-0003 | -- |
| Garrett | GTE1446VKZ | 898723-0002 | -- |
| Garrett | GTE1446VKZ | 898723-0003 | -- |
| Garrett | GTE1449KVZ | 900454-0001 | -- |
SW-G176 - Part Properties
Blades (Shaft blades count): 11
Type (Shaft & Wheel Type): Z Bearings
Inducer Diameter A (Inducer Diameter A): 39.0
Exducer Diameter B (Exducer Diameter B): 33.9
Tip Height C (Tip Height C): 7.4
Journal Bearing Diameter D (Journal Bearing Diameter D): 5.2
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 3.6
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Model (Model): GT14
840140-0006, 850229-0004, 850229-0007, 850229-0010, 850229-0011, 850840-0007, 850840-0009, 850841-0006, 850841-0007, 850841-0010, 852072-0002, HG9Q-6K682-LA, HG9Q6K682LA, 852072-0007, HG9Q-6K682-LA, HG9Q6K682LA, 860517-0002, 860517-0003, 872869-0001, 872869-0003, 877019-0002, 877019-0003, 877674-0004, 877675-0001, 877675-0003, 898723-0002, 898723-0003, 900454-0001
Data updated: 2025-02-20 17:52:55
