Shaft and wheel SW-B038R
Shaft and wheel SW-B038R
Shaft and wheel SW-B038R
Shaft and wheel SW-B038R

Shaft and wheel SW-B038R

SW-B038R
New
Last items in stock (1 Item)
€41.60

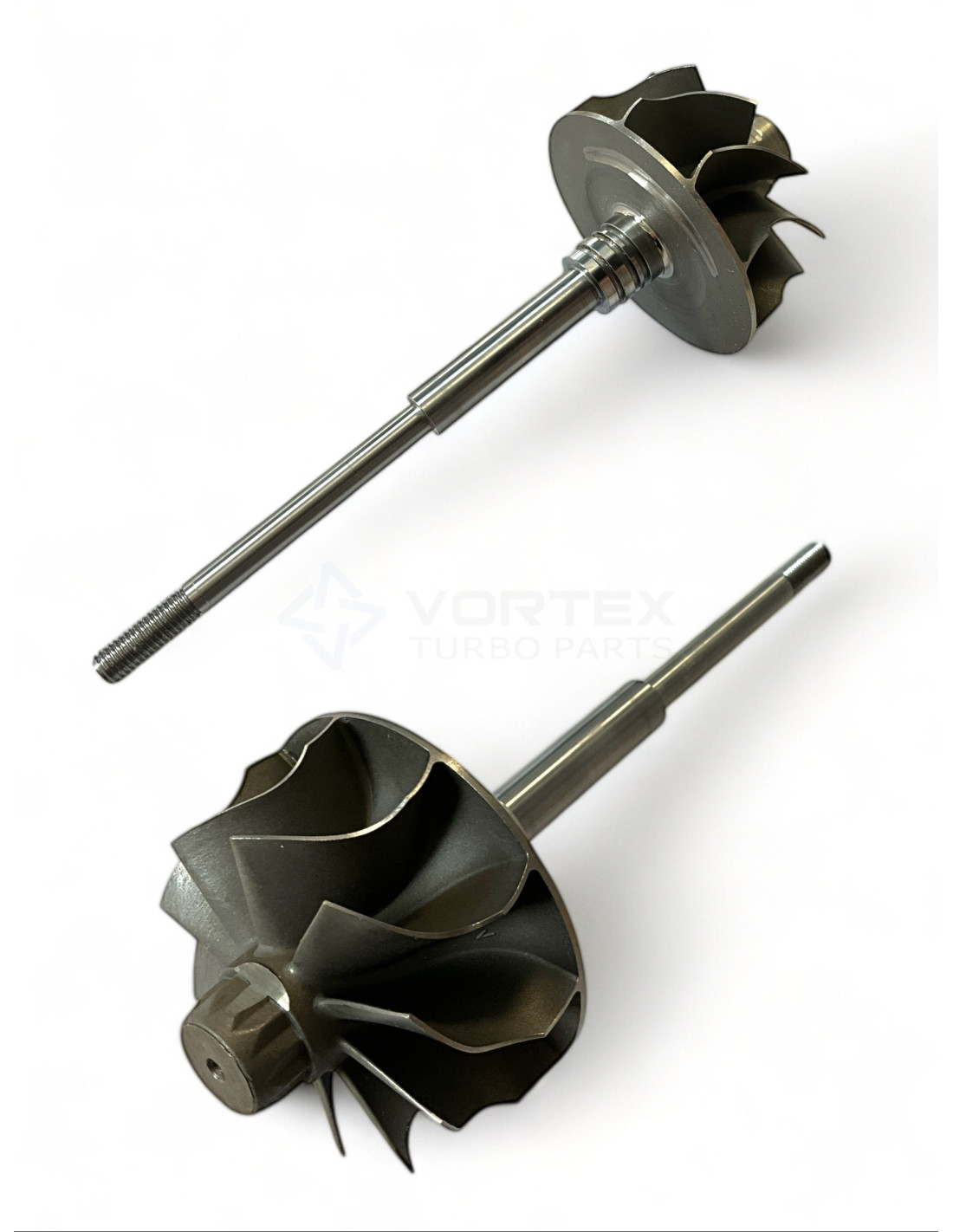

Shaft and wheel SW-B038R for turbos 18539700032, 18539700045, 18539700051, 18539700061, 18539700073, 18539700107.



SW-B038R - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-B038R

SW-B038R - Compatibility table

Shaft and wheel SW-B038R - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
BorgWarnerB0318539700032--
BorgWarnerB0318539700045--
BorgWarnerB0318539700051--
BorgWarnerB0318539700061--
BorgWarnerB0318539700073--
BorgWarnerB0318539700107--

SW-B038R - Part Properties

Blades (Shaft blades count): 10

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 53.0

Exducer Diameter B (Exducer Diameter B): 47.15

Tip Height C (Tip Height C): 8.1

Journal Bearing Diameter D (Journal Bearing Diameter D): 8.5

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.5

Shaft Length (mm) (Shaft Length (mm)): 107.5

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Rotation (Rotation): Reverse

Model (Model): B03


1853-970-0032, 1853-970-0045, 1853-970-0051, 1853-970-0061, 1853-970-0073, 1853-970-0107

Data updated: 2024-01-23 16:12:04
