SW-G177
New
Last items in stock (3 Items)
€40.90
Tax included

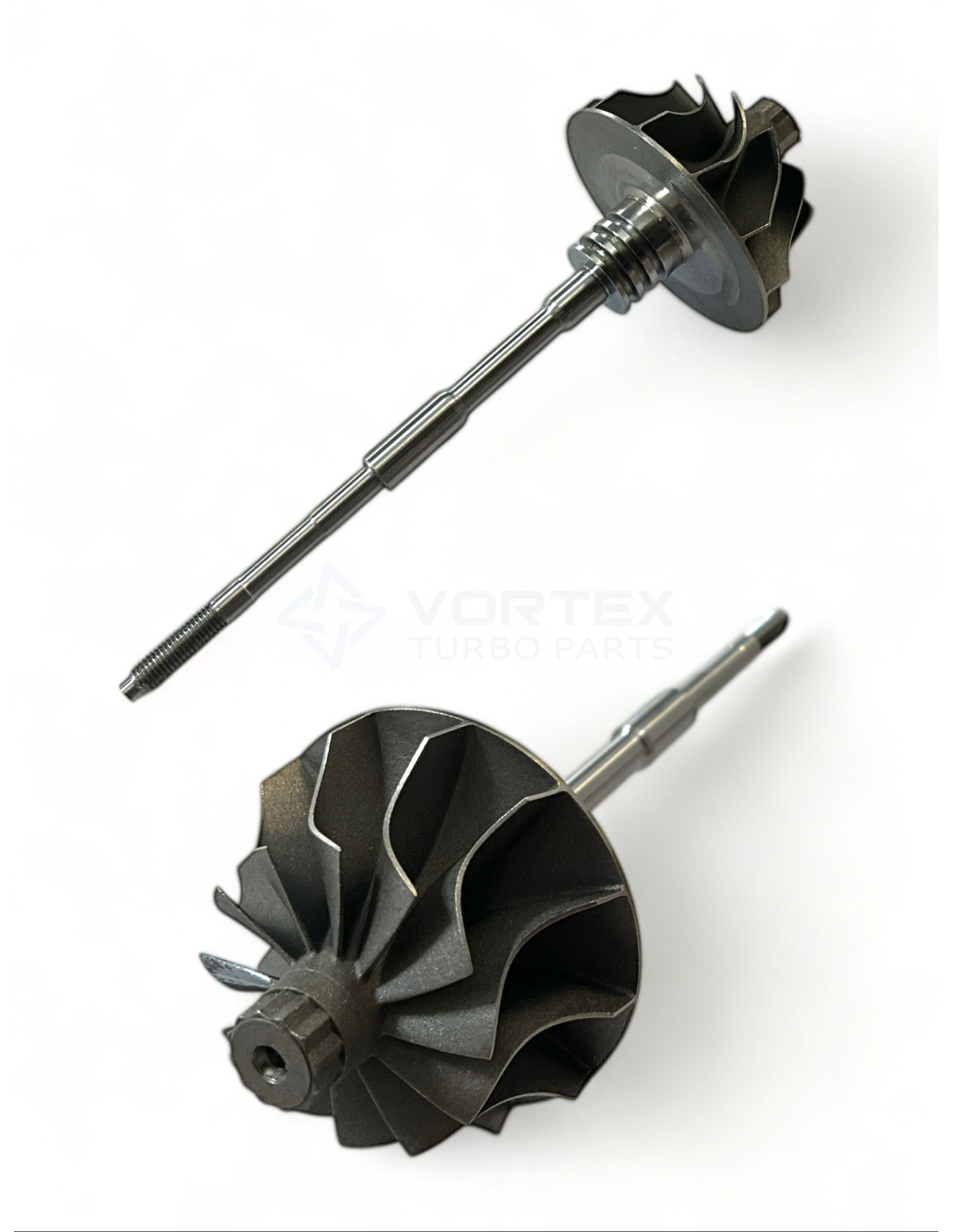

Shaft and wheel SW-G177 for turbos 858866-0002, 858866-0003, 858866-0004, 858866-0005.



SW-G177 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G177

SW-G177 - Compatibility table

Shaft and wheel SW-G177 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT12858866-0002--
GarrettGT12858866-0003--
GarrettGT12858866-0004--
GarrettGT12858866-0005--

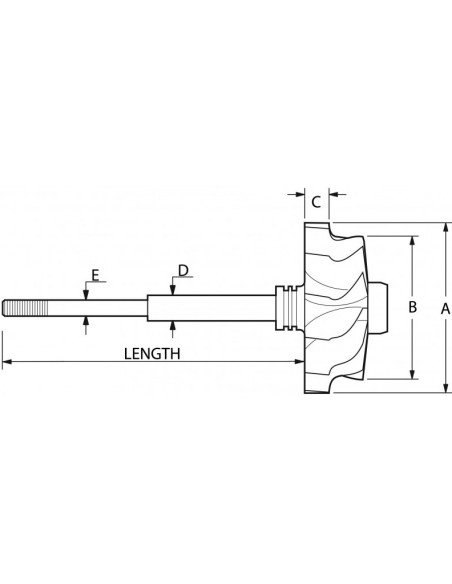

SW-G177 - Part Properties

Blades (Shaft blades count): 12

Type (Shaft & Wheel Type): Z Bearings

Inducer Diameter A (Inducer Diameter A): 35.8

Exducer Diameter B (Exducer Diameter B): 25.9

Tip Height C (Tip Height C): 4.6

Journal Bearing Diameter D (Journal Bearing Diameter D): 5.2

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 3.6

Shaft Length (mm) (Shaft Length (mm)): 79.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT12


858866-0002, 858866-0003, 858866-0004, 858866-0005
