SW-K075
New
Last items in stock (1 Item)
€42.47
Tax included

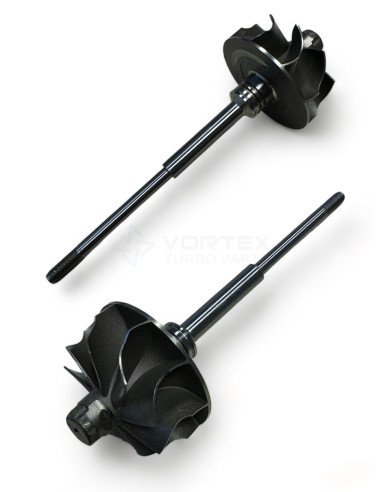

Shaft and wheel SW-K075 for turbos 174597000013, 17459700002, 17459700006, 17459700007, 17459700009, 17459700010, 17459700011, 17459700017, 17459700019.



SW-K075 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-K075

SW-K075 - Compatibility table

Shaft and wheel SW-K075 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
BorgWarnerBV45174597000013--
BorgWarnerBV4517459700002--
BorgWarnerBV4517459700006--
BorgWarnerBV4517459700007--
BorgWarnerBV4517459700009--
BorgWarnerBV4517459700010--
BorgWarnerBV4517459700011--
BorgWarnerBV4517459700017--
BorgWarnerBV4517459700019--

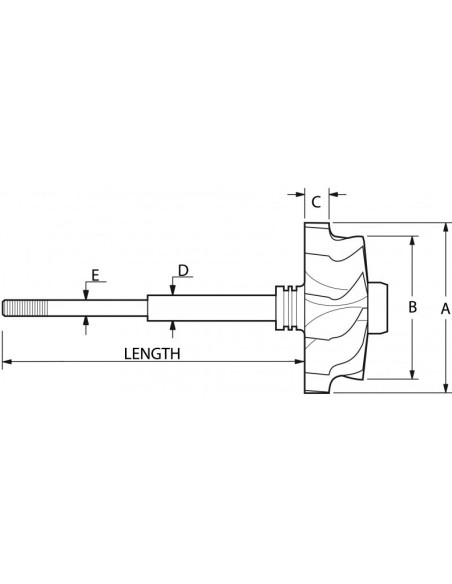

SW-K075 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 45.0

Exducer Diameter B (Exducer Diameter B): 39.9

Tip Height C (Tip Height C): 7.9

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.6

Shaft Length (mm) (Shaft Length (mm)): 104.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): BV45

17459700013, 17459700002, 17459700006, 17459700007, 17459700009, 17459700010, 17459700011, 17459700017, 17459700019

Data updated: 2024-02-06 17:01:48
