SW-G001R
New
Last items in stock (3 Items)
€36.40

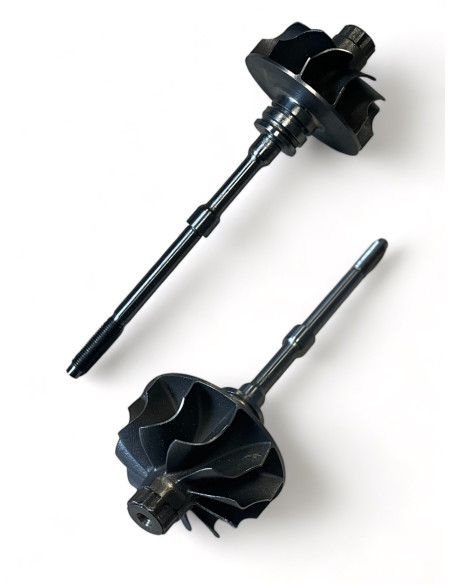

Shaft and wheel SW-G001R for turbos 822053-0001, 822267-0001.



SW-G001R - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G001R

SW-G001R - Compatibility table

Shaft and wheel SW-G001R - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettNGT1038Z822053-0001104103R, 144104103R, 144104103RC
GarrettNGT1038Z822267-0001--

SW-G001R - Part Properties

Blades (Shaft blades count): 11

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 34.0

Exducer Diameter B (Exducer Diameter B): 29.8

Tip Height C (Tip Height C): 5.7

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0

Shaft Length (mm) (Shaft Length (mm)): 79.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Single

Rotation (Rotation): Reverse

Model (Model): GT10


104103R, 144104103R, 144104103RC, 822053-0001, 822267-0001
