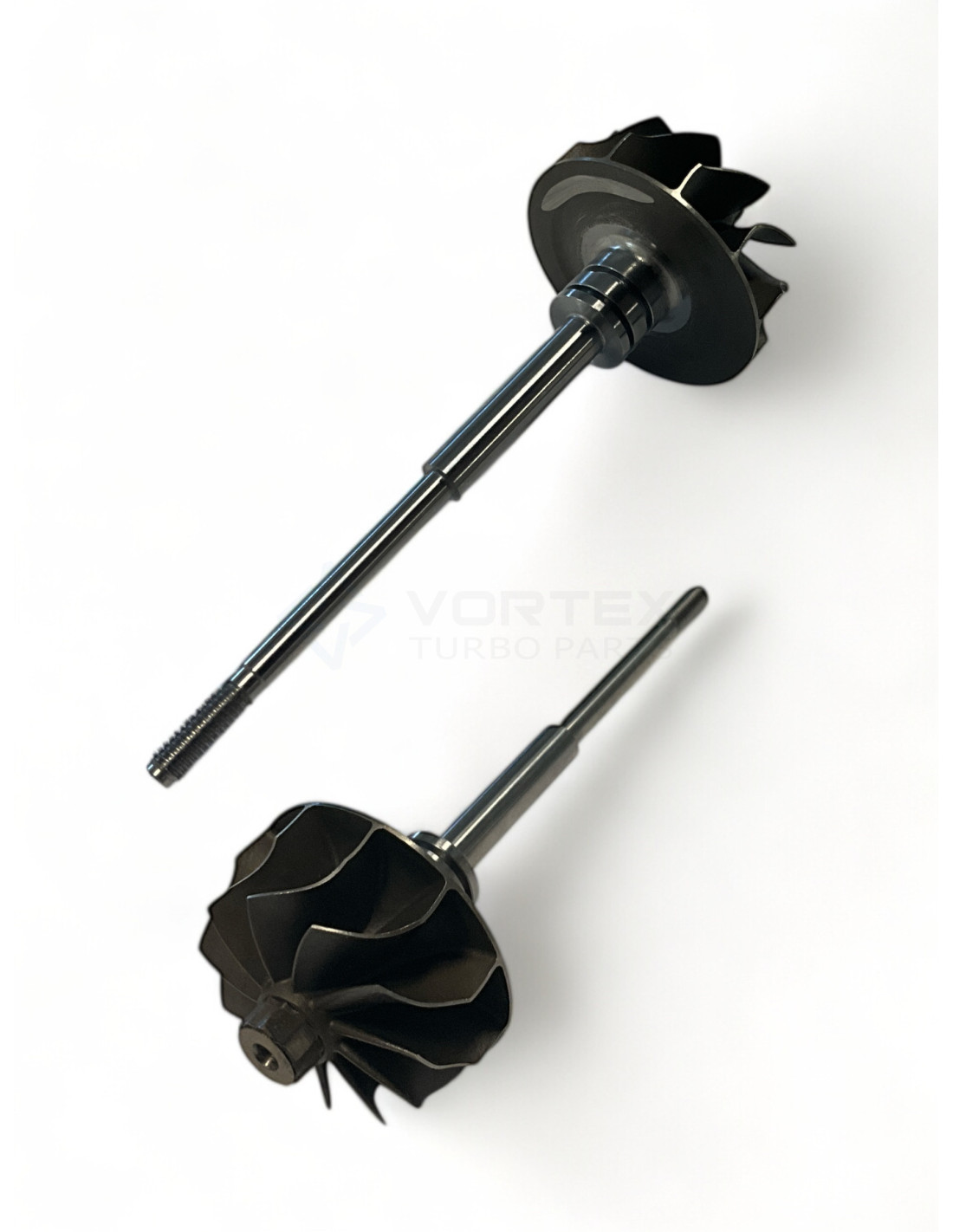

Shaft and wheel SW-M005R

Shaft and wheel SW-M005R

SW-M005R
New
In Stock (7 Items)
€69.21
Tax included

Shaft and wheel SW-M005R for turbos 49180-01400, 49180-01405, 49180-01406, 49180-01420, 49180-01424, 49180-01425, 49180-01430, 49180-01431, 49180-02500, 49180-03101.



SW-M005R - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-M005R

SW-M005R - Compatibility table

Shaft and wheel SW-M005R - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
MitsubishiTD02549180-01400--
MitsubishiTD02549180-01405--
MitsubishiTD02549180-01406--
MitsubishiTD02549180-01420--
MitsubishiTD02549180-01424--
MitsubishiTD02549180-01425--
MitsubishiTD04L4bR-03*07WDT-2.749180-0143004E145722G
MitsubishiTD04L4bR-03*07WDT-2.749180-01431--
MitsubishiTD025L49180-02500--
MitsubishiTD02L49180-03101--
MitsubishiTD02L49180-03102--
MitsubishiTD025L49180-04010--
MitsubishiTD025L49180-04011--
MitsubishiTD025L49180-04020--
MitsubishiTD025L49180-04030--
MitsubishiTD025L49180-04051--
MitsubishiTD025L49180-04052--
MitsubishiTD025L49180-0405312679375
MitsubishiTD025L49180-04054--
MitsubishiTD025L49180-04055--
MitsubishiTD025L49180-04056--
MitsubishiTD025L49180-04061--
MitsubishiTD025L49180-04062--
MitsubishiTD025L49180-04063--
MitsubishiTD025L49180-04064--
MitsubishiTD025L49180-04065--
MitsubishiTD025L49180-04066--
MitsubishiTD025L49180-04067--
MitsubishiTD025L49180-0407012668297
MitsubishiTD025L49180-04071--
MitsubishiTD025L49180-04072--
MitsubishiTD025L49180-04073--
MitsubishiTD025L49180-04074--
MitsubishiTD025L49180-04075--
MitsubishiTD025L49180-04076--
MitsubishiTD025L49180-04080--
MitsubishiTD025L49180-04081--
MitsubishiTD025L49180-04082--
MitsubishiTD025L49180-04083--
MitsubishiTD025L49180-04084--
MitsubishiTD025L49180-04085--
MitsubishiTD025L49180-04090--
MitsubishiTD025L49180-04091--
MitsubishiTD025L49180-04092--
MitsubishiTD025L49180-04093--
MitsubishiTD025L49180-04094--
MitsubishiTD025L49180-04095--
MitsubishiTD025L49180-04096--
MitsubishiTD025L49180-04100--
MitsubishiTD025L49180-04150--
MitsubishiTD025L49180-04155--
MitsubishiTD025L49180-04160--
MitsubishiTD025L49180-04200--
MitsubishiTD025L49180-04220--
MitsubishiTD025L49180-04230--
MitsubishiTD025LBR49180-04310--
MitsubishiTD025LBR49180-04320--
MitsubishiTD025LBR49180-04340--
MitsubishiTD025LBR49180-04350--

SW-M005R - Part Properties

Blades (Shaft blades count): 11

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 37.0

Exducer Diameter B (Exducer Diameter B): 32.3

Tip Height C (Tip Height C): 6.8

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0

Shaft Length (mm) (Shaft Length (mm)): 83.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Single

Rotation (Rotation): Reverse

Model (Model): TD025


49180-01400, 49180-01405, 49180-01406, 49180-01420, 49180-01424, 49180-01425, 04E145722G, 49180-01430, 49180-01431, 49180-02500, 49180-03101, 49180-03102, 49180-04010, 49180-04011, 49180-04020, 49180-04030, 49180-04051, 49180-04052, 12679375, 49180-04053, 49180-04054, 49180-04055, 49180-04056, 49180-04061, 49180-04062, 49180-04063, 49180-04064, 49180-04065, 49180-04066, 49180-04067, 12668297, 49180-04070, 49180-04071, 49180-04072, 49180-04073, 49180-04074, 49180-04075, 49180-04076, 49180-04080, 49180-04081, 49180-04082, 49180-04083, 49180-04084, 49180-04085, 49180-04090, 49180-04091, 49180-04092, 49180-04093, 49180-04094, 49180-04095, 49180-04096, 49180-04100, 49180-04150, 49180-04155, 49180-04160, 49180-04200, 49180-04220, 49180-04230, 49180-04310, 49180-04320, 49180-04340, 49180-04350

Data updated: 2024-07-08 16:17:10
