SW-I050
New
In Stock (5 Items)
€37.18

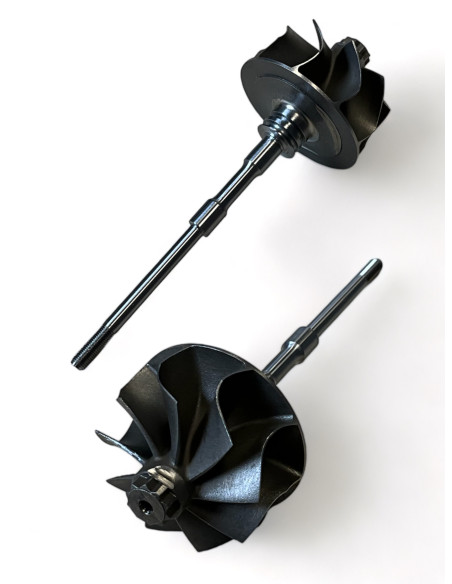

Shaft and wheel SW-I050 for turbos 17201-11080.



SW-I050 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-I050

SW-I050 - Compatibility table

Shaft and wheel SW-I050 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
ToyotaCT-VNT17201-11080--

SW-I050 - Part Properties

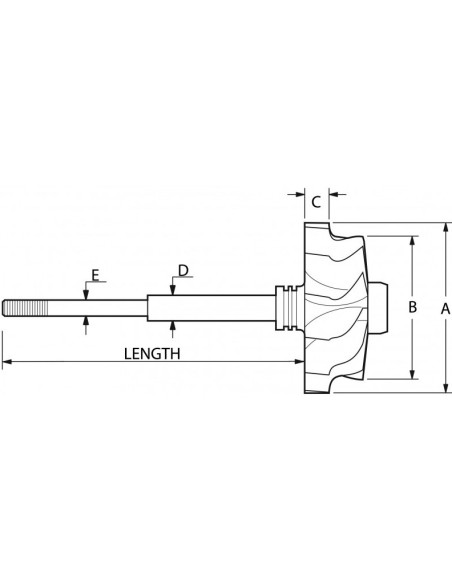

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 41.4

Exducer Diameter B (Exducer Diameter B): 38.0

Tip Height C (Tip Height C): 8.7

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.5

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0

Shaft Length (mm) (Shaft Length (mm)): 88.0

Back (Back): Closed

17201-11080

Data updated: 2024-04-22 12:03:34
