Shaft and wheel SW-G179
Shaft and wheel SW-G179
Shaft and wheel SW-G179
Shaft and wheel SW-G179

Shaft and wheel SW-G179

SW-G179
New
In Stock (7 Items)
€30.68

Shaft and wheel SW-G179 for turbos 845275-0001, 853603-0001, 853603-0002.



SW-G179 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G179

SW-G179 - Compatibility table

Shaft and wheel SW-G179 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT12845275-0001--
GarrettGT12853603-0001--
GarrettGT12853603-0002--

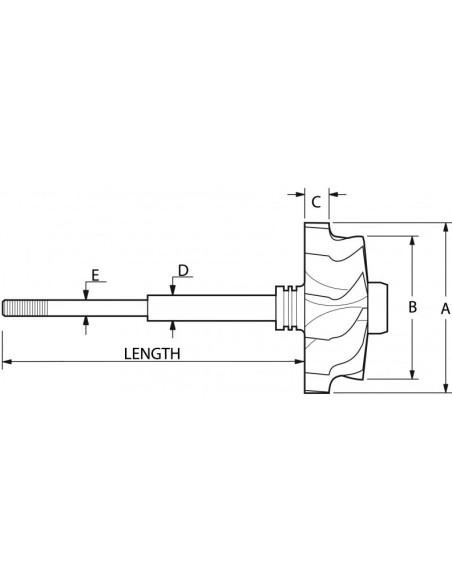

SW-G179 - Part Properties

Blades (Shaft blades count): 11

Type (Shaft & Wheel Type): Z Bearings

Inducer Diameter A (Inducer Diameter A): 36.0

Exducer Diameter B (Exducer Diameter B): 32.7

Tip Height C (Tip Height C): 7.1

Journal Bearing Diameter D (Journal Bearing Diameter D): 5.2

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 3.5

Shaft Length (mm) (Shaft Length (mm)): 79.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT12


845275-0001, 853603-0001, 853603-0002

Data updated: 2024-04-19 13:32:16
