Shaft and wheel SW-B008
SW-B008
New
Last items in stock
(3 Items)
€59.77
Tax included

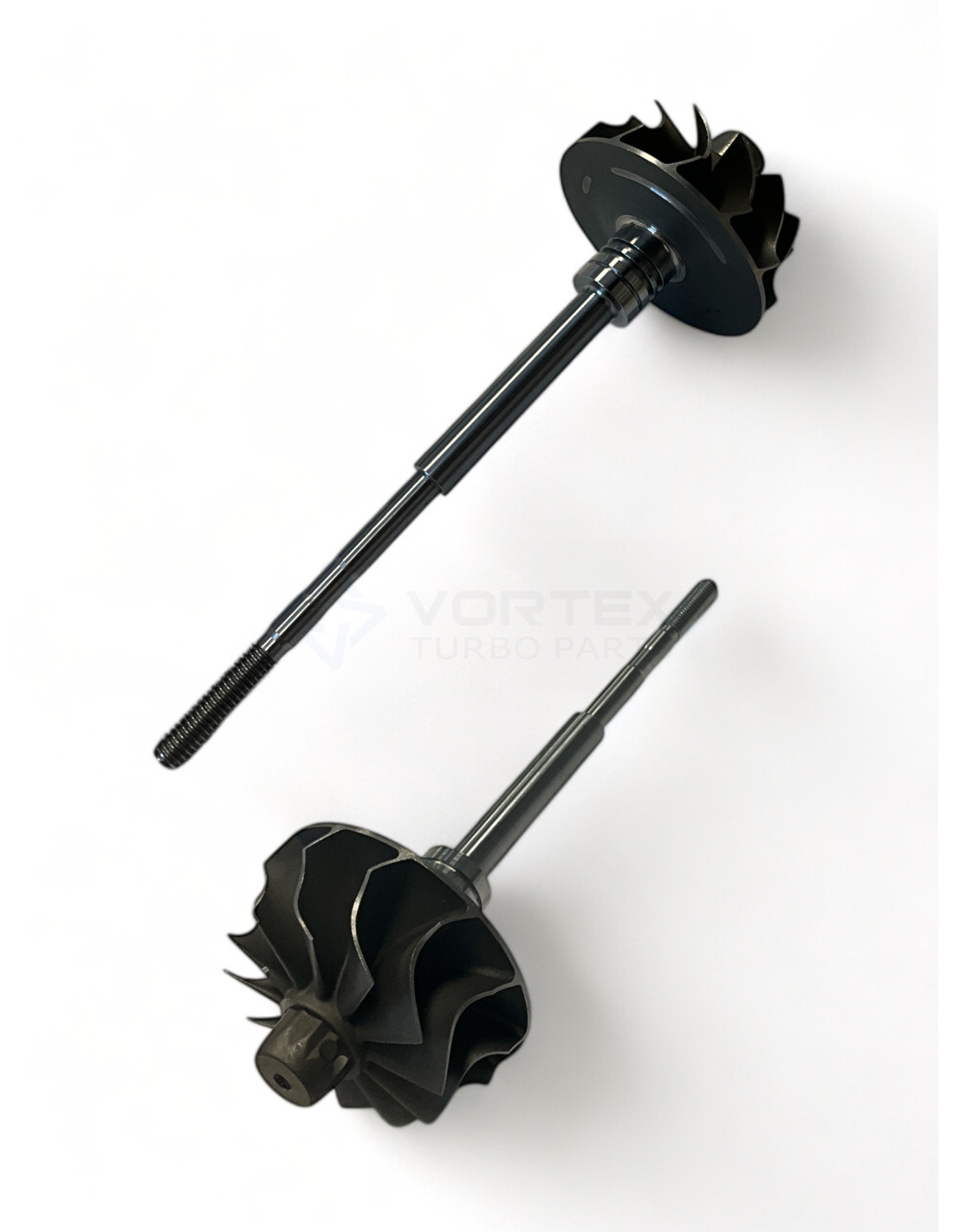

Shaft and wheel SW-B008 for turbos 11559700000, 11559700006, 11559700017, 11559700033.
SW-B008 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-B008
SW-B008 - Compatibility table
| Shaft and wheel SW-B008 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| BorgWarner | B1UG | 11559700000 | -- |
| BorgWarner | B1UG | 11559700006 | -- |
| BorgWarner | (R2S) B1UG | 11559700017 | -- |
| BorgWarner | (R2S) B1UG | 11559700033 | -- |
SW-B008 - Part Properties
Blades (Shaft blades count): 12
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 54.9
Exducer Diameter B (Exducer Diameter B): 46.1
Tip Height C (Tip Height C): 7.3
Journal Bearing Diameter D (Journal Bearing Diameter D): 8.6
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 6.0
Shaft Length (mm) (Shaft Length (mm)): 130.0
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Model (Model): B1
11559700033, 11559700017, 11559700006, 11559700000, 1155 970 0000, 1155 970 0006, 1155 970 0017, 1155 970 0033
Data updated: 2024-11-28 17:09:08
