Shaft and wheel SW-CO004R
SW-CO004R
New
In Stock
(5 Items)
€50.34
Tax included

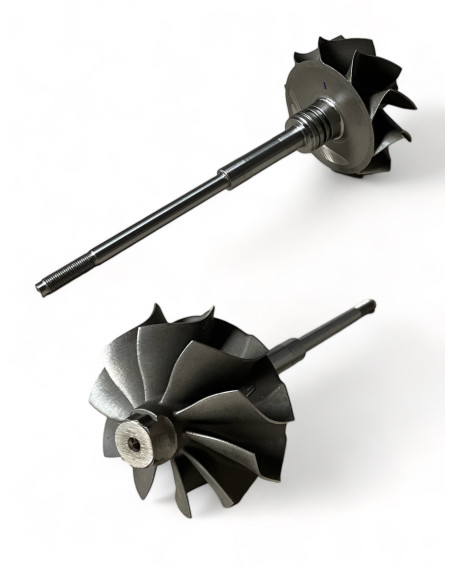

Shaft and wheel SW-CO004R for turbos 06Q145703C, 06Q145703F.
SW-CO004R - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-CO004R
SW-CO004R - Compatibility table
| Shaft and wheel SW-CO004R - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Continental | GTDI12v | 06Q145703C | -- |
| Continental | GTDI12v | 06Q145703F | -- |
SW-CO004R - Part Properties
Blades (Shaft blades count): 10
Type (Shaft & Wheel Type): Straight

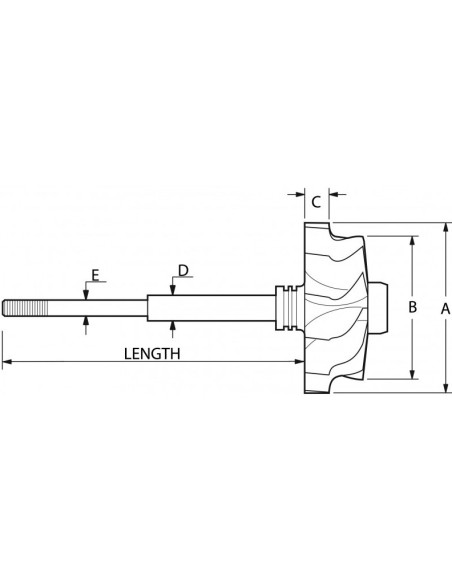

Inducer Diameter A (Inducer Diameter A): 40.0
Exducer Diameter B (Exducer Diameter B): 44.0
Tip Height C (Tip Height C): 6.4
Journal Bearing Diameter D (Journal Bearing Diameter D): 7.2
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.8
Shaft Length (mm) (Shaft Length (mm)): 104.0
Back (Back): Open
Piston Ring Type (Piston Ring Type): Twin
Rotation (Rotation): Reverse
Model (Model): GTDI12V
06Q145703C, 06Q145703F
