SW-B040
New
In Stock (7 Items)
€31.20

Shaft and wheel SW-B040 for turbos 16359700028.



SW-B040 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-B040

SW-B040 - Compatibility table

Shaft and wheel SW-B040 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
BorgWarnerB0116359700028--

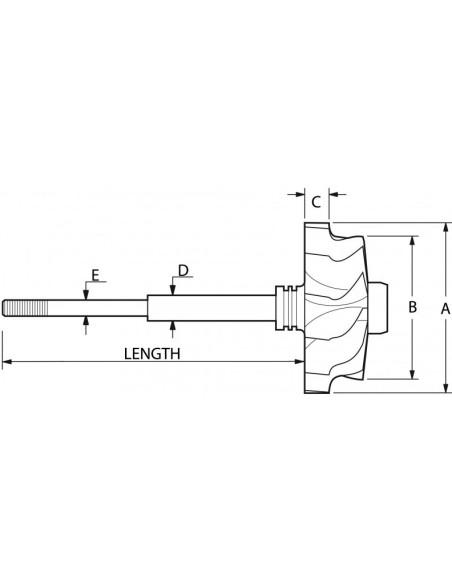

SW-B040 - Part Properties

Blades (Shaft blades count): 10

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 35.0

Exducer Diameter B (Exducer Diameter B): 31.5

Tip Height C (Tip Height C): 6.2

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.1

Shaft Length (mm) (Shaft Length (mm)): 84.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): B01


16359700028
