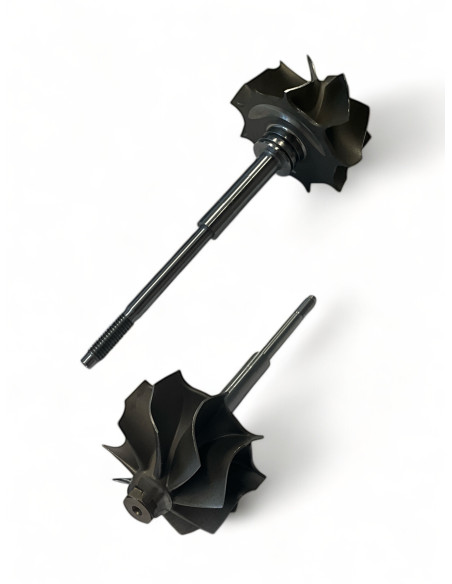

Shaft and wheel SW-G181
Shaft and wheel SW-G181

Shaft and wheel SW-G181

SW-G181
New

434882-0012, SW-G181

Shaft and wheel SW-G181 for turbos 452187-0001, 452187-0003, 452187-0005, 452187-0006, 709683-0002, 709693-0001, 710811-0001, 710811-0002, 710812-0001, 710812-0002.



SW-G181 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G181

SW-G181 - Alternative numbers

GHO (Garrett original part number): 434882-0012

SW-G181 - Compatibility table

Shaft and wheel SW-G181 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT22452187-0001--
GarrettGT22452187-0003--
GarrettGT22452187-0005--
GarrettGT22452187-0006--
GarrettGT22709683-0002--
GarrettGT22709693-0001--
GarrettGT2256V710811-000146769104, 55191597
GarrettGT2256V710811-000246769104, 55191597
GarrettGT2256V710812-0001--
GarrettGT2256V710812-0002--
GarrettGT225716625-0001--
GarrettGT2256V716626-0001--
GarrettGT22750639-0002--

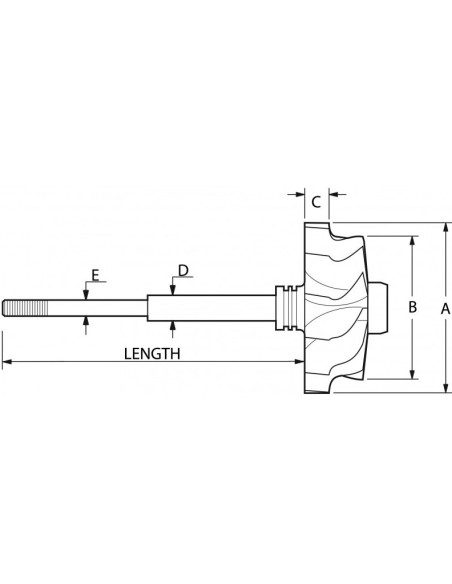

SW-G181 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 50.0

Exducer Diameter B (Exducer Diameter B): 42.7

Tip Height C (Tip Height C): 8.2

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25


452187-0001, 452187-0003, 452187-0005, 452187-0006, 709683-0002, 709693-0001, 46769104, 55191597, 710811-0001, 46769104, 55191597, 710811-0002, 710812-0001, 710812-0002, 716625-0001, 716626-0001, 750639-0002

Data updated: 2025-02-12 12:14:31
