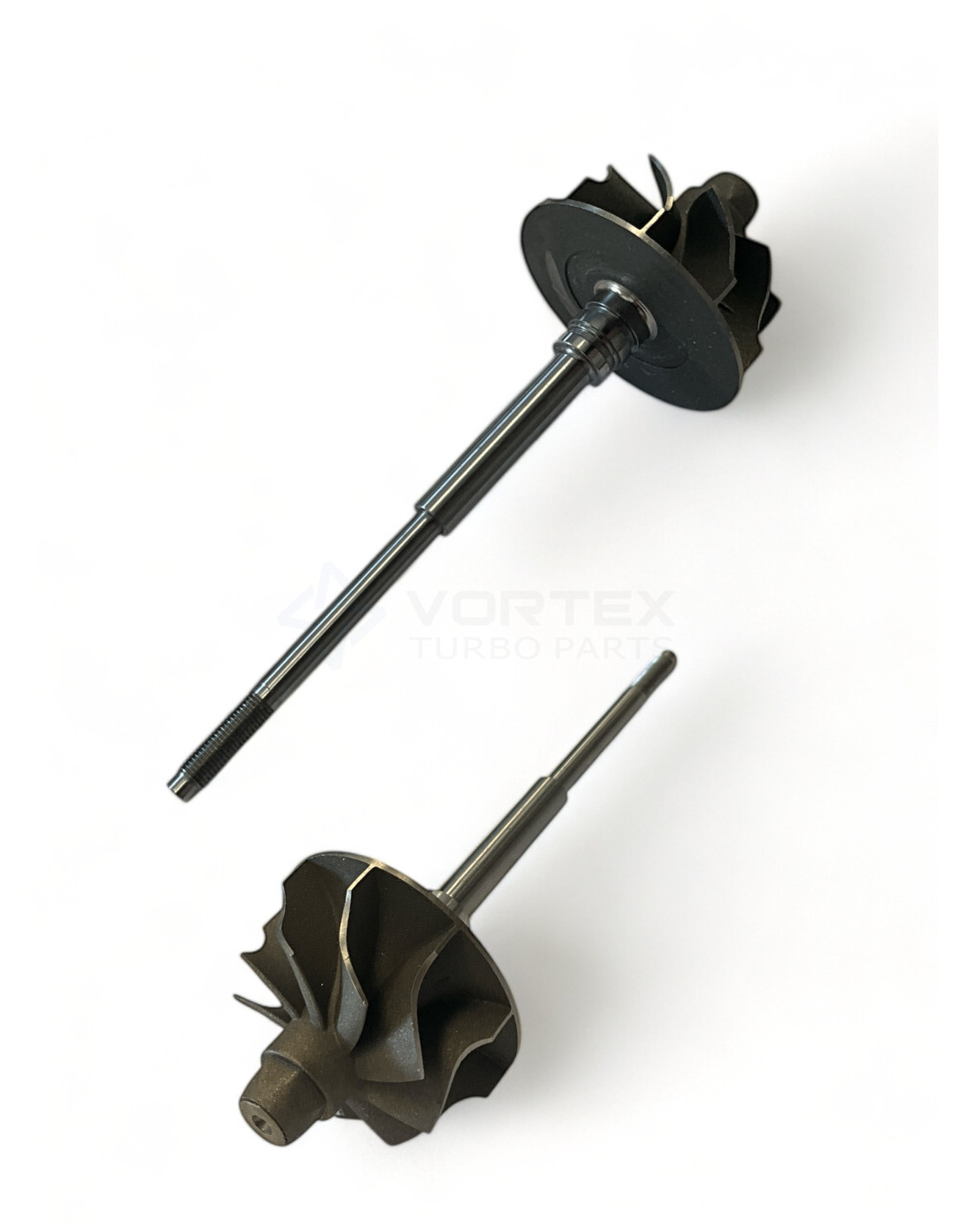

Shaft and wheel SW-B026
Shaft and wheel SW-B026
Shaft and wheel SW-B026
Shaft and wheel SW-B026

Shaft and wheel SW-B026

SW-B026
New
In Stock (17 Items)
€40.90
Tax included

Shaft and wheel SW-B026 for turbos 16399700000, 16399700003, 16399700005, 16399700006, 16399700015, 16399700018, 16399700020, 16399700022, 16399700032, 16399700038.



SW-B026 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-B026

SW-B026 - Compatibility table

Shaft and wheel SW-B026 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
BorgWarnerB0116399700000--
BorgWarnerB0116399700003--
BorgWarnerB0116399700005--
BorgWarnerB0116399700006--
BorgWarnerB0116399700015--
BorgWarnerB0116399700018--
BorgWarnerB0116399700020--
BorgWarnerB0116399700022--
BorgWarnerB0116399700032--
BorgWarnerB0116399700038--
BorgWarnerB0116399700042--
BorgWarnerKP3954399700132--
BorgWarnerKP3954399700134--
BorgWarnerKP3954399700146--
BorgWarnerKP3954399700150--
BorgWarnerKP3954399700151--

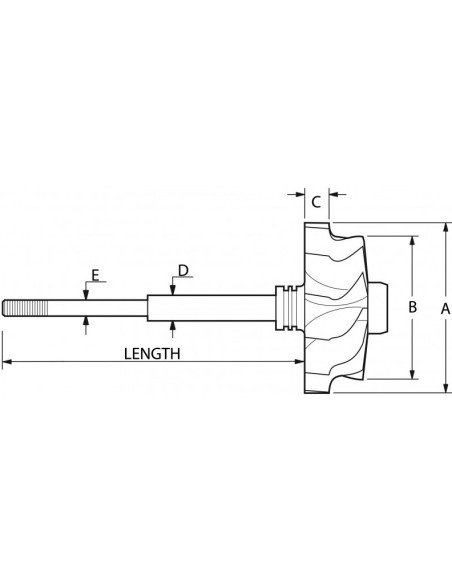

SW-B026 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 38.5

Exducer Diameter B (Exducer Diameter B): 32.2

Tip Height C (Tip Height C): 6.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.1

Shaft Length (mm) (Shaft Length (mm)): 84.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Single

Model (Model): B01

16399700000, 16399700003, 16399700005, 16399700006, 16399700015, 16399700018, 16399700020, 16399700022, 16399700032, 16399700038, 16399700042, 54399700132, 54399700134, 54399700146, 54399700150, 54399700151
